LILYGO T-QT Pro 0.85-inch WiFi IoT display adds support for battery charging

LILYGO T-QT Pro is an ESP32-S3 WiFi and BLE IoT board with a 0.85-inch color display, 4MB flash, 2MB PSRAM, a USB-C port, a few GPIOs, and support for LiPo battery with charging.

It is an upgrade to the ESP32-S3-based LILYGO T-QT V1.1 board that also supports LiPo battery power but lacks a charging circuit, so you had to remove the battery and charge it manually each time. The T-QT Pro adds a charging circuit and switches from an ESP32-S3 with an 8MB flash design to one using ESP32-S3FN4R2 with 4MB flash and 2MB PSRAM.

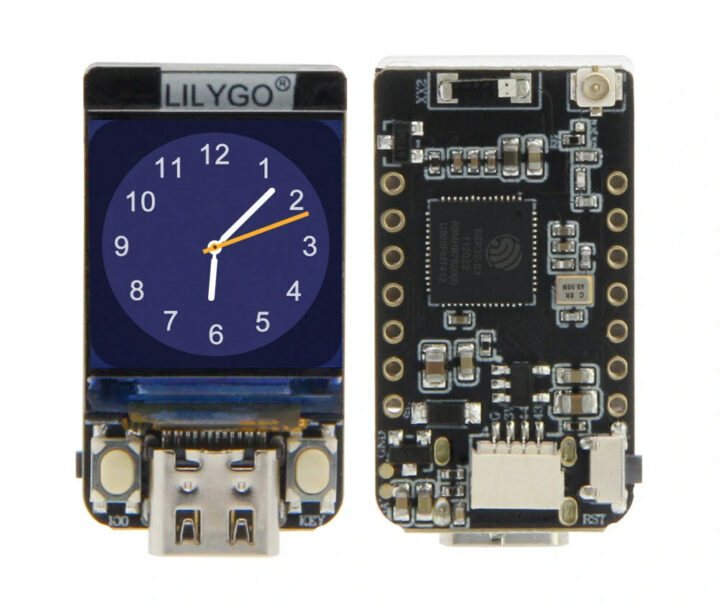

LilyGO T-QT Pro ESP32-S3 board

LilyGO T-QT Pro specifications:

  • Wireless MCU – Espressif Systems ESP32-S3FN4R2 dual-core Tensilica LX7 @ up to 240 MHz with vector instructions for AI acceleration, 512KB RAM, 4MB flash, 2MB PSRAM, wireless connectivity
  • Connectivity via ESP32-S3
    • 2.4 GHz 802.11 b/g/n Wi-Fi 4 with 40 MHz bandwidth support
    • Bluetooth Low Energy (BLE) 5.0 connectivity with long-range support, up to 2Mbps data rate.
    • Ceramic antnna and u.FL connector for external antenna
  • Display – 0.85-inch 128×128 IPS LCD with 262K colors based on GC9107 4-wire SPI display controller
  • USB – 1x USB Type-C port for power and programming
  • Expansion
    • 2x 7-pin headers with up to 11x GPIO, FSPI (fast SPI), ADC,  Sub SPI bus, 5V, 3.3V, and GND
    • 4-pin STEMMA QT/Qwicc-compatible connector with 3.3V, GND, and 2x GPIOs
  • Misc – Reset button, 2x user buttons
  • Power Supply
    • 5V via USB port
    • 2x pads for battery with charging circuit
  • Dimensions – 33 x 18 x 14mm

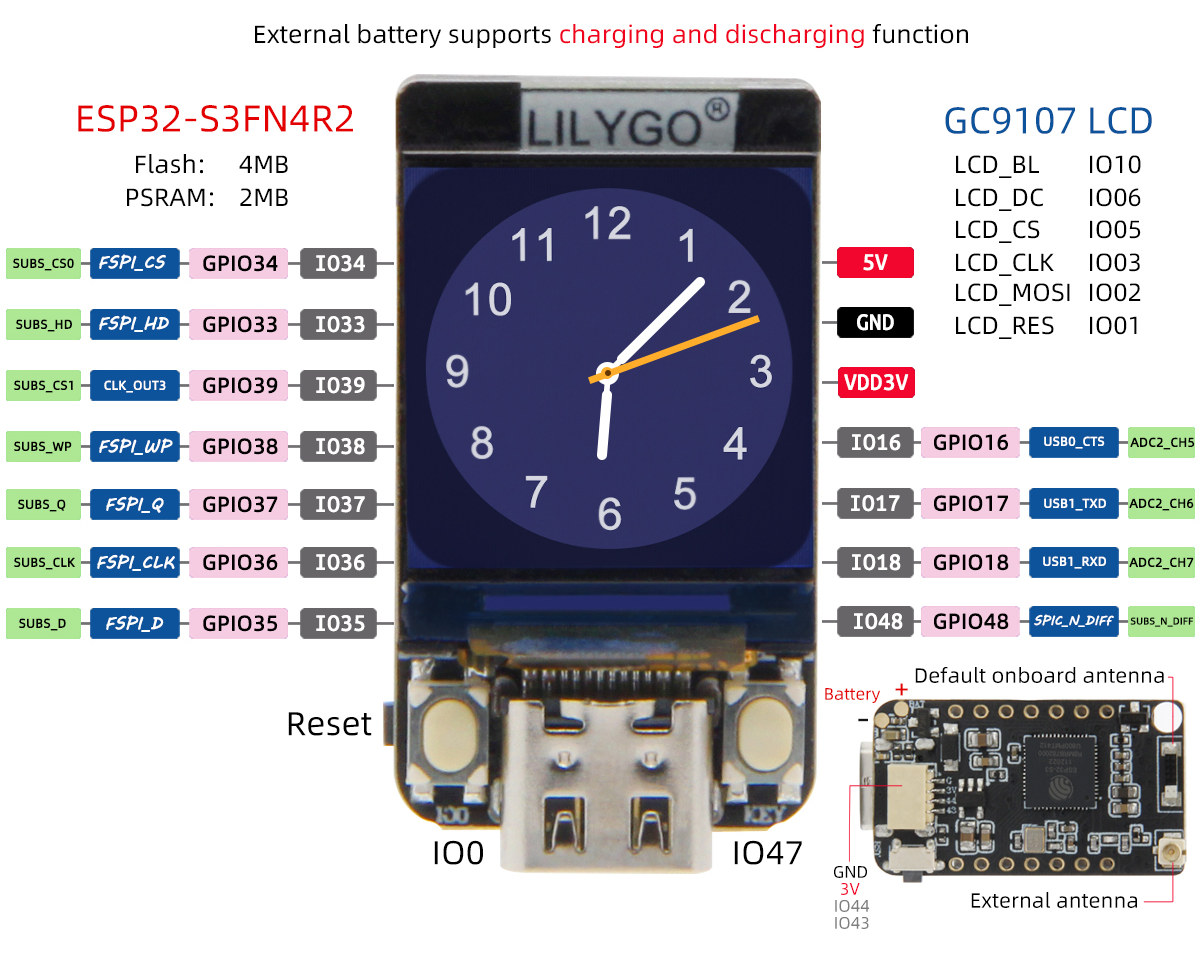

T-QT Pro pinout diagram
Pinout diagram

The company says the board is programmable with the Arduino IDE, PlatformIO, or the ESP-IDF framework, and provides the same instructions, PDF schematics, and code samples for the LCD and deep sleep modes as the T-QT V1.1 board on Github. That also means we don’t have the schematics for the Pro board, so it’s unclear how the charging circuit has been implemented. The schematics were shared along with a block diagram with the FCC for certification, but neither are public, and all we have is a user manual, a test report, and a few extra photos.

I came across the LILYGO T-QT Pro board on Banggood where it is sold for $19.99 with two 7-pin headers, a “power cord” for the battery, and a 2-pin PH2.0 female cable. It is also sold on LILYGO Aliexpress store for $13.24 as the “T-QT ESP32-S3FN4R2”, and you can even get an enclosure for around 80 cents more. I can also see another T-QT Pro variant with ESP32-S3FN8 with 8MB flash, but no PSRAM that’s a little bit cheaper and also supports battery charging.

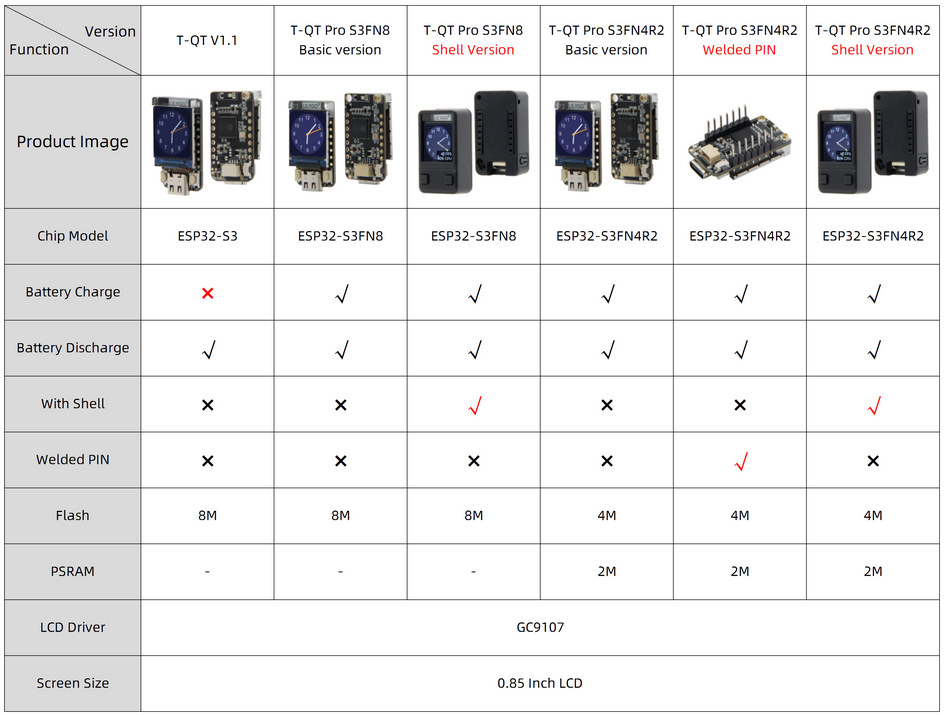

LILYGO T-QT board variants

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Rob
Rob
1 year ago

Who faked the LCD clock display? On a 128×128 pixel screen its going to look badly stepped! That image is over 800 pixels with antialiasing!

Borislav Lovosevic
Borislav Lovosevic
1 year ago

Here is how it looks on the real display

Snimka zaslona_20230127_140648.png
none
none
1 year ago

The little enclosure is cute (reminds me of m5stack) but at $20 for the board I think I’ll stay with the Adafruit ESP-32S2 board that has PSRAM, CircuitPython, and a bigger display, at $25.

Mark Birss
Mark Birss
1 year ago

The new M5Stack ATOMS3 is much smaller

comment image?v=1671770458

Martin Harnevie
Martin Harnevie
1 year ago

Not any mention of I2S ports. I guess it’s got 2 like the others, but not shown or verified.

Mariano Goni
9 months ago

You say adds support for battery charging, but when lipo is there and you plug in the USB, it just turns on the board and no charging happens. Is there any special thing we should to be able to charge via USB port?
