SONOFF MINIR4 review – A Tiny WiFi Smart Switch tested with eWelink app/web, and R5 controller

In this post, we’ll review the SONOFF Mini Extreme, also known as MINIR4, WiFi smart switch based on ESP32 wireless MCU by installing it into a wall-mounted light switch box and controlling it with both the eWelink mobile app for Android and the SONOFF R5 scene controller.

SONOFF MINIR4 Installation

We’ve already gone through the specifications, unboxing, and teardown in the announcement, so I’ll get straight to the installation part. Note this review was done with a light switch “box” (about 11x6cm) in Thailand, so your mileage may vary.

SONOFF MINIR4 WiFi Smart Switch Review

The first challenge is that contrary to the similarly-sized SONOFF ZBMINI Extreme Zigbee switch, the MINIR4 WiFi switch requires a neutral cable, and most lights in Thailand are wired without a neutral wire, so I had to get the neutral wire from the outlet switch box underneath.

SONOFF MINIR4 wiring

When I call those “boxes” there are really holes in the wall here… Wiring is quite straightforward as I just had to connect the light switch to S1 and S2 using short wires, insert the live wire that was previously going to the light switch to Lin, the wire going out of the switch to Lout, and finally the Neutral wire to one of the N ports on the MINIR4.

SONOFF MINIR4 wiring ThailandI did not use the N port on the left because the light is already connected to the Neutral wire from somewhere else in the house. The SONOFF MINIR4 switch fits in the “box” but it’s still quite tight. It’s still neater and/or easier than connecting a WiFi switch close to the light on the ceiling.

SONOFF MINI Extreme Gangbox Thailand

Remember that we are dealing with 110V or 220V here and for your and/or your family’s safety, if you don’t feel comfortable/knowledgeable enough to perform the installation yourself, get a qualified electrician to do it for you, and in some countries, it may even be a legal requirement.

Once the installation is complete, there’s no visual difference between our old “dumb” light switch and our new smart switch.

Smart light switch

I could still turn the light on and off normally, even before installing any app, so all is good and the installation looks successful. The SONOFF MINIR4 introduces a small delay, however, but something well below 500ms.

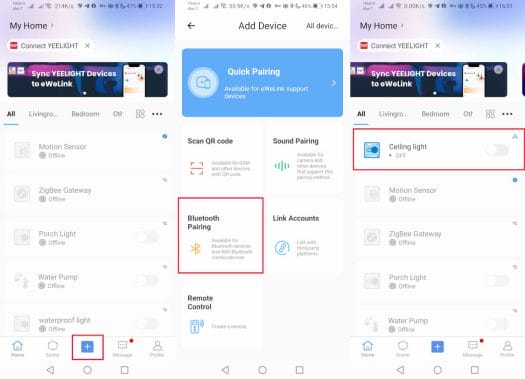

I’ve reviewed SONOFF devices with eWelink Android app several times already, and the app is fairly straightforward to use so I won’t go into the details of adding MINIR4 to eWelink, but the important points are that you should select Bluetooth pairing, select a 2.4 GHz WiFi access point, input its password, and give the device a name. I went with “Ceiling light”.

SONOFF MINI Extreme MINIR4 Bluetooth Pairing

From there, I could easily switch on and off the lights. Note that for improved security and privacy, you’ll probably want to set up a Guest WiFi network/SSID in your router reserved for all your IoT/Smart Home devices, and separated from your computers and NAS which may store more valuable data. So if the company is hacked or you don’t trust their/your government not to spy on you, they’ll only have (easy) access to the guest network.

SONOFF MINI Extreme eWelink Schedule Timer

If we tap on the device name we have a few more options with Schedule, Timer, and Loop Timer, all of which work as expected.

eWelink Loop Timer

It’s important to select the “Alternate” Loop method for the loop timer mode, or it will just repeat ON or OFF all the time without ever switching to ON or OFF. With the Alternate method, you’ll be able to select timers for ON and OFF. I’m still not sure what use cases this is useful for, but I must not be thinking hard enough 🙂

SONOFF MINIR4 Device Settings

If we tap the … icon on the top right corner, we’ll have access to the Device Settings with some information, firmware updates, and support for third-party platforms such as Amazon Alexa, Google Home, IFTT, Alice, and other Chinese cloud services.

eWelink Switch Mode Detach Relay

Other useful configuration options include the Switch Mode to select the behavior of the light switch from Pulse mode, Edge mode (default), or Following mode, each explained in the app and the screenshot above. There’s also the Detached Relay mode which completely ignores/disconnects the physical light switch, so the switch is fully controlled by the app or other “Smart” methods. It can potentially be useful in public places.

A somewhat new feature that I had never tried is eWelink Web which allows you to manage and control your SONFF device from a web browser. You’ll need to go to web.ewelink.cc and enter the eWelink credentials you’ve already used in the eWelink mobile app.

eWelink Web

That’s a premium feature that requires the paid eWelink Advanced plan, but we can try it for free for 7 days.

Ewelink Web Please Upgrade to Advanced Plan

The free trial requires you to answer a few questions about your home automation preferences, and the approval should be immediate. After logging in, I could see and turn on/off my “Ceiling light”, and other SONOFF devices I used in previous reviews are also there, and currently detected as offline.

eWelink Web remote control link

The interface also allows me to change the name, disable/enable the network indicator on the MINIR4, set up inching mode, specify the power state, and upgrade the firmware. I did the latter, and it worked well.

eWelink Web device information

You can also check the full device list with the device ID, firmware version, online status, and whether you want to show them in the eWelink Web dashboard.

eWelink Web Device List

Finally, it’s possible to define scenes if you have other sensors like in the eWelink mobile app.

SONOFF R5 scene controller

Controlling the light with your smartphone is OK, and if you don’t want to open your smartphone and the app (it typically takes me 20 to 25 seconds to turn off the light from the time I pick up the phone) before turning on or off the light, and don’t use voice assistants, the SONOFF R5 scene controller is nice a MINIR4 companion as it provides a battery-powered switch that can be operated from anywhere with the Bluetooth LE range.

So I asked for one or two SONOFF R5 devices for review and eventually got one.

SONOFF SwitchMan R5

The SONOFF R5 6-key scene controller comes with a few stickers for the buttons, a user manual, two screws, and two 3M adhesive tape for mounting.

SONOFF R5 6-key controller

The back cover is attached to the main unit through magnets and can easily be removed in order to take out the paper preventing the draining of the CR2032 batteries during storage and/or transport.

SONOFF R5 controller back cover

A teardown confirms the R5 controller is indeed powered by two CR2032 coin-cell batteries,

SONOFF R5 teardown

and the main chip is marked as AK803A-S1, which appears to be a “BLE iBeacon” chip from AllLink.

AK803A-S1

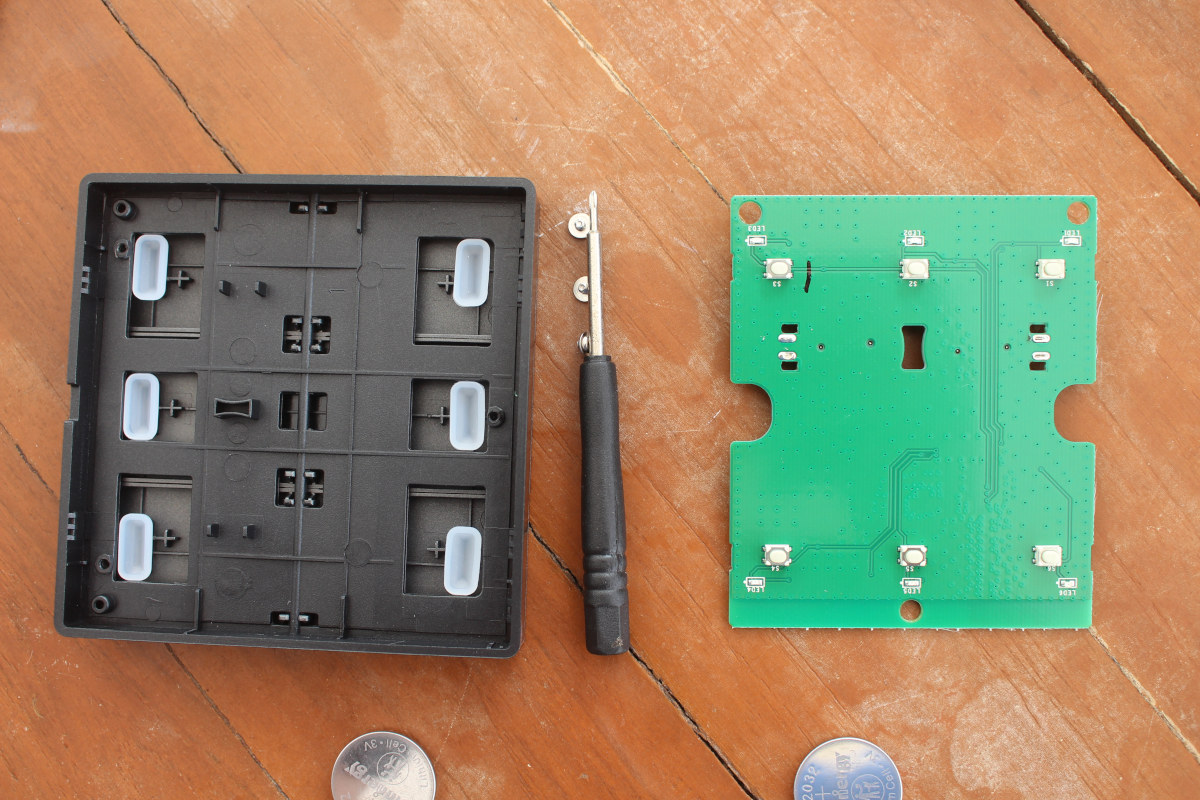

The other side of the board has nothing except for the buttons.

SONOFF SwitchMan R5 scene controller buttons

Let’s reassemble the device to install it. I first thought it might be able to attach the R5 to a fridge, but the built-in magnets are not powerful enough. I used some magnets with screws scavenged from an old ceiling LED light, but it works, but it was not practical to use. Anyway, I wanted to stick the R5 to my bedside cabinet, so I used the included 3M adhesive tapes…

R5 3M adhesive tape

… and added some of the stickers to channels 1 and 2, because installing the SONOFF R5 SwitchMan to my bedside cabinet.

SONOFF R5 SwitchMan review

With the hardware installation out of the way, I went to the eWelink app to access the Device Settings and tapped on the eWelink-Remote sub-devices section to add the R5 controller.

eWelink-Remote add sub device



That was very easy. I then went to the Scene section in the eWelink app to add a scene to turn on the ceiling light when Channel 1 (top left button) is pressed, and another scene to turn it off when Channel 2 (the button on the right of Channel 1) is pressed.

SONOFF R5 scene MINIR4 WiFi switch

My lazy self was then very happy, as I could just control the ceiling light from the bed without having to get up or enter into tough, and potentially lengthy negotiations with the person lying next to me 🙂

One important point is that the buttons support short presses, long presses, and double press events, so if you press a button for too long, or press it multiple times, it will not detect a short press event. It’s also possible to assign a single button for this task, using the alternate mode to turn on the light when it is off and turn it off when it is on. We could also assign other scenes to the R5 controller to turn on the light after 8 hours as an alarm clock, control additional MINIR4 WiFi switches, or other SONOFF devices with eWelink Remote support.

Conclusion

The SONOFF MINIR4 is a tiny switch that’s fairly easy to install and that will fit into most switch boxes. Bear in mind that contrary to the ZBMINIL2, it requires a neutral wire, so that’s something to keep in mind. The SONOFF R5 SwitchMan scene controller is a nice companion to the MINIR4, especially if you have multiple switches installed throughout your house.

I’d like to thank ITEAD for sending samples for review. SONOFF is selling the MINI Extreme (MINIR4) for $9.90 with free shipping for orders over $89, and the R5 scene controller can be added for $12.49. You can also get a 10% discount on your order when using the coupon code CNXSOFTSONOFF.
