Axiomtek AIE110-XNX is an affordable Edge AI Developer Kit based on NVIDIA Jetson Xavier NX

Axiomtek AIE110-XNX Edge AI developer kit provides up to 21 TOPS of accelerated AI computing performance thanks to an NVIDIA Jetson Xavier NX system-on-module with a 6-core NVIDIA Carmel ARM v8.2 64-bit CPU and a 384-core NVIDIA Volta GPU with 48 Tensor Cores.

The new devkit serves as a relatively low-cost cost development kit with no minimum order, instead of getting full-feature embedded computers such as the company’s AIE900-XNX Edge AI system also based on the same Jetson Xavier NX module.

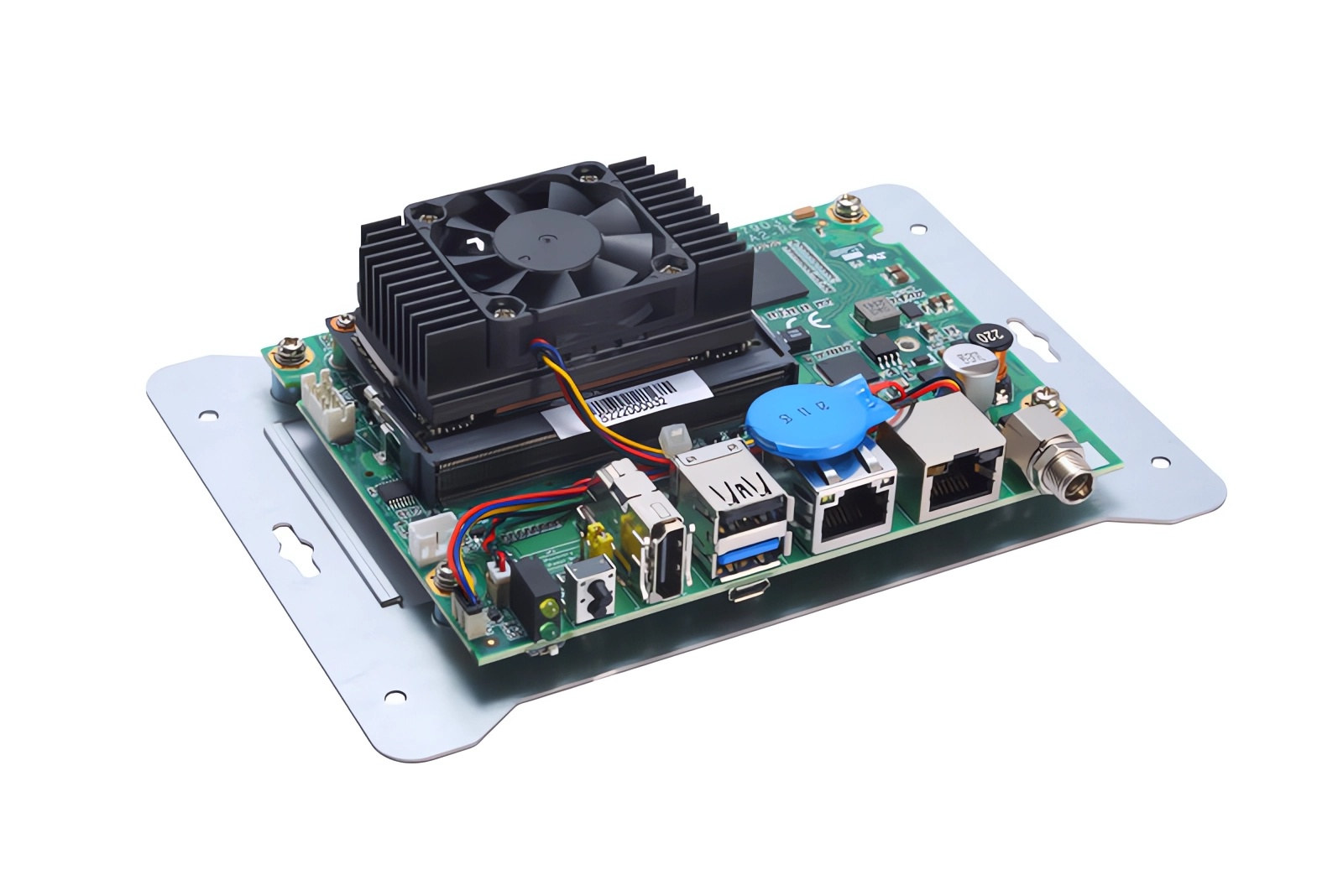

Axiomtek AIE110-XNX devkitAxiomtek AIE110-XNX specifications:

  • NVIDIA Jetson Xavier NX system-on-module with
    • CPU – 6-core NVIDIA Carmel Armv8.2 64-bit CPU with 6 MB L2 + 4 MB L3 cache
    • GPU – 384-core NVIDIA Volta GPU with 48 Tensor Cores
    • AI Accelerator – 2x NVDLA
    • System Memory – 8GB 128-bit LPDDR4x onboard
    • Storage – 16GB eMMC flash
  • Storage – M.2 Key M 2280 with PCIe x4 NVMe SSD slot, microSD slot
  • Video Output – 1x HDMI 2.0 port up to 4Kp60
  • Networking
    • 1x Gigabit Ethernet via Jetson Xavier NX
    • 1x Gigabit Ethernet port with PoE support via Intel i210-IT;  up to 15W PoE
    • Optional Wi-Fi/LTE/Bluetooth/GPS via mPCIe socket + SIM card slot
  • USB – 1x USB 3.2 Gen2 port, 1x USB 2.0 port
  • Expansion
    • DIO pin header
    • 1x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    • 1x M.2 Key M 2280 socket (PCIe x4)
  • Misc
    • Recovery switch, reset button, power button
    • Green LED for power, yellow LED for storage
  • Power Supply
    • 12V DC power input via screw-type barrel jack
    • PoE up to 15W for IP camera
  • Dimensions – 165 x 117 x 37.7 mm
  • Weight – 300 grams
  • Temperature Range – Operating: -10°C to +60°C
  • Relative Humidity – 10% – 95%, non-condensing
  • Vibration – 3 Grms with M.2 drive (5 to 500Hz, X, Y, Z directions)
  • Certifications –  CE, FCC Class A

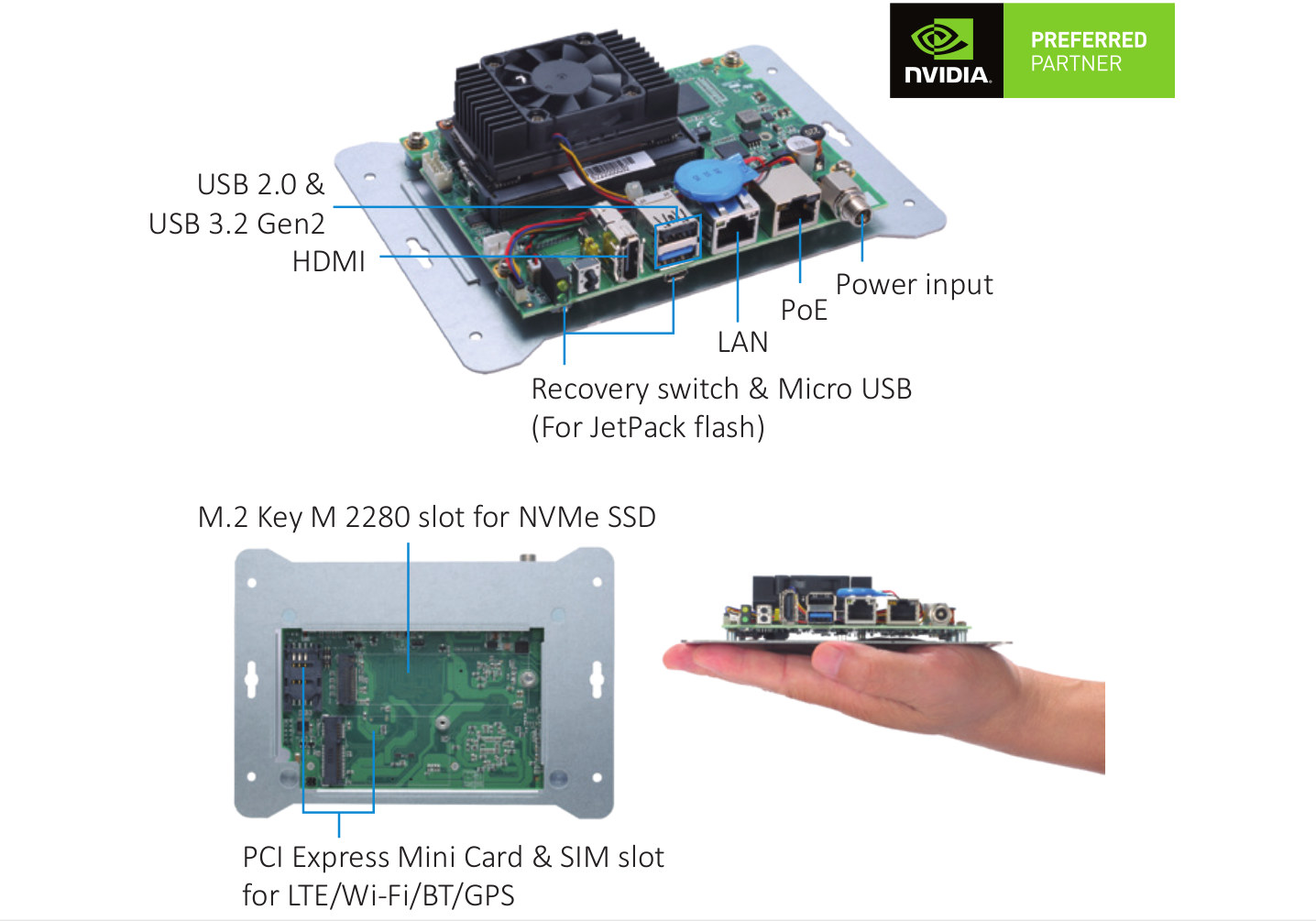

Jetson Xavier NX devkit PoE camera wireless connectivity M2 SSD



As one would expect, the AIE110-XNX supports the same Ubuntu 20.04-based NVIDIA JetPack as used in other NVIDIA Jetson platforms, as well as 24/7 secure remote monitoring, control, and OTA deployment using Allxon device management services.

Axiomtek says the AIE110-XNX development kit is available now to users who want to develop AI solutions on a “friendly budget”, and can be used by makers, learners, and system integrators. It’s just not for sale online, you’d need to contact the company to purchase a sample. More details may be found on the product page.
