49 cents “Black Pill” board clone features AT32 Cortex-M4F microcontroller

The “Black Pill” board with an STM32F4 Cortex-M4F MCU is already cheap, but I’ve just come across a clone going for just 49 cents plus shipping (34 cents to Thailand) based on a 240 MHz AT32 (or AT32F4) Cortex-M4F microcontroller with Arduino support. [Edit: the price looks like a lottery and everybody seems to get a different price, and not related to VAT. See comments section]

Other features are pretty much the same with two 20-pin headers for GPIOs, an SWD header, a USB Type-C port for power and programming, and a few buttons.

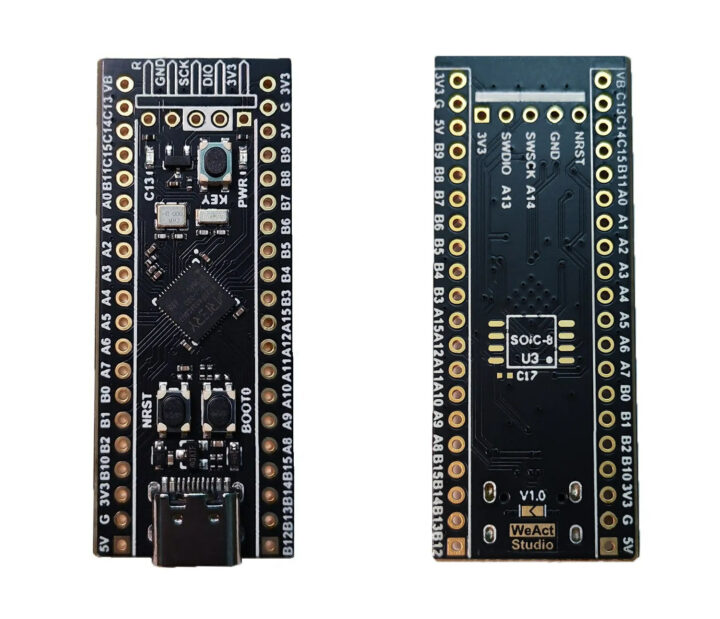

49 cents black bill board AT32 MCU

WeAct “Black Pill” board specifications:

  • Microcontroller – Artery Technology AT32F403ACGU7 Cortex-M4F MCU @ 240MHz with 96 + 128KB RAM, 256KB zero wait-state flash, 768KB non-zero wait-state flash; note: RAM and flash size are somehow configurable by the user, and the numbers listed here are the maximum capacities.
  • Storage – Footprint for SPI flash
  • USB – 1x USB Type-C port for power and programming
  • Debugging – 5x pin SWD header or USB port
  • Expansion – 2x 20-pin headers with power signals, up to 7x U(S)ART, 3x I2C, 4x SPI, 1x USB FS, 10-channel 12-bit ADC, 4x I2S, 12x TIM, 2x CAN, 2-channel DAC
  • Misc
    • Reset (NRST), Boot0, and user buttons
    • 8MHz/25MHz high-speed crystal oscillator
    • 32.768KHz low-speed crystal oscillator
  • Power – 5V via USB, 3.3V-5V power input via headers; 3.3V LDO maximum output current 100mA
  • Dimensions – About 52.4 cm x 20.8 mm

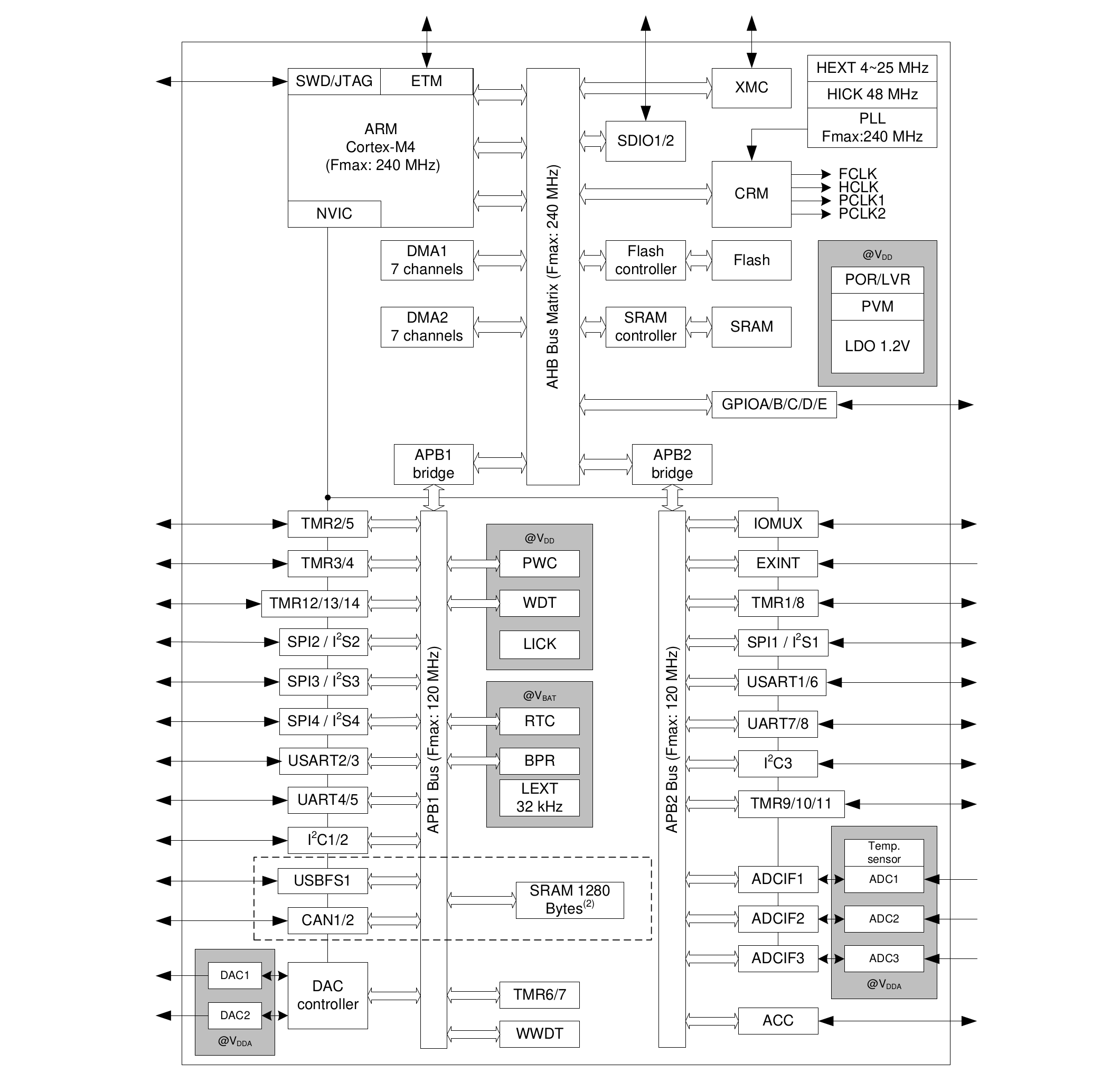

AT32 AT32F403A block diagram
AT32F403A microcontroller block diagram

The AT32 microcontroller can be programmed with the C language using the Keil IDE, and you’ll find resources such as SDK with code samples, a datasheet, a reference manual, and tools on GitHub. Alternatively, WeAct has also developed the ArduinoCore-AT32F4 “library” to allow users to easily program AT32F4 boards with the Arduino IDE, and you’ll find the code and instructions in a separate repository.

The Artery website also has a long list of Windows and Linux tools, application notes, and more details about their AT32F403A Series microcontrollers on the relevant product page.

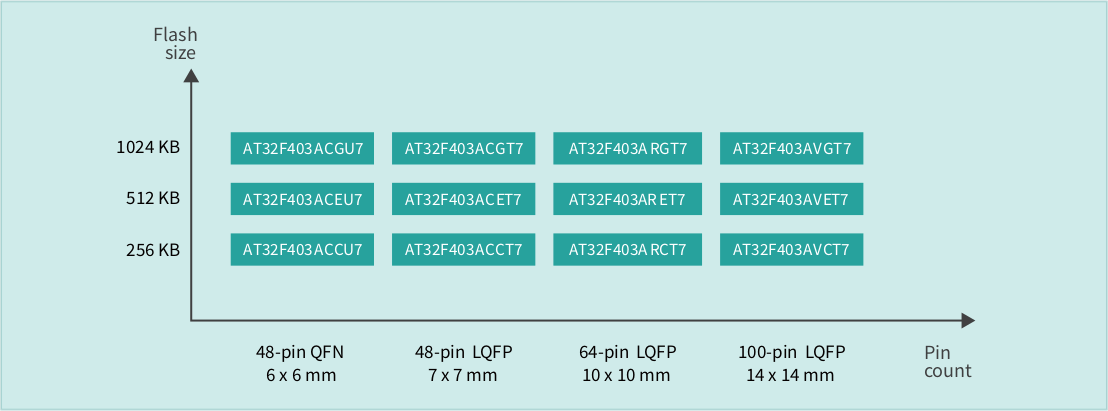

AT32F403A product range
12 different SKUs are available in the AT32F403A family with different packages and flash sizes
