TQ MBa8MP-RAS314 i.MX 8M Plus single board computer targets industrial, medical, and transportation applications

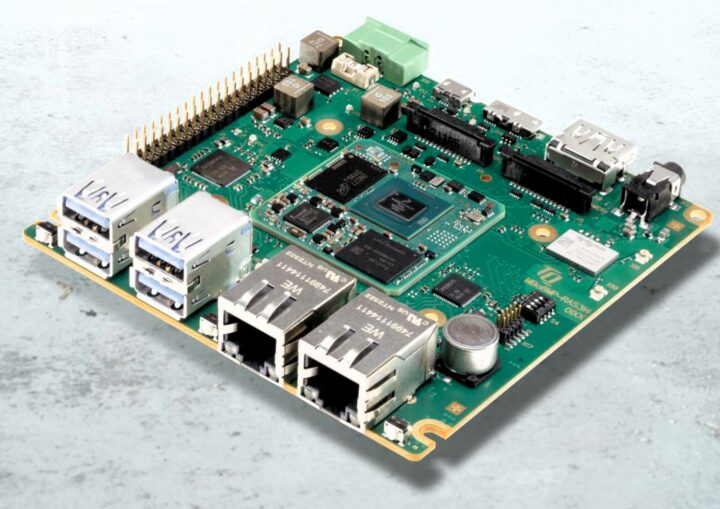

MBa8M-RAS314

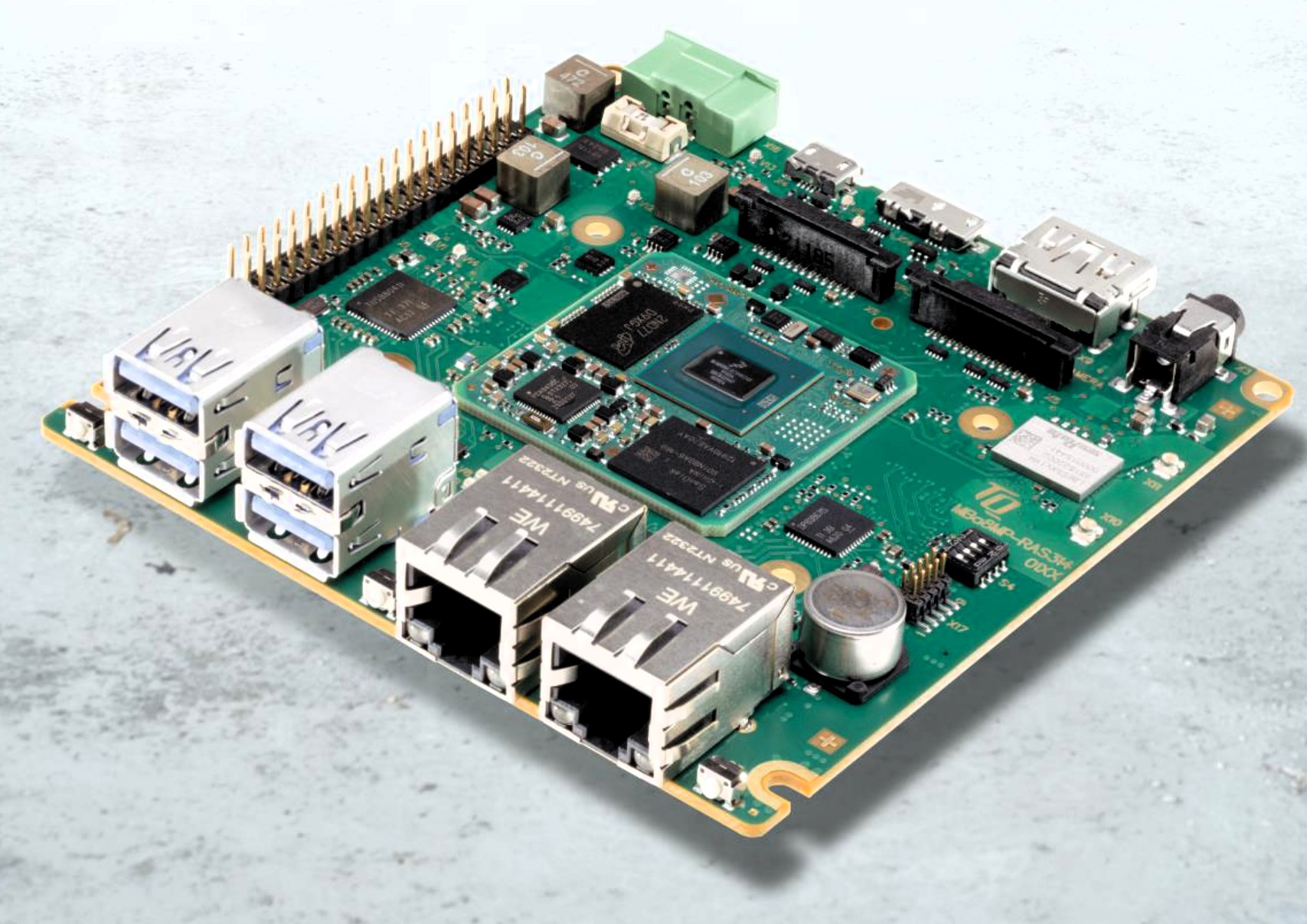

MBa8MP-RAS314 SBC

TQ has recently introduced a single board computer (SBC) called MBa8MP-RAS314. This industrial SBC is built on the TQMa8MPxL embedded module powered by the i.MX 8M Plus Arm Cortex-A53 processor developed by NXP and incorporates all the interfaces of the processor.

The MBa8MP-RAS314 single board computer (SBC) finds many applications across various industries due to its features and versatility. In the medical field, it can be found in equipment for sleep monitoring, HMI eye laser systems, dialysis system control, and patient monitoring. In transportation, it can be used for in-vehicle diagnostics and acts as a gateway. Its capabilities extend to industrial automation, where it contributes to optical inspection systems, soft PLCs, programmable control, machine control, and maintenance systems.

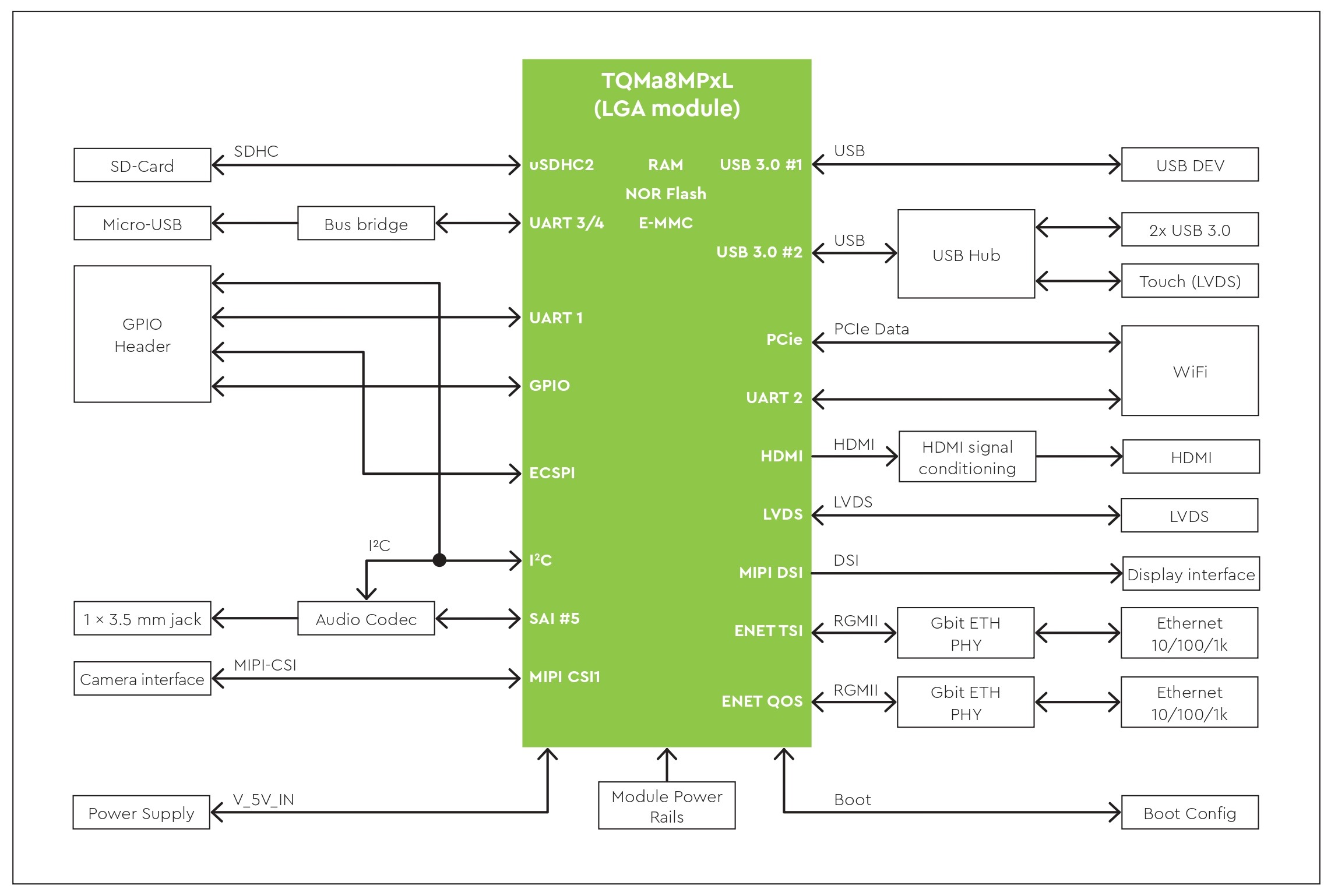

BLOCK DIAGRAM MBA8MP-RAS314
BLOCK DIAGRAM MBA8MP-RAS314

Specifications:

  • CPU/Processor

NXP i.MX 8M Plus Quad 8 ML/AI
NXP i.MX 8M Plus Quad 6 Video
NXP i.MX 8M Plus Quad 4 Lite

  • Memory/Storage

LPDDR4-SDRAM: Up to 8 GB
Quad SPI NOR: Up to 256 MB
eMMC Flash: Up to 256 GB
EEPROM: 0/64-kbit

  • Graphics:

1x HDMI
LCD Interface: 1x MIPI DSI (2 Lanes); 1x LVDS Interface (4 Lanes)
Camera: 1x MIPI CSI2 (2 Lanes)

  • Communication Interfaces

Up to 2x PWM
Up to 28x GPIO
Ethernet: 2x Gbit-Ethernet (1x TSN)
USB: 4x USB 3.0, 1x USB 3.0 device

  • Other Interfaces

Up to 2x I2C
Up to 1x UART
Up to 1x SPI

  • Audio

1x Audio jack for microphone and headphone

  • Basic Data:

Power Supply: 12V
Temperature Range: Standard -25°C…+70°C; Extended -40°C…+70°C
Dimensions: 100 x 100 mm

  • OS Support:

Armbian, Yocto-Linux
Android on request

Explore MBa8MP-RAS314 more on the product page. Currently, pricing is not available but one can add it to their wishlist, and you can also order a starter kit. The starter kit is an evaluation kit based on TQMa8MPxL, which is based on the i.MX 8M Plus processor an Arm® Cortex®-A53 from NXP. The integrated graphics controller with GPU and hardware acceleration for video encoding and decoding supports applications with high requirements for displaying complex graphics. You can learn more about the SBC and its various details on the TQ support page.

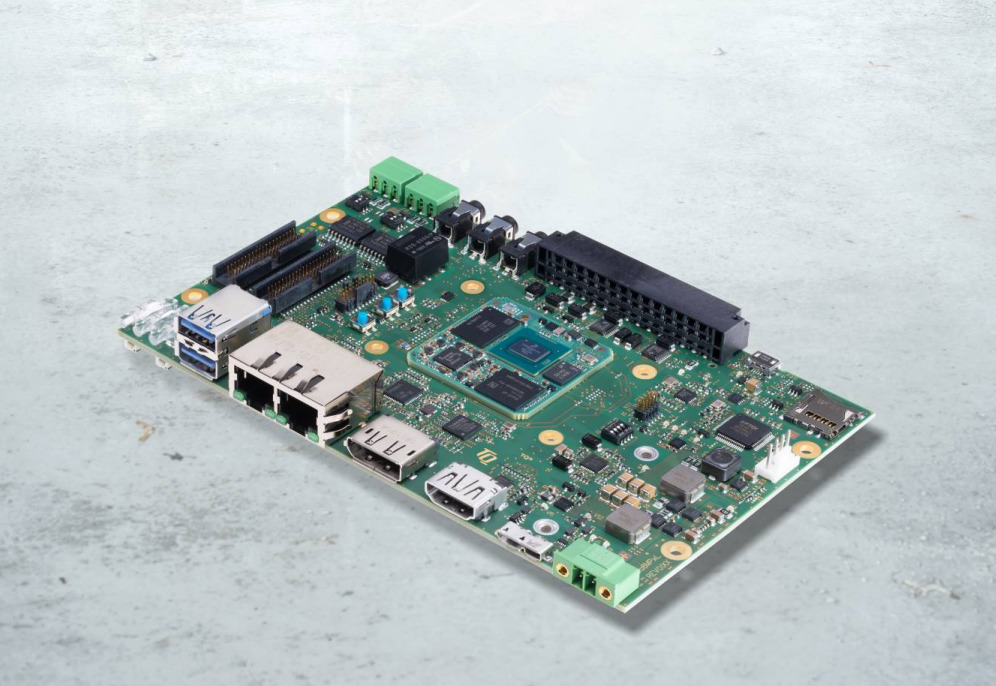

Embedded Starterkit STKa8MPxL
Embedded Starterkit STKa8MPxL
