ASRock SBC-262M-WT 3.5-inch motherboard features up to Intel Atom X7433RE Amston Lake processor

ASRock Industrial SBC-262M-WT is a 3.5-inch SBC motherboard powered by the latest Intel Atom x7433RE quad-core Amston Lake embedded processor with support for up to 48GB DDR5-4800 memory, triple 4K display outputs, two Ethernet ports, including one with 2.5Gbps Ethernet and Intel TSN/TCC.

The motherboard also takes SATA 3.0 and M.2 Key M NVMe storage, offers multiple USB interfaces, supports WiFi and/or  4G LTE or 5G cellular connectivity via M.2 modules and SIM card socket, and provides industrial features such as a wide -40 to 85°C operating temperature range and a wide 9V to 36V DC voltage input range that make it suitable for smart retail, smart cities, and embedded industrial environments.

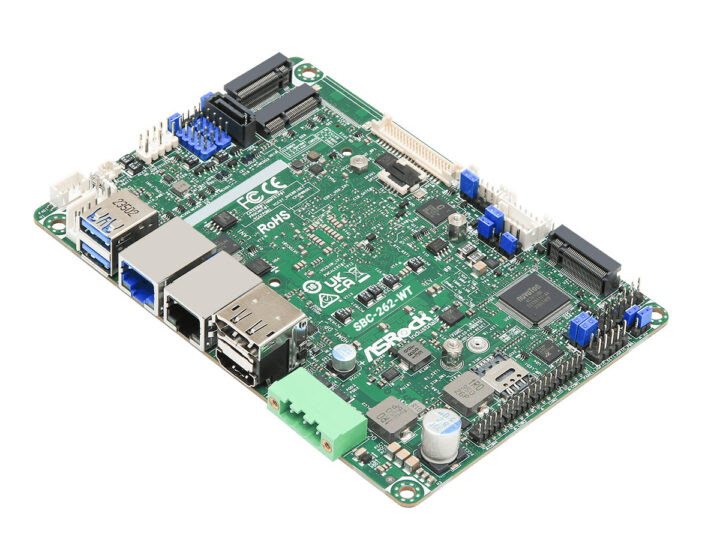

Amston Lake 3.5-inch motherboard

ASRock Industrial SBC-262M-WT 3.5-inch motherboard specifications:

  • SoC – Intel Amston Lake Processors up to Atom X7433RE quad-core processor clocked up to 3.4GHz with Intel UHD Graphics; 9W TDP
  • System Memory – Up to 48GB single-channel DDR5 4800 MHz RAM via 262-pin SO-DIMM socket
  • Storage
    • M.2 (Key M, 2242/2280) PCIe x1 and SATA3 socket for SSD
    • SATA III (6Gb/s) connector
    • 256 Mbit SPI flash for AMI BIOS
  • Video Output
    • HDMI 2.0b up to 4096 x 2160 @ 60Hz
    • DisplayPort 1.4b up to 4096 x 2160 @ 60Hz
    • Dual-channel 24-bit LVDS up to 1920 x 1200 @ 60Hz
    • eDP 1.4b up to 4096×2160 @ 60Hz
    • Support for triple display setups
  • Camera – Optional MIPI Camera header
  • Audio
    • Realtek ALC256 HD, High Definition Audio codec
    • Speaker header
  • Networking
    • 2.5GbE RJ45 port via Intel I226IT controller with TSN support
    • Gigabit Ethernet RJ45 port via Intel I210IT controller
    • Optional WiFi and/or cellular connectivity via M.2 module (See Expansion)
  • USB – 2x USB 3.2 Gen2 Type-A ports;  4x USB 2.0 via 2x 2.54mm pitch headers
  • Serial
    • COM3, COM4 (RS-232)
    • COM1, COM2 (RS-232/422/485)
  • Expansion
    • 1x M.2 (Key E, 2230) socket with PCIe x1, USB 2.0
    • 1x M.2 (Key B, 3042/3052) socket with PCIe x1/USB 3.2/USB2.0 and SIM card slot for 4G/5G cellular
    • 4 x GPI, 4 x GPO
  • Security – Optional TPM 2.0
  • Misc – Watchdog Timer
  • Power Supply
    • 9~36V DC via 3-pin Phoenix connector
    • AT/ATX Supported
      • AT: Directly PWR on as power input ready
      • ATX: Press button to PWR on after power input ready
  • Dimensions – 14.7 x 10.2 x 2.40 cm (3.5-inch SBC)
  • Temperature Range – -40°C to 85° C
  • Humidity – 5% ~ 90%

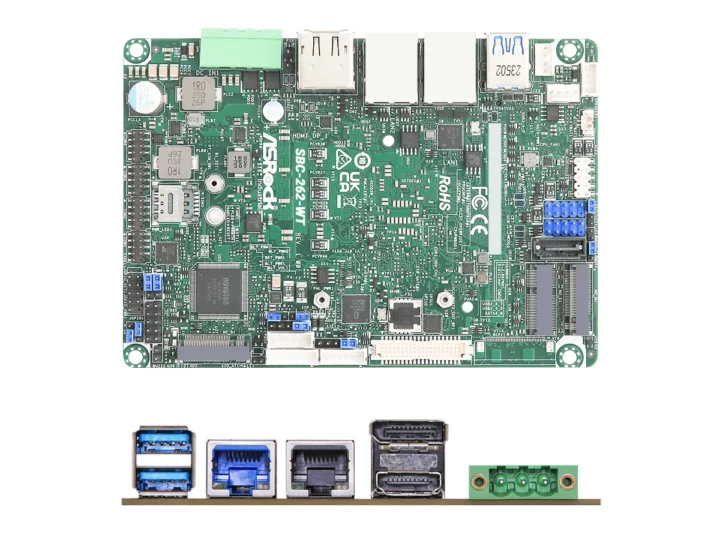

ASRock Industrial SBC-262M-WT

The company did not provide information about OS support, but it’s proably safe to assume Windows and Linux are supported. The email press release I received did not provide pricing and availability information either. More details about the SBC-262M-WT 3.5-inch Amston Lake motherboard may be found on the product page on ASRock Industrial website.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 Comment
oldest
newest
bob
bob
5 months ago

actually… be careful with the OS support assumption. we got some ryzen powered asrock machines for our main computing platform two years ago and made that assumption but faced instability and lack of driver support for the ethernet nic, in linux. we then realised that only windows was officially supported and faced a bunch of pain, basically. i don’t work at the same place anymore but i think my former colleagues are still fighting with these things, in the projects in which they were installed.
