Get Creality CR-Scan Raptor 3D scanner for 10% off for Father’s day 2024 (Sponsored)

Father’s Day is just around the corner, and an ideal gift for a dad may be the Creality CR-Scan Raptor 3D scanner especially since it is now sold for 10% off when using RAPTOR100 discount coupon code.

Creality is better known for its 3D printers, but the company is now also selling a 3D scanner as a perfect companion for a 3D printer, and the Creality CR-SCan Raptor 3D is capable of scanning objects up to 2x2x2m. This advanced 3D scanner supports two scan modes namely 7-line Blue laser and infrared binocular structure light (NIR) depending on the required accuracy, frame rate, and model size as we’ll detail in the specifications below.

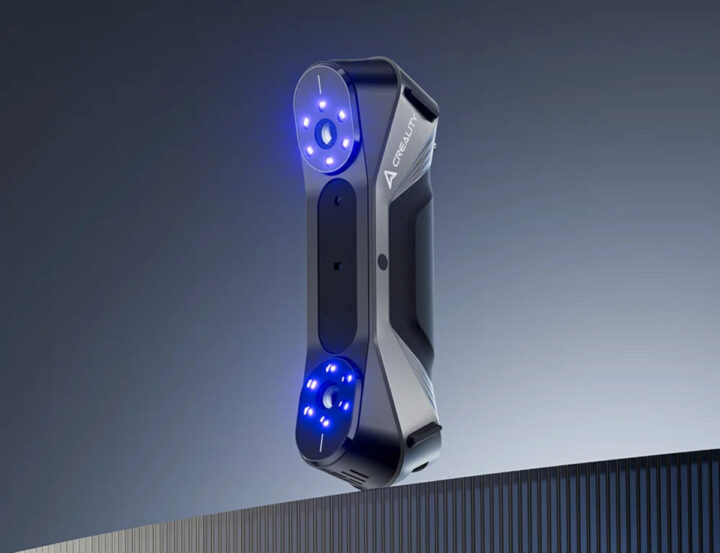

Creality CR-Scan Raptor 3D Scanner

Creality CR-Scan Raptor 3D scanner specifications:

  • Scan modes
    • 7-line Blue laser
      • Accuracy – Up to 0.02mm
      • 3D Resolution – 0.02 – 2mm
      • Scanning Speed – Up to 60fps
      • Single Capture Range – 270x170mm @ 300mm
      • Working Distance – 150 to 400mm
      • Color Mapping support
      • Alignment Modes – Marker
    • NIR (infrared binocular structured light)
      • Accuracy – Up to 0.1mm
      • 3D Resolution – 0.1 – 2mm
      • Scanning Speed – Up to 20fps
      • Single Capture Range – 930x580mm @ 1000mm
      • Working Distance – 170 to 1000mm
      • Color Mapping support
      • Alignment Modes – Marker, geometry, and texture
  • 3D imaging camera resolution – 1920×1200
  • Scannable object size – 5 to 2000mm
  • Color Supplemental Light – 12 white LEDs
  • Marker Recognition Enhancement – 12 blue LEDs
  • Laser Safety – Class I (eye safe)
  • Sensors – Built-in IMU
  • Output Format – OBJ/STL/PLY
  • Host interface – USB 3.0 Type-C port; Note: wireless scanning will be supported with additional accessories in the future
  • Dimensions – 215 x 74 x 50mm
  • Weight – 372 grams

YouTube video player

The portable 3D scanner works with computers and laptops running Windows or macOS. You’ll find instructions to get started with the scanner as well as firmware and Creality Scan software  in a Wiki with detailed documentation.

Users can scan tiny objects as small as 5x5x5mm up to much larger objects measuring up to 2 meters in all directions. It’s especially suitable for the 3D modeling industry, copying and redesigning objects, the production of customized parts for automobile repairs, and other applications that may benefit from 3D scanning. The scanner is suitable for both indoor and outdoor usage.

Creality CR-Scan Raptor sample scans
