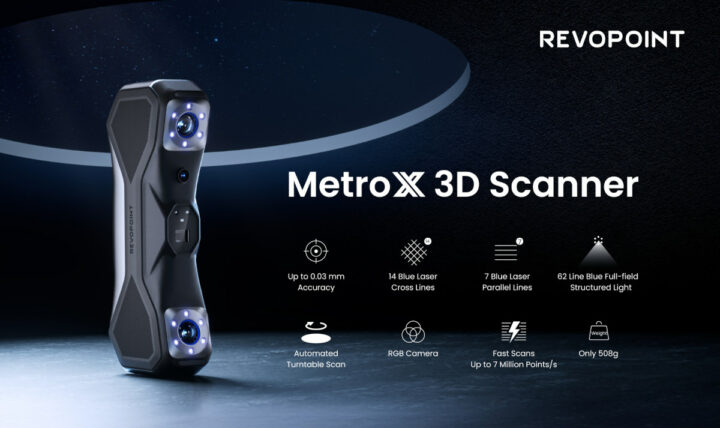

Revopoint MetroX 3D Scanner: Blue Laser Scanning Breakthrough at an Appealing Price! (Sponsored)

As an innovator in 3D scanning technology, Revopoint has unveiled its latest product, the Revopoint MetroX 3D scanner. The Kickstarter campaign started on October 15th and will run until November 14th, offering MetroX at only $689 (MSRP $999) now.

Revopoint MetroX 3D scanner

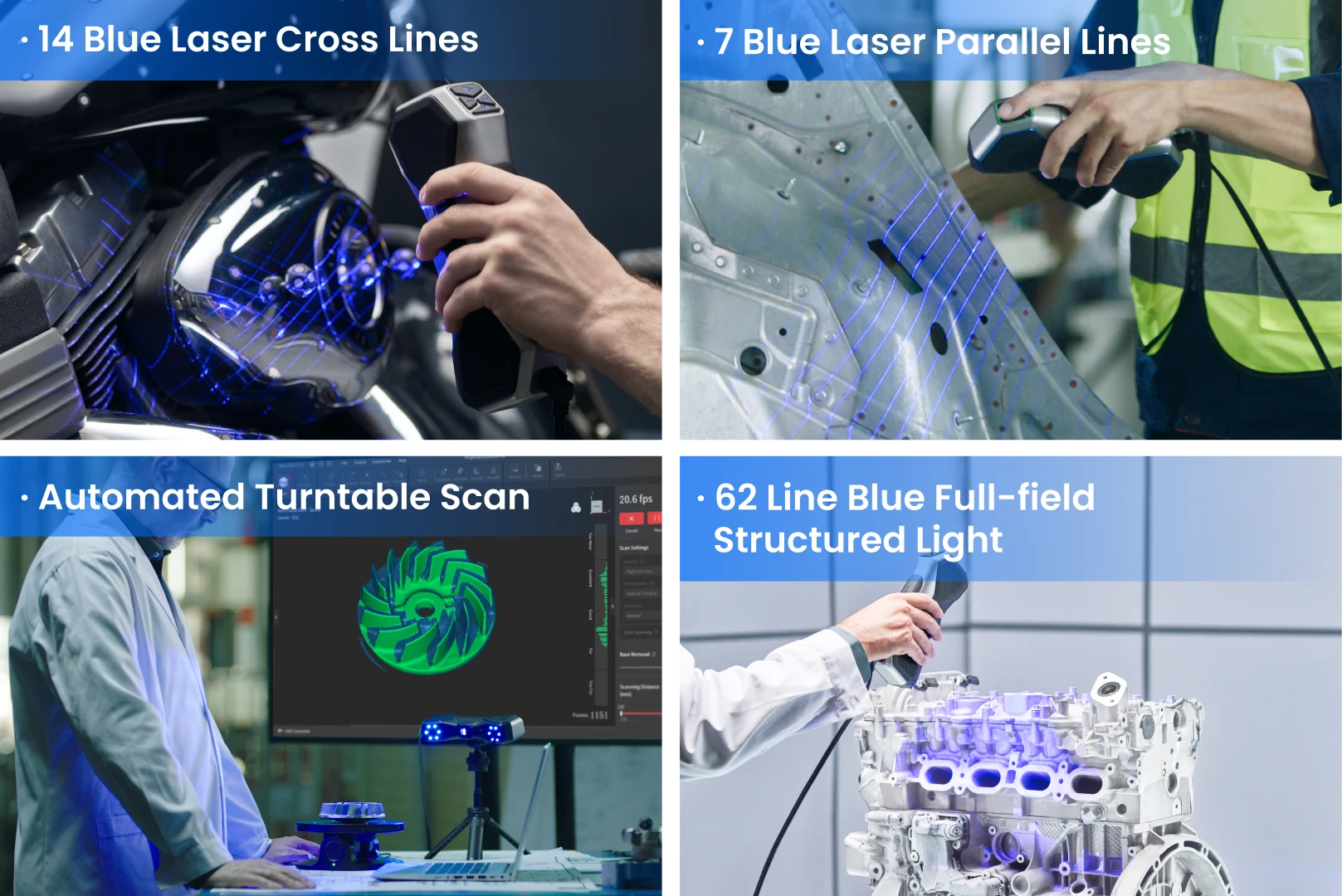

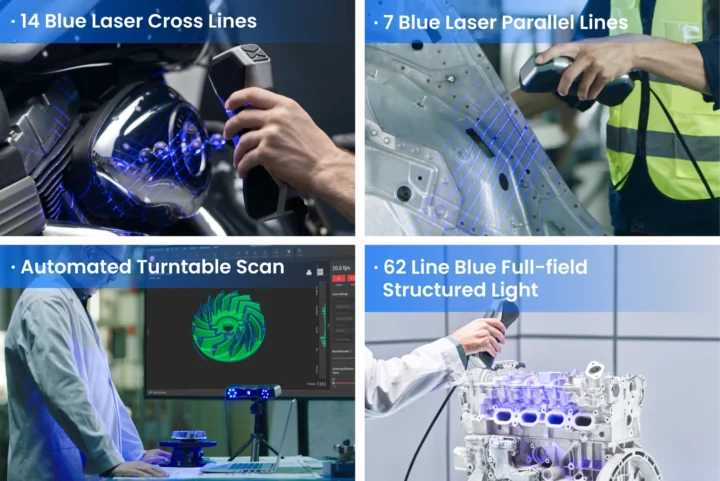

Four Scanning Modes

MetroX is a versatile 3D scanner that combines blue laser and blue structured light technology. Its four scanning modes give users the right tools to optimally capture every aspect of small to medium objects, from flat areas to complex details.

four 3D scanning modes

  • Cross Lines laser: Fourteen crossed lines rapidly scan larger surfaces at speeds of up to 800,000 points/second. No scanning spray is needed for glossy or black areas.
  • Parallel Lines laser: Seven high-powered parallel blue laser lines are projected to accurately capture fine details, edges, and complex surfaces.
  • Full-field structured light: Using blue structured light, it offers high-speed scanning at up to 7 million points/second for efficient point cloud capture. This mode also enables marker-free scanning of feature-rich objects, simplifying the process and reducing setup time.
  • Auto Turntable: The hands-free setup lets users place MetroX on a desk and automatically scan objects using the Dual-axis Turntable and full-field structured light. This mode ensures reliable point cloud and color capture every time.

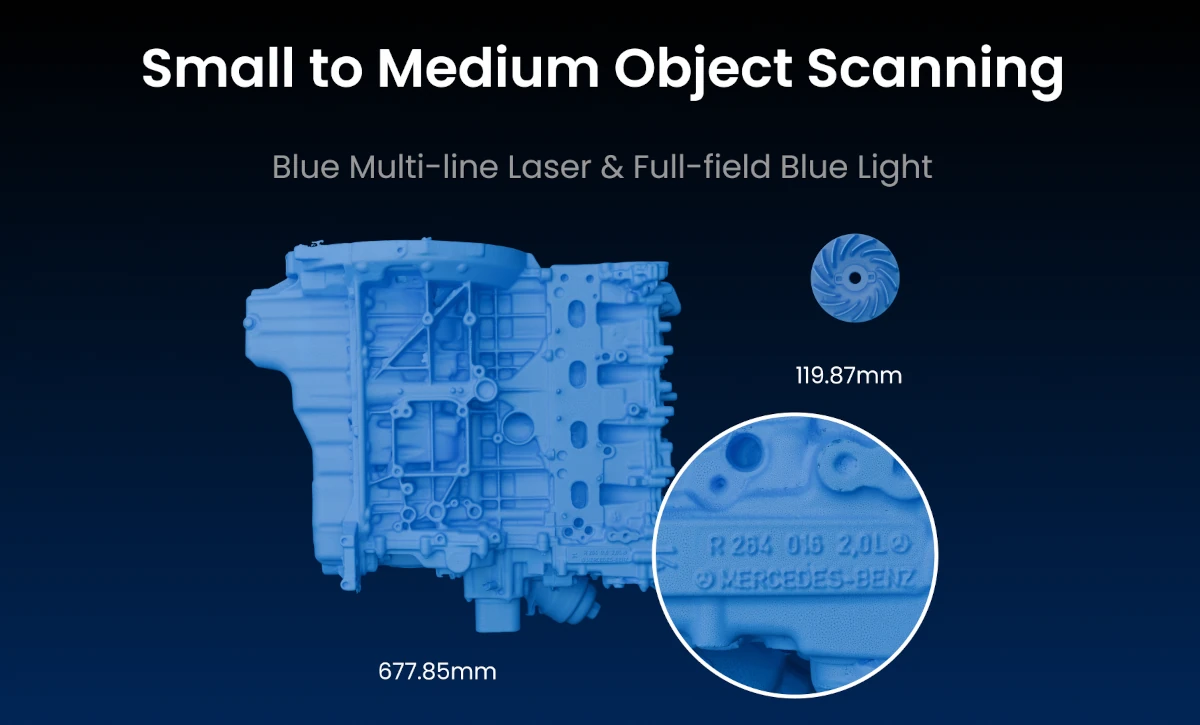

High Precision and Accuracy

MetroX captures feature-rich and featureless objects with remarkable fidelity—up to 0.01 mm precision, 0.03 mm accuracy, and a fused point distance of up to 0.05 mm.

Additionally, the included high-end lithography calibration plate features pattern accuracy of up to 10 μm, making it easy to calibrate the MetroX 3D scanner and maintain reliable accuracy.

Revopoint MetroX 3D Scanner accuracy

Seamless Workflow

The free companion software, Revo Scan, streamlines the scanning and post-processing workflow, covering point cloud fusion, meshing, editing, and import/export options. It can also offer a wide variety of file formats for full compatibility with third-party software like Quicksurface, Geomagic Wrap, and Geomagic Control.

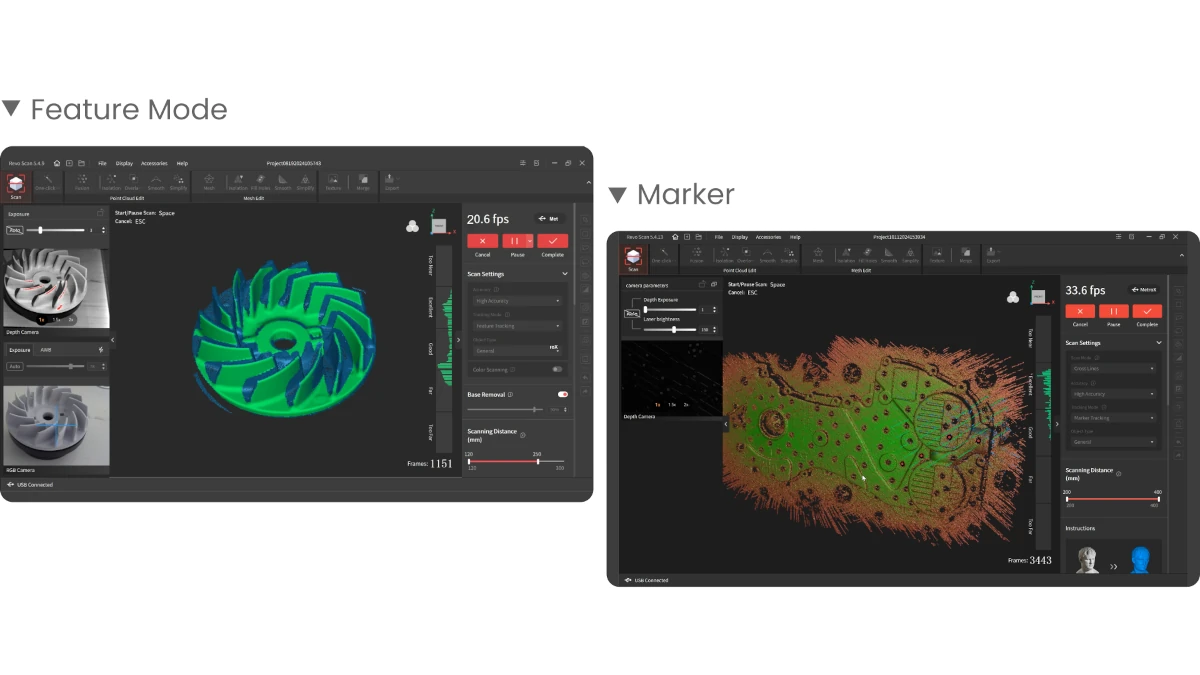

Feature Marker Mode

Professional Solutions

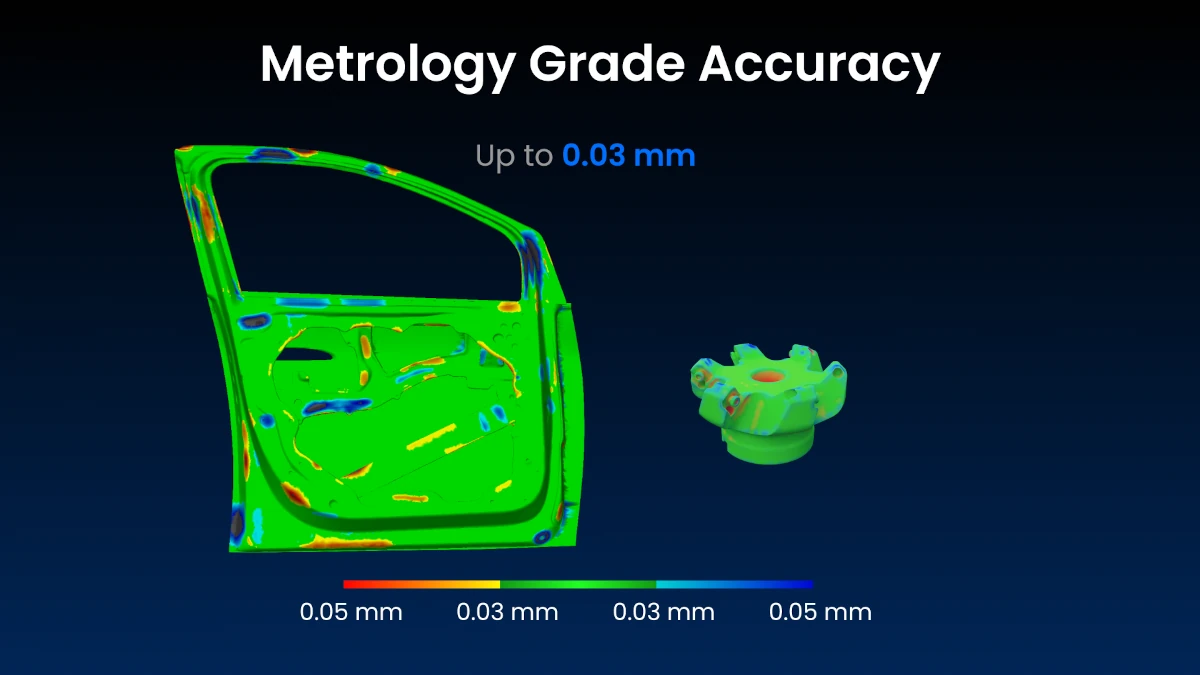

MetroX offers professionals an enhanced reverse engineering, quality control, additive manufacturing, and rapid prototyping 3D modeling experience with metrology-grade accuracy at an appealing price.

3d scanning metrology grade accuracy

What’s in the Box?

The Revopoint MetroX 3D scanner comes in a smart-looking aluminum carry case that houses the scanner and all its accessories, including a Dual-axis Turntable, a tripod, markers, a calibration board, a power adapter, a USB Type-A to Type-C cable, a scanner cradle and other essential tools. Additionally, a quick start guide is included to ensure that users have everything necessary to begin using the scanner promptly.

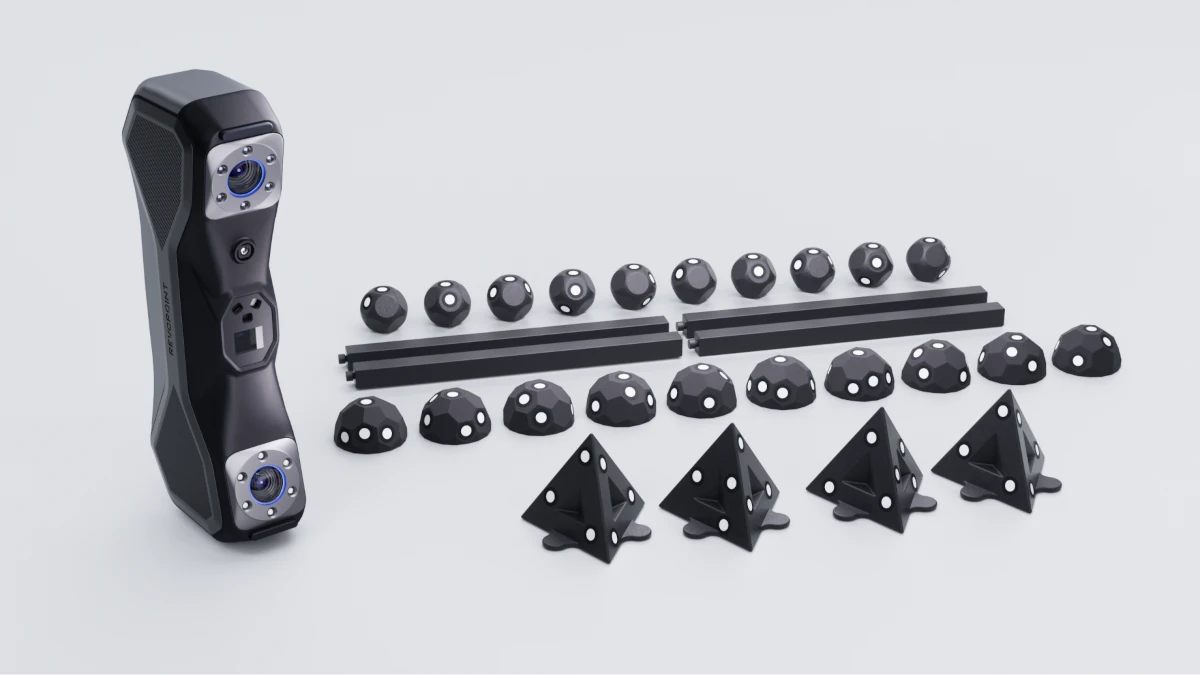

The Advanced Edition of the MetroX 3D scanner comes with the Marker Block Kit, which includes 10 magnetic dome markers, 4 magnetic pyramid markers, 10 magnetic ball markers, 4 magnetic bar markers, and additional 500 markers, all specifically designed to enhance and simplify your scanning process.

shaped markers for 3D scanning

Revopoint MetroX 3D Scanner: Tech Specs

The technical specifications of the Revopoint MetroX 3D scanner are as follows:

Scanning TypeHandheld and Desktop
TechnologyMulti-line laser scan and Full-field structured light scan
Single-frame Precision, up to0.01 mm
Single-frame Accuracy, up to0.03 mm
Fused Point Distance, up to0.05 mm
Volumetric Accuracy0.03 mm + 0.1 mm × L (m). L is the length of the object.
Working Distance200 – 400 mm
Single Capture Area at Nearest Distance160 x 70 mm at 200 mm
Single Capture Area at Furthest Distance320 x 215 mm at 400 mm
Angular Field of View (H × V)43 x 33°
Minimum Scan Volume10 x 10 x 10 mm
Maximum Scan Volume1 x 1 x 1 m
Scanning Speed, up toMulti-line Laser Scan: 800,000 Points/s
Full-field Structured Light Scan: 7,000,000 Points/s
Depth Camera Resolution, up to2 Megapixels
RGB Camera Resolution2 Megapixels
Color ScanningOnly in Auto Turntable Mode
Tracking MethodsFeature, Marker, Global Marker
Outdoor ScanningNo
3D Light Source14 Blue Cross Laser Lines
7 Blue Parallel Laser Lines
62 Line Blue Full-field Structured Light
Fill Lights12 Blue LEDs
CPU4 core ARM, 2.0 GHz
Built in Chip ComputingDepth Map Computing
Buttons4
Output File FormatsPLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D ModelsYes
Connector TypeUSB Type-C
Power RequirementsDC 12V, 3A
Scanner Weight508 g
Dimensions (L x W x H)209 x 88 x 44 mm
Supported AccessoriesDual-axis Turntable, Marker Block Kit
Compatible Operating SystemsWindows 10/11 (64-bit), macOS 11.0 or better
