Zero Devices Z902 Android mini PC based on AllWinner A10

Zero Devices will soon announce a new AllWinner A10 mini PC called Z902 which is similar to the upcoming Rikomagic MK802 II, with 3 USB ports (1 full size USB, 2 micro USB ports), a full HDMI male port, 1GB RAM and 4GB Flash.

I’ve received two somewhat blurry pictures of the PCB.

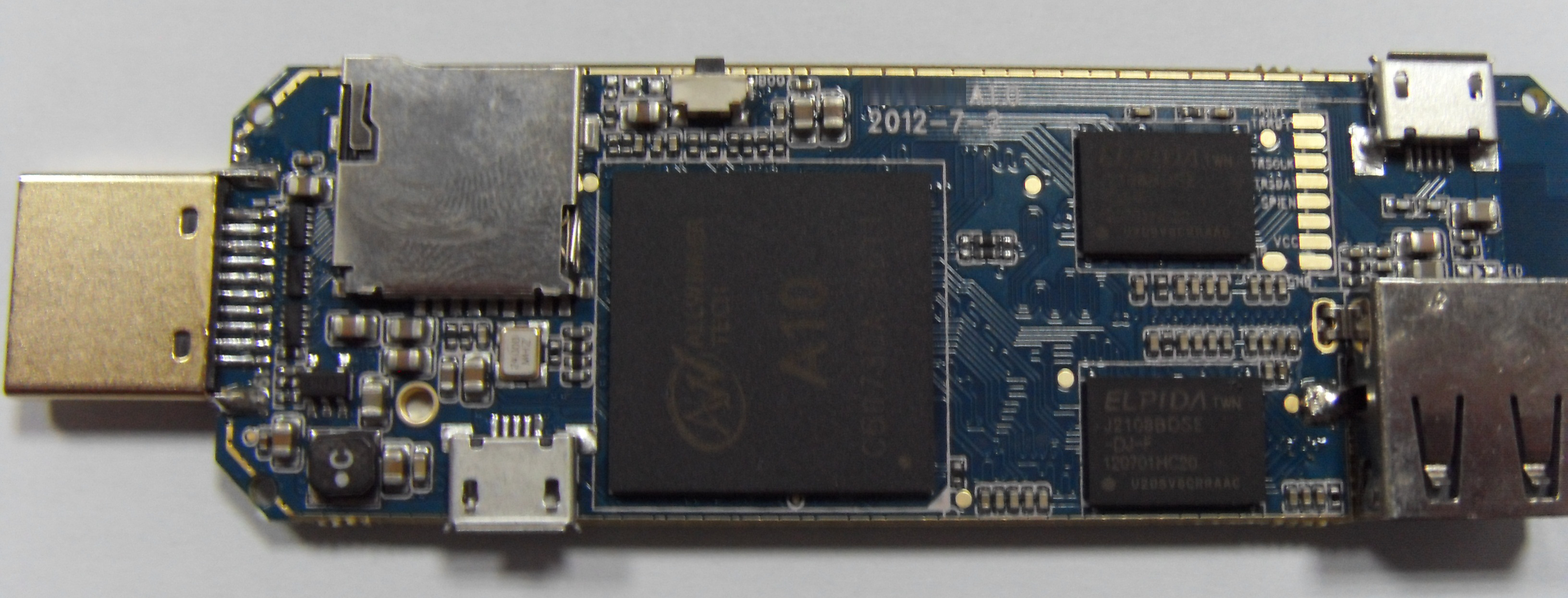

Z902 PCB Top

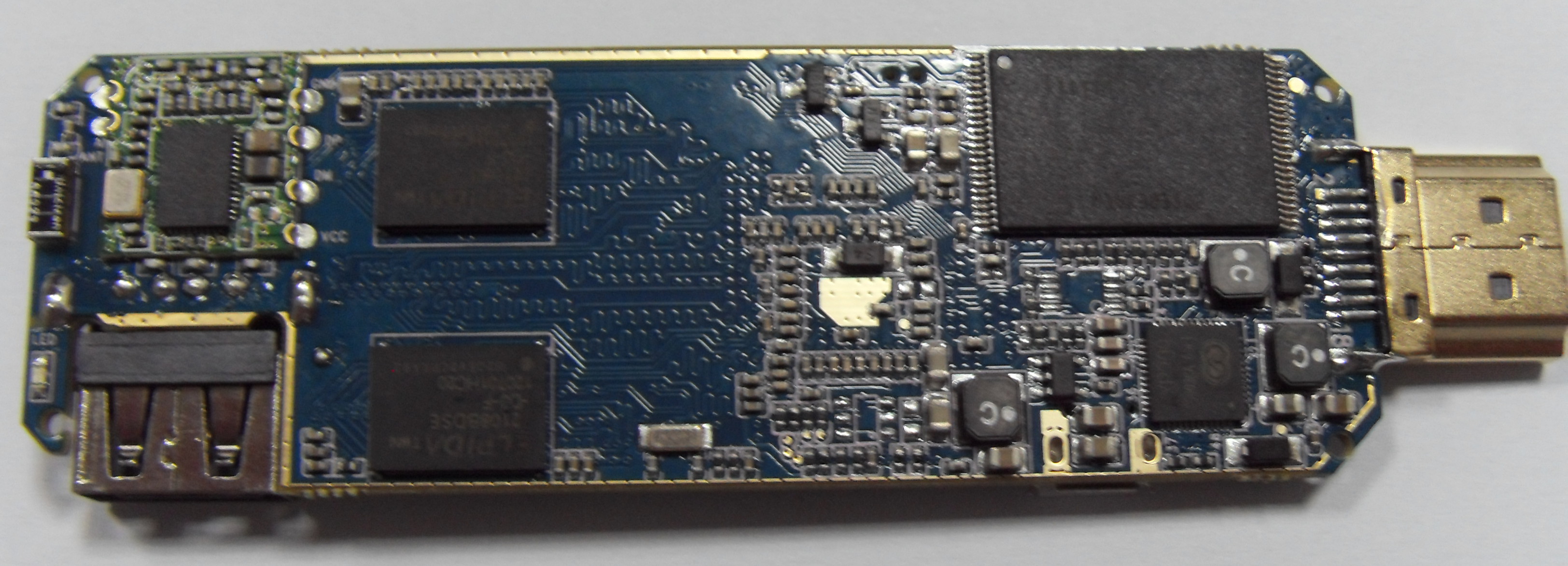

Z902 PCB Bottom

as well as preliminary specifications.

Model ZERO Devices Z902
OS Android 4.0
CPU Allwinner A10/ 1GHz Cortex-A8
Memory 1 GB
Storage 4 GB
Graphical processor 2D/3D/OpenGL ES2.0/OpenVG1.1
Network Wireless 802.11b/g/n
Expanded Memory micro SD card slot (Up to 32GB)
IO/Ports 2x micro USB; 1x USB 2.0; 1x HDMI (Up to 2160p);
Audio AAC, AAC+, eAAC+, AMR-NB, AMR-WB, QCP, MP3, WMA, WAV, MIDI, M4A
Video WMV/ASF/MP4/3GP/3G2M4V/AVI/MJPEG/RV10/DivX/VC-1/MPEG-2/
MPEG-4/H.263/H.264
Power Input 5V – Powered by the USB port
Dimensions 9.7 x 2.8 x 1.2cm
Total weight 200 grams

The device is supposed to come with a micro USB to USB (male) cable, a  microUSB to USB (female) adapter, an HDMI female to male cable and optionally a power adapter.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. sao
    July 25th, 2012 at 03:49 | #1

    Other than the extra usb ports (which are welcome) and the male hdmi connector (for my usage I do prefer the female connectors), do you know what other differences are there between this and the good old mk802? In particular, does it have ESD protection and power supply chips like the Oval Elephant does? What about bluetooth?

    Thanks!

  2. July 25th, 2012 at 11:18 | #2

    @ sao
    Sorry I don’t know about the ESD protection, some knowledgeable persons should be able to tell you by just looking at the PCBA pictures above.

    They provide an HDMI female to male cable, so it can be connected either directly into the TV or via a cable, just like how it would be with a stick with an HDMI female.

  3. JJ
    July 25th, 2012 at 14:20 | #3

    @ sao
    At PCB Top picture, near the HDMI connector there is 3pcs components veritically aligned. Those are probably ESD protectors, size and footprint matches.

  4. Javi
    July 25th, 2012 at 22:33 | #4

    Extra points:

    Added ESD
    Added power protect circle
    Soft turn on/off.
    HDMI connector pop out

    Via: http://androidforums.com/google-tv/549486-mini-android-tv-zero-devices-z802-android-4-0-a.html
    (At the end of the topic)

  5. none
    October 8th, 2012 at 23:41 | #5

    Is kernel source available?

  6. October 9th, 2012 at 09:38 | #6

    @none
    Yes, it’s just the same kernel source as other A10 devices.

  7. August 18th, 2013 at 22:14 | #7

    @cnxsoft : this device is no more available (announced EOL in january 2013 by Asiapads)

    too fast to permit to a community to grow up … i purchased 3 of these unit !

    easy to use, no lag with HD vids, but limited lifetime due to poor support and no update available (4.3)

    Sebastien
