Xibo for Android on Mele A1000 Set-top Box & WM8850-MID Tablet

November 28th, 2012 Leave a comment Go to comments

Earlier this month, Xibo developers announced the beta version Xibo for Android was available for testing. Contrary to the Linux & Windows clients and servers which are open source, Xibo for Android is developed by Spring Signage and will available commercially. This sponsorship will help finance the development of Xibo open source software: the 2 clients (.net in Windows, Python in Linux), the server and API.

Digital Signage Player for ARM Android Devices

The current beta version supports the most important features of the Windows client, but lacks support for Adobe Flash, Microsoft PowerPoint, Datasets, Microblog, Stats, Counter Media, Socket Listener, Lift/Serial Interface Support, Offline Update via USB Drive,
Full Compositing (overlapping regions) and Video Transparency.

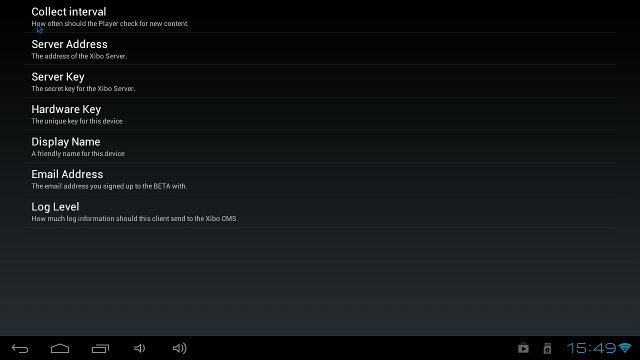

If you want to test the Xibo client for android, you can register for the private BETA and download an APK (Xibo_Android_Clientv1.0.12.apk) to install on your Android devices. Being part of the BETA program will also guarantee you a price of £10 GBP per client for Xibo 1.4.x releases, should you choose to purchase the final version. After installation, you’ll see Xibo Settings.

You’ll need to fill the “Server Address” (e.g. http://192.168.0.103/xibo), the server key defined in Xibo dashboard, an hardware key (e.g. mele_xibo), and provide the email address you used to register to the beta program. Once you run the program, you can click anywhere on the screen to pop-up a window with debug information.

I mainly used Mele A1000 media player (AllWinner A10) for testing, but also did a quick test on WM8850-MID tablet. I tried several layouts, and most of them worked, but one was shown as invalid. The layouts include scrolling text (Twitter RSS feed),  jpeg pictures, an mpg video and the mobile version of a famous tech blog :). Everything appears to very smooth and usable, contrary to my try to run Xibo on ARM Linux. Beside the invalid layout issue, I found out that the Status bar is always there, but just dimmed, and this appears to be problematic to solve on most Android devices according to Spring Signage developers.

You can watch Xibo for Android running on Mele A1000 below, and see for yourself that it runs pretty smoothly. The main problem is that the scrolling text is cut because of the Status Bar.

On WM885-MID tablet, Xibo did not work as well. The status bar was obviously still there, but the full layout was shown (possibly due to the different resolution), and although the text was not cut out, the font size was incorrect (too small). But the biggest problem was the failure to play the MPG video I used.

Xibo Android Client in WM8850-MID Tablet

Based on my first evaluation, even though Xibo for Android will cost at least 10 GBP ($16 US), it should still be worth it considering you can now buy mini PCs / HDMI sticks for $30 to $50 (e.g. MK802) that can run Xibo smoothly with most features. I would also expect Xibo for Android to run nicely on the $35 Raspberry Pi (512 MB RAM version) once a proper Android port for the platform is released. Of course, if you need Powerpoint and/or Adobe Flash, you’ll still need to spend over $100 to get a Windows client.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. e8hffff
    November 28th, 2012 at 20:41 | #1

    Please make this website a Android free zone!

  2. November 28th, 2012 at 22:04 | #2

    @e8hffff
    That could be an idea, but it’s difficult to fight against the trend.
    The problem is that many SoC vendors focus on Android, so 2D/3D support is available on that platform, but not so much on Linux. For video playback in Linux, there is no proper standard, and each platform has its own implementation, although gstreamer unifies this a bit, but with Android, it seems like one implementation can support many targets.

    Some people even talk about using headless Android (as a server) which seems a bit odd, since Linux can surely do this better without overhead.

  3. November 29th, 2012 at 00:40 | #3

    Thank you for taking the time to draw up this review. We will hopefully have an updated APK to test early next week, it will fix the text scaling issue you noticed (there will also be a full 1.4.1 Xibo release to fix this in our other clients!).

    The status bar does dim down to “low profile” on 3 out of 4 test clients so far (your tests make this 3 out of 6) – we are searching for a solution, but it may come down to device support. Its the same story for your MPG not playing. Once we have a few more test results in we will look to build a hardware compatibility guide.

    We are also looking to add Microblog, DataSets and Stats to this client in the near future.

    Thanks once again!

  4. November 29th, 2012 at 09:12 | #4

    @Dan Garner
    The status bar is only highlighted when I touch / click on it, which I had to do to take a screenshot. During normal operation, the status bar is dimmed.
