Habey EMB-3700 Embedded Board Features AMD G-Series SoC

AMD recently announced their G-Series SoC family that combines a CPU, a GPU, and a controller hub into a single chip, as ARM has been doing for a while, and more products based on the platform are entering the marketplace. I’ve already written about Win Enterprises MB-60830 and Netboard A10 single board computers, and today I’ll introduce another option with Habey EMB-3700, a 3.5″ embedded board that targets applications such as digital signage, point-of-sale (PoS),  industrial automation, machine to machine, in-vehicle telemetry, and medical technology.

Habey_EMB-3700_AMD_SoC_BoardHabey EMB-3700 Specifications:

  • SoC:
    • GX-420CA quad core @ 2.0GHz (25W TDP) with Radeon HD8400E or
    • GX-415GA quad core @ 1.5GHz (15W TDP) with Radeon HD8330E or
    • GX-210HA dual core @ 1.0GHz (9W TDP) with Radeon HD810E
  • System Memory – 1x 204-Pin DDR3 SODIMM, up to 4GB (ECC) RAM
  • Storage – 2x 6Gb/s SATA 3.0 connectors
  • Video Output:
    • HDMI up to 1920 x 1200
    • VGA up to 2048 x 1536
    • 18/24bit LVDS Internal Header up to 1600 x 1900
    • Dual independent display support: VGA+HDMI or HDMI+LVDS
  • Audio I/O – HD audio (Realtek ALC892) with line-in/out, mic-in
  • Connectivity – 2x Gb Ethernet (Realtek RTL8111E), support for 3G and Wi-Fi modules.
  • USB – 4x USB 2.0 ports
  • Serial ports – 4x RS-232 headers, 1x RS-232/422/485 header, and 1x RS-232 DB9 (optional)
  • Expansion – Mini-PCIe socket with SIM socket and optional mSATA support
  • Misc – 8-Bit GPIO, PS/2 keyboard/mouse, wake on LAN, watchdog timer, and  TPM encryption/security support
  • Power input – 12V DC
  • Dimensions – 146 x 102mm  “3.5-inch embedded form-factor”
  • Temperature range – Operating: 0 to 60°C. Storage: -40 to 60°C

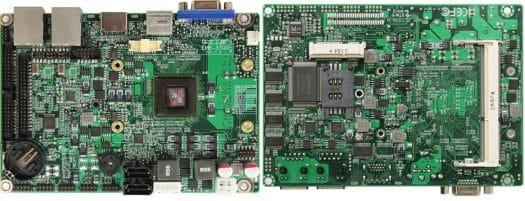

Habey EMB-3700 Embedded Board (Click to Enlarge)

Habey EMB-3700 Embedded Board (Click to Enlarge)

The company mentions the board features “AMD Embedded G-Series SOC processor family with 6W-25W TDP options”, which implied it should support more than the 3 processors (9W to 25W TDP) listed in the specifications. They do not mention operating systems or software support, but I’m pretty sure Linux and Windows (Embedded) should be support on this boards.

The company’s website does not indicate price or availability either. You may find a bit more information on Habey USA EMB-3700 page.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. Joe Bucks
    August 24th, 2013 at 15:29 | #1

    Hasn’t AMD been producing this type of CPU/GPU combo since 2011?
    Their so called APU-Fusion series CPU?
    http://en.wikipedia.org/wiki/AMD_Accelerated_Processing_Unit

  2. August 24th, 2013 at 15:41 | #2

    @Joe Bucks
    They’ve been doing the APU for a few years. The APU includes the CPU and GPU, but relies on an external chipset to handle I/O.
    This year they have released a family of SoC that includes the CPU, GPU and I/O, so you don’t need an external chipset, everything is handled within the chip.

    APU is 2-in-1, SoC is 3-in-1.

  3. anon
    August 24th, 2013 at 17:46 | #3

    You could had used the pure magic keyphrase of ‘Jaguar core’, as that is hot stuff now days. ;-)

    Other thing is, their site mentions “multiple application uses:” that has a line about “fanless system”, so maybe in some configurations it would be without that awful chainsaw, that some people call a fan… Surely just the dual core, unfortunately.
