$30 CoreWind Tech WiFiG25 SoM Features Atmel SAM9G25 ARM9 Processor and a Wi-Fi Module

After their Aria G25 clone, called CORE9G25, CoreWind Tech has now launched a new SoM, WiFiG25, also powered by Atmel SAM9G25 ARM9 processor, but this time with a WiFi Module based on Realtek RTL8188, and up to 256 MB RAM, 256 MB Flash.

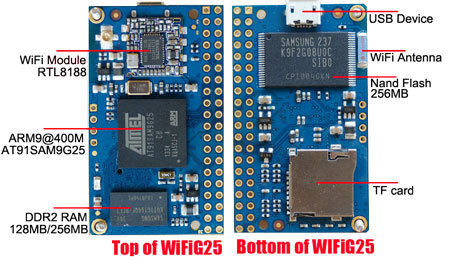

WiFiG25Here are the specs of this system-on-module:

  • CPU - Atmel AT91SAM9G25 ARM9 @ 400Mhz
  • System Memory – 128 or 256 MB DDR2
  • Storage – 256MB NAND Flash, micro SD card slot
  • Connectivity – WiFi Module with internal antenna
  • 2x20Pin 2.54mm expand interface (through holes) with access to 2x USB host ports, 3x UART, 1x I2C, 1x SPI, 6x PWM, 27x GPIOs, and 4x 10-bit ADC
  • Line level – TTL 3.3V
  • Misc – User LED
  • Power supply – 5V
  • Dimensions – Size: 50.80 x 30 mm
  • Weight – 5g
  • Temperature range -  Commercial: 0 to 70 °C, or industrial: -20 to 85 °C

The company provide Linux 3.6.9 for the board, as well as a rootfs built with buildroot bootable from NAND (and pre-installing), and a Debian image that can boot from micro SD card. You can find documentation for builroot and Debian on the company’s website, as well as some more details on AT91.com. Schematics (PDF) and mechanical information (PNG) are both available online.

WiFiG25 SoM is available now, and at least until 2023 (10 years availability), for price ranging between $29.90 to $45 depending on RAM configuration, and temperature range options. Further information is available on CoreWind Tech WiFiG25 page.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. April 1st, 2014 at 05:09 | #1

    That’s incredible !!! :-O

  2. April 1st, 2014 at 09:03 | #2

    @Sergio Tanzilli
    Yes, now I can see it looks similar to your Arietta G25 board, except Wi-Fi does not come as an option.
    http://www.cnx-software.com/2014/01/19/9-99-euros-arietta-g25-board-features-atmel-sam9g25-arm9-processor/

  3. April 1st, 2014 at 11:28 | #3

    @Sergio Tanzilli
    Yes, we can’t wait so long time to buy it, so we do it by myself.
    Hope better cooperation between us.
