RTL8710 Ameba Arduino Development Board and Ameba Arduino v2.0.0 SDK Released

We’ve already seen a NodeMCU lookalike board called RTLDuino based on Realtek RTL8710AF ARM Cortex M3 WiSoC earlier this month, that can be programmed with a community supported Arduino port also called rtlduino via a JLink SWD debugger, but now Realtek has just launched Ameba RTL8710 Arduino board, and released Ameba Arduino v2.0.0 SDK which brings official Arduino support to RTL8710AF platforms.

Click to Enlarge

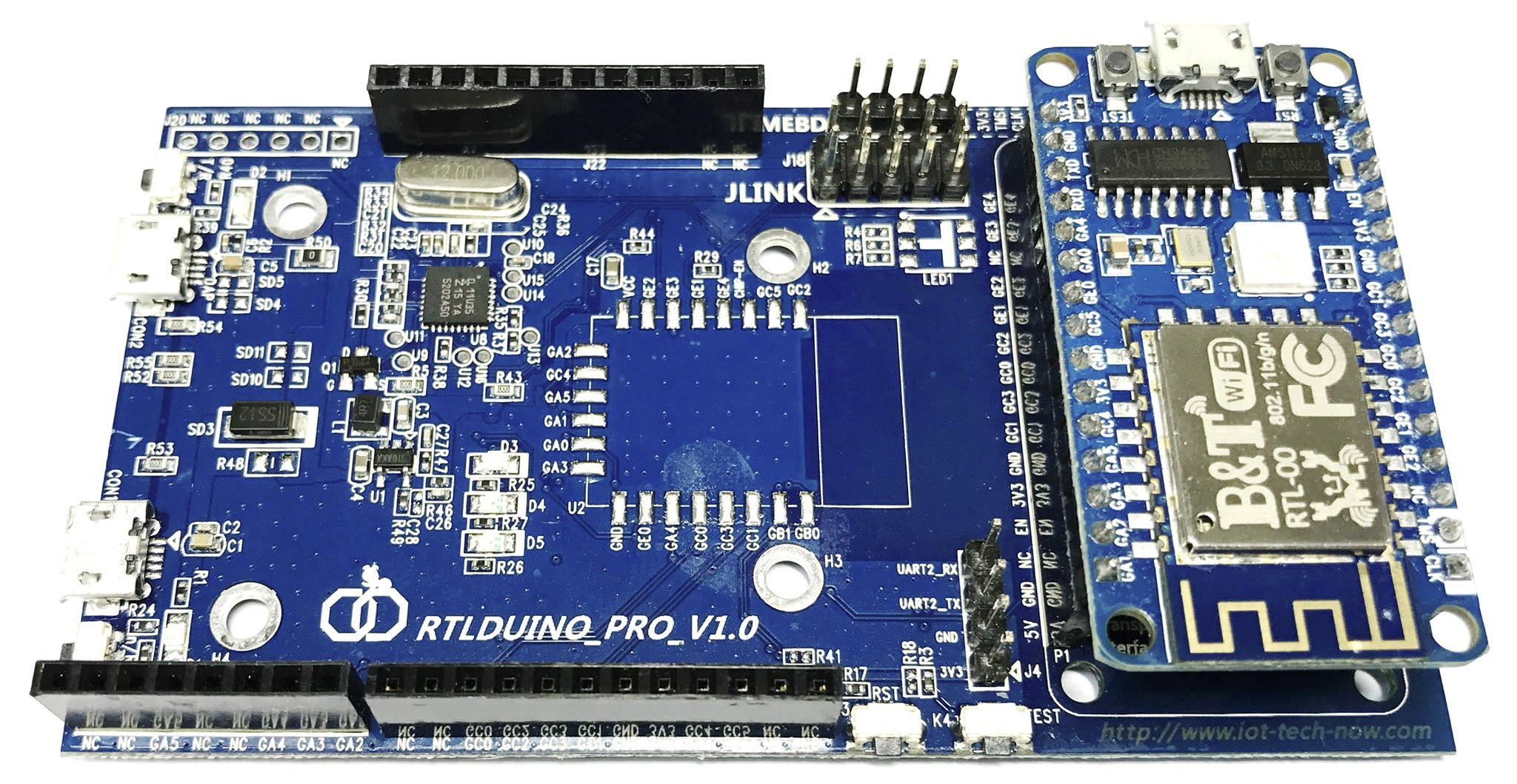

There appears to be two versions of the development kit: RTLDUINO_PRO_V1.0 and REALTEK-AMEBA_RTL8710_V2.0, but based on the user manual they seem to be identical, and as you can see from the above picture, it includes a baseboard and the aforementioned RTLDuino board.

RTL8710 Ameba Arduino HDK key features:

  • SoC – Realtek RTL8710AF ARM Cortex-M3 MCU @ 83 MHz with 802.11 b/g/n WiFi, hardware SSL engine connected to the baseboard via:
    1. RTLDuino board through female header
    2. B&T RTL-00 module soldered on module footprint
  • USB – 2x micro USB ports, CON2 used for power and Arduino programming, CON1 used for DAP programming (TBC)
  • Expansion – Arduino UNO headers with GPIOs, power signals, 2x UART, SPI, I2C, and 4x PWM
  • Debug Headers – 4-pin Mbed connector, 10-pin Jlink connector, 4-pin for serial console
  • Misc – T/R & n/R buttons maybe to select programming mode?, reset and test buttons

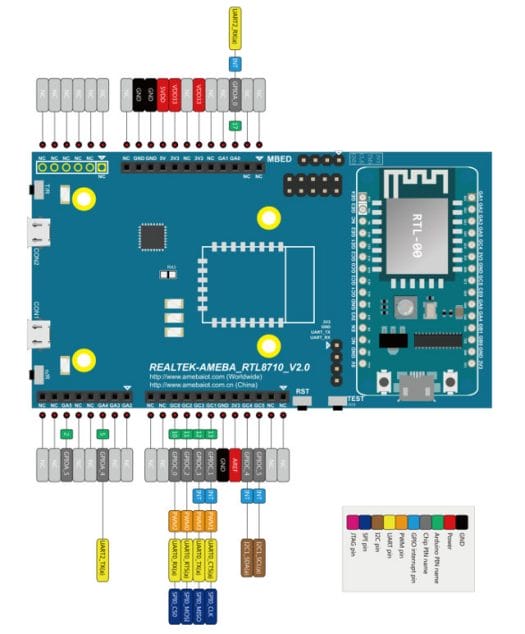

Pinout Diagram – Click to Enlarge

The documentation in English is still work in progress, but Realtek already released a getting started guide to program the board with Arduino IDE 1.6.5 or later. The guide only mentions Windows, so it’s unclear whether Linux is supported for now, but the steps are pretty simple:

  1. Install mbed serial drivers
  2. Install Ameba board packages in Arduino IDE
  3. Connect the board via USB to your computer, and select Ameba RTL8710 board in Arduino IDE
  4. Use Blink program to blink an LED connected to GPIO 13.
  5. Profit!

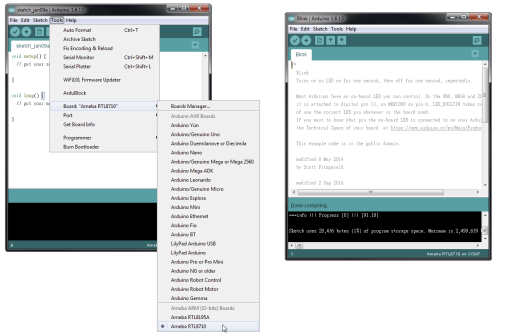

Ameba RTL8710 & Arduino IDE – Click to Enlarge

I understand you may not even need to use RTL8710 Ameba Arduino SDK for this if you have a board with the latest firmware. If not, you may need to update the firmware, but there’s no documentation about this, and it’s unclear whether this can be done via the RTLDUINO / AMEBA_RTL8710 baseboard, or a separate JLINK SWD debugger is needed.

The SDK has been released on Ameba IoT China website, and will soon be on Ameba IoT (English) website. The hardware development kit can be purchased for NT$ 630.0 in Taiwan, and 150 CNY (~$22) on Taobao. If you live outside of China, you could use a Taobao agent to ship to your country, or probably better, wait until Realtek gets a worldwide distributor. [Update: The board (pre-order) sells on Seeed Studio for $19.90]
