Kaiboer F4 / Ugoos UT1 Quad Core Media Player Is Now Available for as Low as $116

K-R42-1 (aka CS918 aka MK888 aka …) has been one of the first Rockchip RK3188 Android TV Boxes available on the market, and can be purchased for less than $90 US. Kaiboer F4, discovered at the end of June, has similar specs, but comes with 2 Wi-Fi antennas, potentially improving Wi-Fi reception. The only problem. until now, was that it was not available for sale, but this has now changed, and you can purchase it for $116 including on GeekBuying, renamed as Ugoos UT1. It’s also available on Aliexpress at higher prices at the time of writing. [Update: Dealsprime sells it for $109.99]

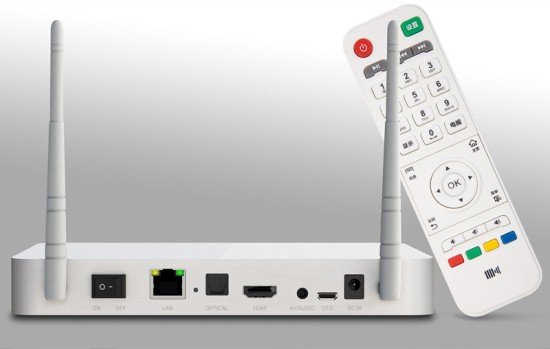

Kaiboer_F4_ports_remote_control

Kaiboer F4 / Ugoos UT1 Specifications:

  • SoC – Rockchip RK3188 up to 1. 8 GHz with Mali-400 MP4 GPU
  • System Memory – 2GB DDR3
  • Storage – 8 GB Flash + 1x SD card
  • Video Output – HDMI, and AV
  • Audio Output – HDMI,  AV, and optical S/PDIF
  • Connectivity – 10/100M Ethernet, and Wi-Fi 802.11 b/g/n with 2 external Wi-Fi antennas. (No Bluetooth)
  • USB – Micro USB OTG + 2x USB host ports
  • Power & reset buttons
  • Dimensions – 187x128x24 mm

This Android 4.2.2 device comes with a 5V/2A power adapter, an IR remote control, HDMI and composite cables, as well as a user’s manual. GeekBuying has posted some pictures of the devices including the custom user’s interface.

Kaiboer_F4_User_Interface

as well as low resolution pictures of the board.

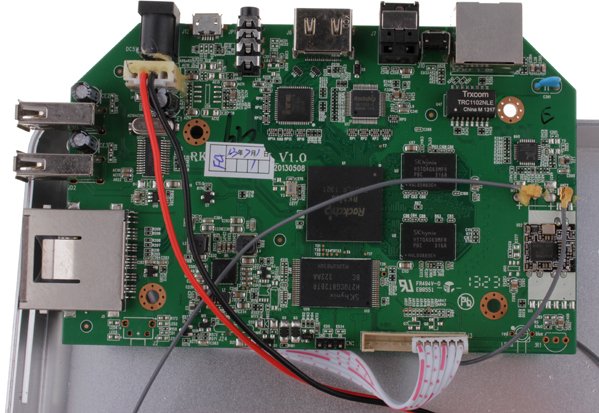

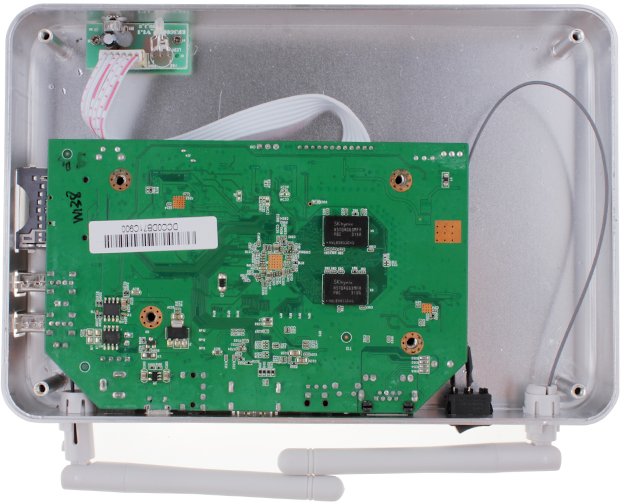

Kaiboer_F4_board_bottom Kaiboer_F4_board_top

At the bottom of the top side of the PCB, on the left side of the cable that goes to the small IR/LED board, you can see a 3-pin header with what may be GND, TX and RX, so this could be a decent Rockchip hacking platform, more practical than RK3188 mini PCs.

Geekbuying also posted some benchmark results: Antutu 3.x (15,245), Nemamark 2.4 (59.9 fps) and Vellamo (HTML5: 1544 / Metal: 491), and tested some features and apps such as Miracast, Video webcam, XBMC, Netflix…

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

9 Replies to “Kaiboer F4 / Ugoos UT1 Quad Core Media Player Is Now Available for as Low as $116”

  1. Still seems like the K-R42 is the one to beat for price/specs. There have already been some roms released for it and it available with bluetooth for ~$93. Anyone seen a quadcore with gigabit ethernet?

  2. I have a question: When will can put 1 hard disk in this mini computers? Web browser, films, pictures, libre office and bittorrent. i dont need more, actually my computer spend 30 watts, i want that it doesnt spend too energy.

    Linux distribution or android, i dont care. Perhaps in 2014??

  3. @pepe
    Several Mele STBs can already do this, and some Geniatech set-top box too.
    With Android, you’ll lose Libre Office, and with Linux, you’ll often lose proper hardware video playback.

    Compulab Utilite should also be able to do what you need, as it runs Ubuntu. You can replace the internal SSD with a larger one. Price is a little higher however.

  4. @pepe

    I suggest to just attach an externally powered USB 2.5″ HD. The UT1 has spare USB ports. Or plug in a high performance 64GB USB flash drive. I got mine from Dealsprime on express, best price around and I got mine after only a few days. A highly recommended purchase. Thank you Ugoos for a great device!
