GIGABYTE BRIX GB-BXBT-2807 Ultra Compact PC Kit Features a Low Power Intel Celeron N2807 “Bay Trail” Processor

A new BRIX system / Ultra compact PC kit has shown up on GIGABYTE website. GB-BXBT-2807 is powered by Intel Celeron N2807 which, with 4.3W TDP, is one of the most energy efficient Bay Trail processor, supports up to 8GB RAM, 2.5″ SATA drives, and comes with both HDMI and VGA output.

Gigabyte_GB-BXBT-2807GIGABYTE GB-BXBT-2807 specifications:

  • SoC –  Intel Celeron N2807 dual core processor at 1.58 GHz (Burst: 2.17GHz) with Intel HD graphics. 4.3W TDP
  • System Memory – 1x SO-DIMM DDR3L 1.35V slot @ 1333MHz up to 8GB
  • Storage -2.5″ SATA HDD (7.5/9mm thickness)
  • Video Output
    • VGA – Up to 2560 x 1600 @ 60Hz
    • HDMI – Up to 1920 x 1600 @ 60Hz (HDMI 1.4a)
  • Audio – HDMI, headphone/microphone jack, Realtek ALC283 codec.
  • Connectivity – Gigabit LAN (Realtek RTL8111G), Wi-Fi 802.11b/g/n and Bluetooth 4.0 (AW-NB159H module)
  • USB – 1x USB 3.0, 2x USB 2.0 ports
  • Expansion Slot – 1 x Half-size mini-PCIe slot occupied by the WiFi+BT card
  • Misc – Kensington lock slot, VESA Bracket included (75 x 75 and 100 x 100 mm)
  • Power Supply – DC 12V/2.5A
  • Dimensions
    • Complete product – 56.1 mm x 107.6 mm x 114.4 mm
    • Motherboard – 100 x 105 mm

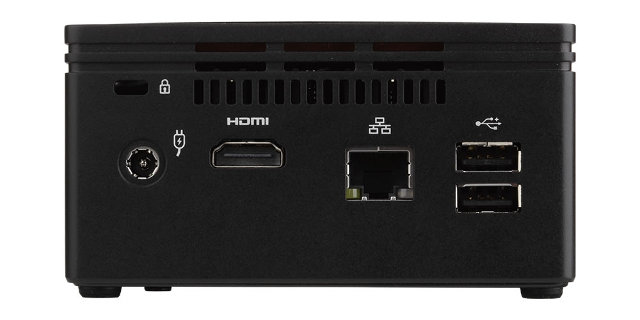

Gigabyte_GB-BXBT-2807_Rear_PanelThe specs are very similar to Intel DN2820FYKH NUC, except the latter uses a dual core Intel Celeron N2820/N2830 @ 2.13/2.16Ghz (7.5W TDP) instead of the dual core Intel Celeron N2807 @ 1.58 GHz (4.3W TDP) found in GIGABYTE mini PC. GB-BXBT-2807 also adds a VGA connector, but loses the IR receiver found in Intel NUC. It’s not clear whether the system is fanless or not. You should be able to run Windows, Linux or any other x86 supported operating systems in the device.

Availability and pricing are not known at this point. More information may be available on GIGABYTE GB-BXBT-2807 product page.

Thanks to TLS for the tip.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

8 Replies to “GIGABYTE BRIX GB-BXBT-2807 Ultra Compact PC Kit Features a Low Power Intel Celeron N2807 “Bay Trail” Processor”

  1. Do note that the Celeron N2807 supports QuickSync which the N2820 doesn’t. If supported in software, this can help with HD video playback and possibly even transcoding/encoding.
