Boardcon Compact 31S is an Allwinner A31s based Development Board with HDMI, VGA, and LCD Interfaces

Boardcon Embedded Design, an ODM providing industrial Computer-on-Module, and board, announced Compact A31S powered by Allwinner A31s quad core Cortex A7 processor, with 2GB RAM, 4GB eMMC, HDMI, LCD and VGA video outputs, and various other ports.

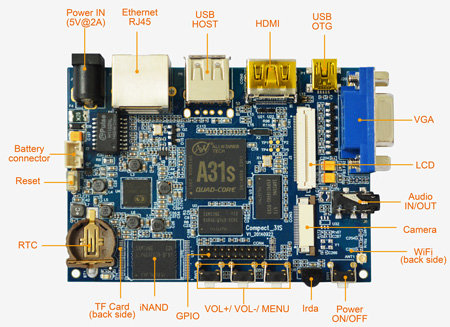

Boardcon_Compact_A31sBoardcon Compact A31s hardware specifications:

  • SoC – Allwinner A31s quad core ARM Cortex-A7 @ 1 GHz with 256 KB L1 cache, 1MB L2 cache, and PowerVR SGX544MP2 GPU compliant with OpenGL ES 2.0, OpenCL 1.x, DX 9_3
  • System Memory – 2GB DDR3 @ 1866MHz
  • Storage – 4GB eMMC Flash + micro SD slot
  • Video Output – HDMI 1.4, VGA (up to 1280×800), and 40-pin FPC connector for LCD with capacitive touch screen support
  • Audio Output – HDMI, 3.5mm headphone jack
  • Connectivity – 10/100M/1000M Ethernet, Wi-Fi
  • USB – 1x USB 2.0 host port, 1x USB 2.0 OTG port
  • Camera – CMOS Camera interface
  • Expansion – 1x 20-pin expansion connector for GPIOs
  • Misc – Real Time Clock, powered by external lithium battery, IrDA, 3x User buttons, for Volume +/-, menu
  • Power Supply – 5V/2A, external battery support
  • Dimensions – 92 x 65mm

The company provides an Android 4.2.2/4.4 SDK with uboot 2011.09, Linux 3.3, various drivers, gcc toolchain, as well as the tools for development including SecureCRT.exe, Ubuntu 12.04-64bit (VM?), and PhoenixSuit.

Boardcon did not reply to my email request for availability and pricing information. More details may be found on Broadcon Compact A31S product page.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
9 years ago

I really like these kind of boards.

Did you see anyone with MIPI interface? (for lcd) Some from Merri have, but they have lots of things I do not need…

9 years ago

They are LVDS, if want connect a small size HD screen must use MIPI interface. As I have seen only MTK boards have this.

Morgan Ross Egging
Morgan Ross Egging
9 years ago

They are nerf-ed in a lot of Dev boards as to avoid ISP licensing, which is absurd at this point.

9 years ago

To Javi, so far, We Boardcon has no boards has a MIPI Interface, but MIPI interface is future tender, as now most big siz LCD are using MIPI interface.

Angel Genchev
Angel Genchev
9 years ago

Yeah faster than RPi v2 (900MHz quad-core ARM Cortex-A7) and has RTC, but more pricey.
To me the Linux support is crucial. Also do you see the SATA interface made A10 so interesting ?
