Hi-Link HLK-M30 StartKit Based on Mediatek MT7681 WiSoC Sells for $10

Orange Pi Development Boards

Here’s yet again another low cost Wi-Fi board for the internet of things with Hi-Link HLK-M30 StartKit featuring an HLK-M30 Wi-Fi module powered by Mediatek MT7681 SoC, exposing 5 GPIOs, and a serial RS-232 DB9 interface. AFAICR, it’s the second MT7681 board featured on CNX Software after xWiFi.

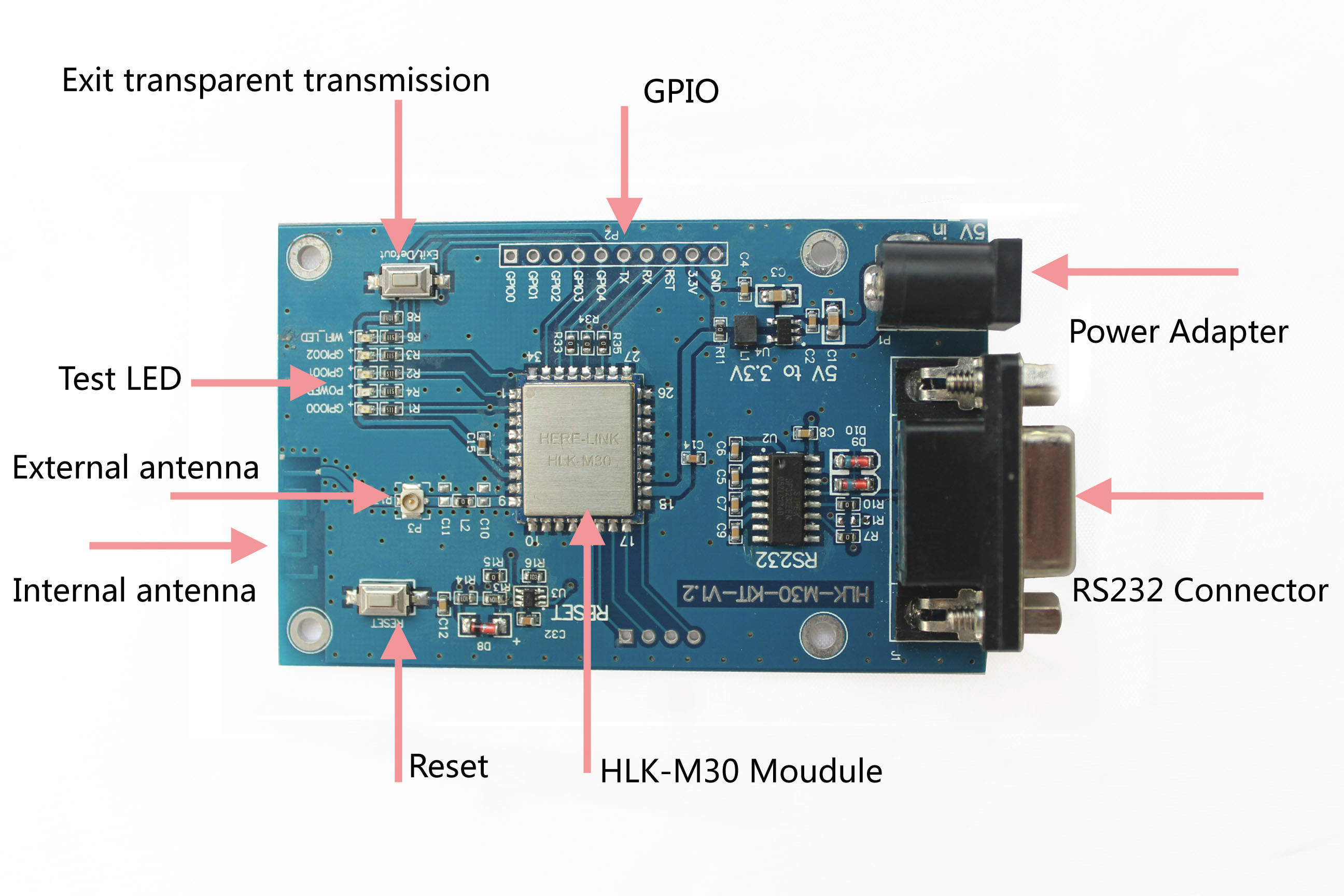

HKL-M30 StartKit (Click to Enlarge)
HKL-M30 StartKit (Click to Enlarge)

Key feature of HLK-M30 Wi-Fi module and Starter Kit:

  • SoC – Mediatek MT7681 WiSoC
  • Wi-Fi
    • Standards – 802.11b/g/n
    • Wi-Fi encryption: WEP/WPA-TKIP/WPA-AES/WPA2-TKIP/WPA2-AES
    • STA/AP mode
    • Protocols supported by MT7681 – TCP Server/Client, UDP Server/Client, DHCP, DNS, HTTP
    • Internal and external antennas
  • Serial – DB9 connector for RS-232
  • Expansions
    • 2.54mm through holes for 3.3V/GND, Tx/Rx, and GPIO 1 0 to 4.
    • 4-pin SPI interface to flash firmware to IC (not usable by end users)
  • Misc – Test LEDs
  • Power – 5V power barrel
  • Dimensions – 14.1 x 16.5 x 2.25 mm (Module size). PCB size: Unknown.

Documentation including User’s manual and AT command sets, windows based tool, and hardware design files for the kit can be downloaded from Baidu. HLK-M30 module is expected to be used in smart sockets, smart light bulbs, ODB-II Wi-Fi dongles, RFID, toys, industrial automation, telemetry, remote controls, and so on.

HLK-M30 StartKit can be purchased for $10 + shipping on Aliexpress, and HKL-M30 module only for $5.50 + shipping. You can save one or two dollars if you pledge for the module or kit on Indiegogo instead, but you’ll have to wait for 3 weeks until the campaign closes to getting the hardware shipped.
