Unboxing of Tronsmart Draco AW80 Meta mini PC Powered by AllWinner A80 Processor

GeekBuying sent me a sample of their Tronsmart Draco AW80 mini PC powered by Allwinner A80 octa core processor. I’ve received the Meta version with 2GB RAM, and 16GB eMMC, but next month Telos version will ship with 4GB RAM and 32GB eMMC instead. Today I’ll show some pictures of the product and the internal boards, and in a few days I’ll write a full version with the Android 4.4 firmware. Later, I’ll most certainly review the Ubuntu beta image that’s scheduled for released by the end of the month.

Tronsmart Draco AW80 Unboxing

I’ve received the device by DHL in the black and gold package below.

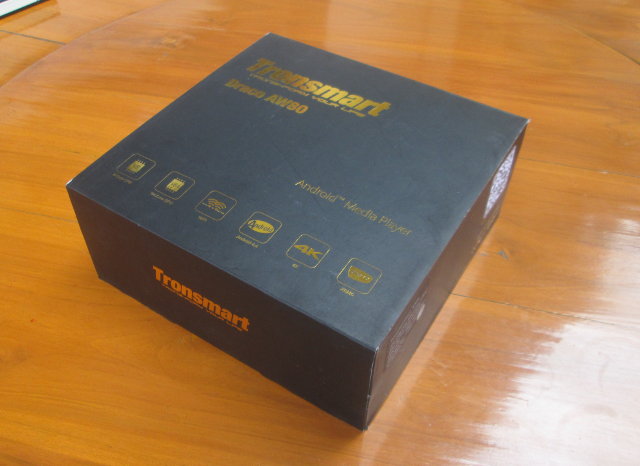

Tronsmart_Draco_AW80_PackageI was surprised by the size of the box (16.4 x 16.4 cm) which quite larger than what I’m used to with other TV boxes, and all cables and accessories are stored in little black boxes within the main package.

Draco AW80 and Accessories (Click to Enlarge)
Draco AW80 and Accessories (Click to Enlarge)

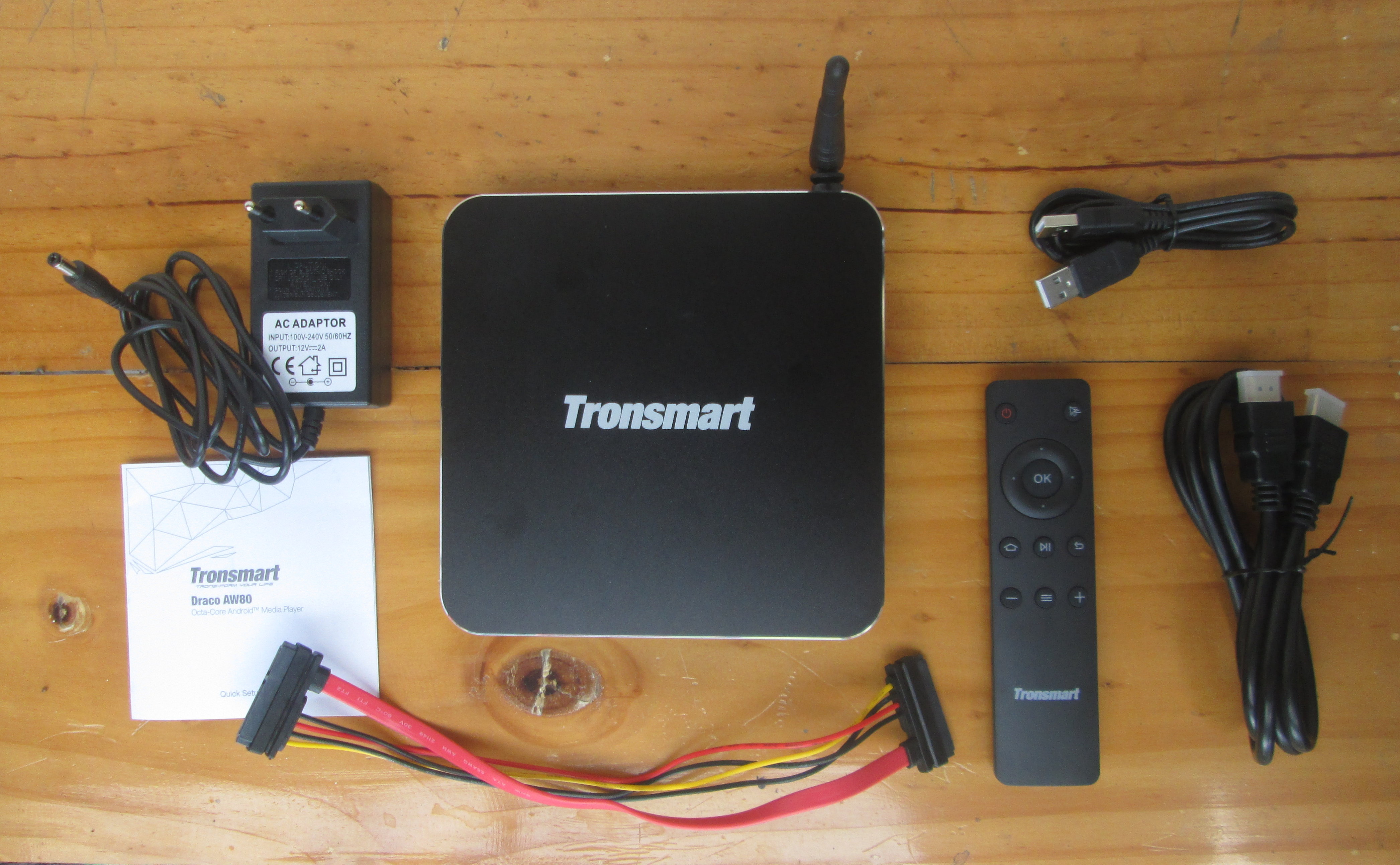

Accessories include a 12V/2A power adapter, a SATA cable, an HDMI cable, a USB 2.0 cable, an IR remote control requiring two AAA batteries (not included), and a quick start guide in English.

Draco AW80 Meta (Click to Enlarge)
Draco AW80 Meta (Click to Enlarge)

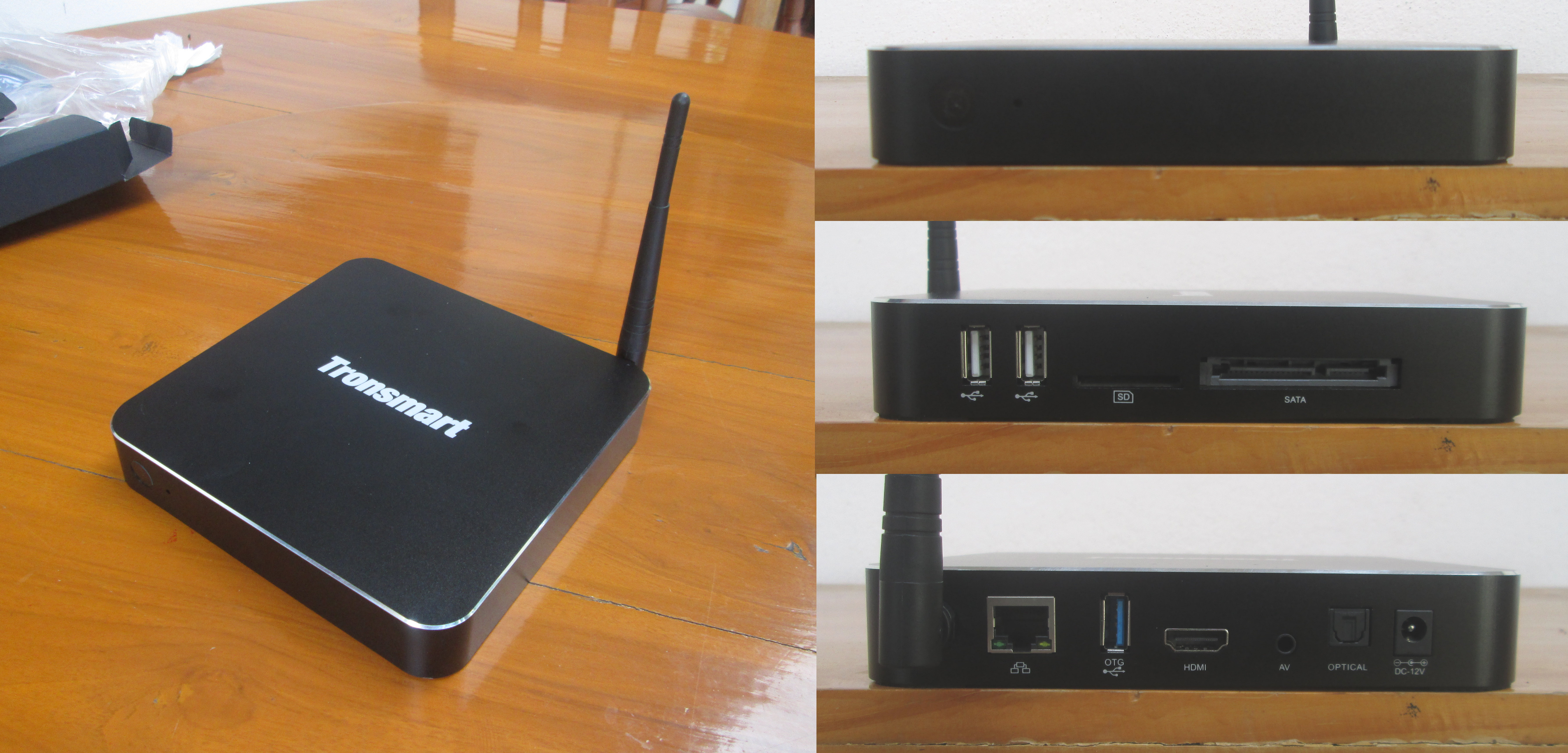

A small rounded window for the IR receiver, and a through hole for a bi-color LED can be seen on the front panel. One one side, we’ve for two USB 2.0 host ports, an SD card slot, and a SATA connector. The rear panel features the Wi-Fi antenna, an RJ45 port for Gigabit Ethernet, a USB 3.0 OTG port (full size), HDMI and AV outputs, optical S/PDIF, and the 12V DC power barrel. There’s also a “Fn” through hole on the bottom of the metallic enclosure, most probably for firmware update.

Unboxing video:

Draco AW80 Meta Board Pictures

In order to open the enclosure, I had to take out the four sticky rubber pads on the bottom, and untighten four screws. The base of the case would not come out, so I pulled it with a precision screwdriver using one of the many ventilation hole on the bottom of the enclosure.

Bottom
Bottom (Click to Enlarge)

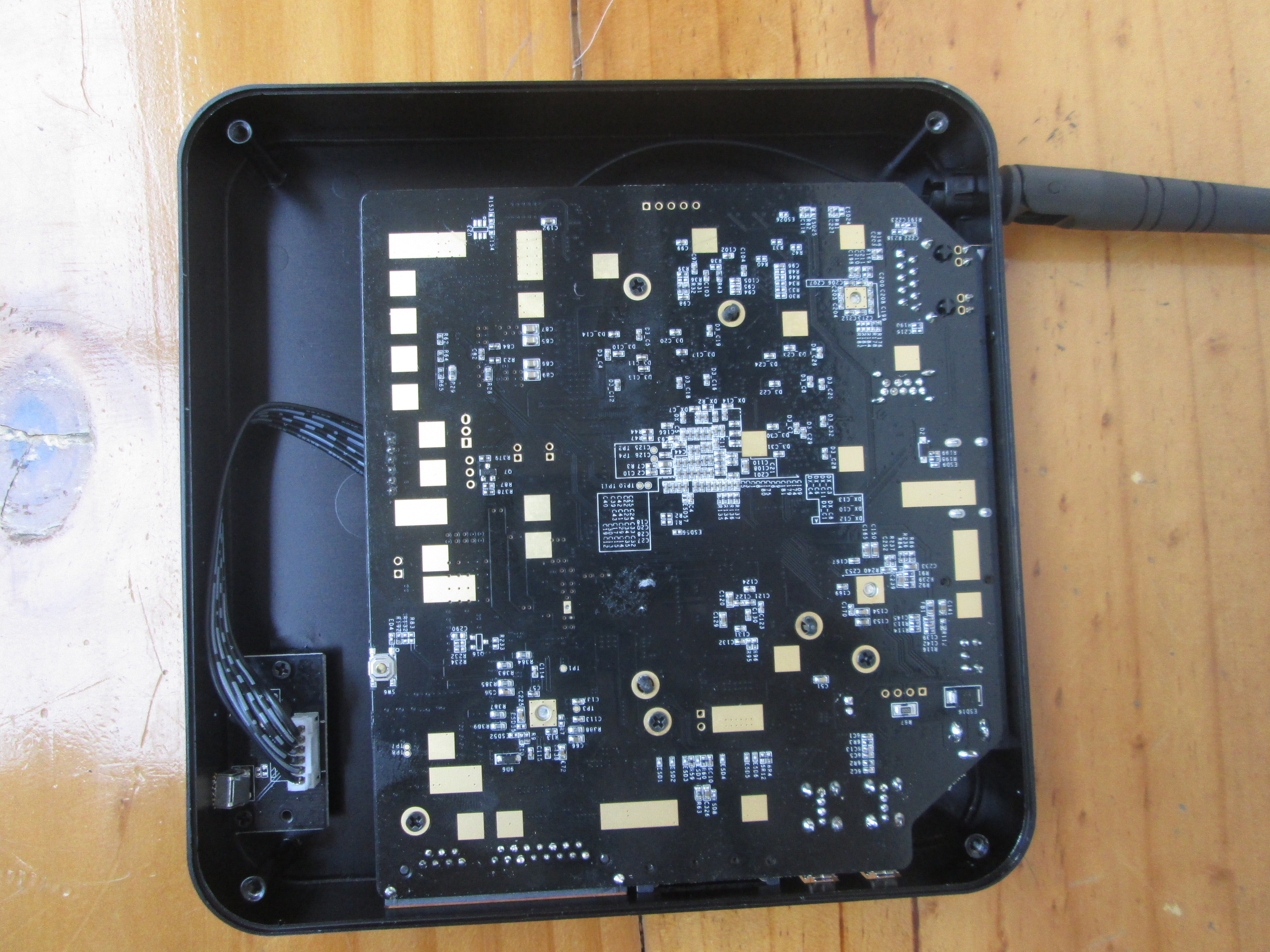

There’s a tiny board connected to the mainboard for the IR receiver and a Blue/Red LED. Nothing much to noticed on the mainboard except SW6 switch which should be to access U-boot / FEL mode for firmware update. Four more screws need to be removed to take out the board from the case.

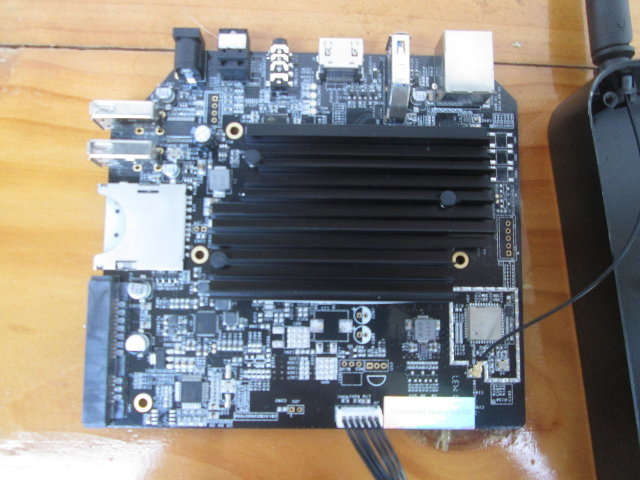

Tronsmart_Draco_AW80_BoardThere’s a massive heatsink, and it indeed looks exactly like the board used in Zero Devices Alice Z8C. I’ve popped out three bits with spring to take out the heatsink. There a thermal rubber pad between the heatsink and the SoC/RAM/eMMC, no thermal paste.

AW80 Board (Click to Enlarge)
AW80 Board (Click to Enlarge)

There’s a shiny sticker reading “Tronsmart Draco AW80” on the board to hide the actual board name. The Wi-Fi / Bluetooth module is AP6335 which means dual band Wi-Fi 802.11 n/g/n and 802.11ac should be supported together with Bluetooth 4.0. Four Samsung K4B4G1646D 16-bit DDR3 chips are used to get 2GB RAM, and the eMMC is model Samsung KLMAG4FE3B-0001 moviNAND (eMMC v 4.41) with maximum sequential write speed of 60MB/s, and sequential read speed of 150MB/s. Other ICs include AC100  audio codec, and  Realtek Gigabit transceiver. There’s part of the board that unpopulated, but I’m not sure what it was meant for, expect for the LED and IR parts. The UART pins for serial console can be found right below the DC jack and S/PDIF connector.

Tronsmart Draco AW80 Meta pictured in this post sells for $149 on GeekBuying, whereas the upcoming Draco AW80 Telos with 4GB RAM and 32GB flash is available for pre-order for $199, and should ship by the end of the month. You can also purchase either model on Aliexpress.
