OneBoard PRO+ is an Android Mechanical Keyboard Powered by Rockchip RK3288 SoC

When Coolship keyboard computer was announced in 2013, it caught the attention of some people, but unfortunately the crowdfunding campaign was a disaster despite reaching their funding target,  and few people, if any, ever received the device. But if you are a nostalgic and still would like a Commodore C64-like computer in a keyboard, a company call Acooo has designed OneBoard PRO+ based on Rockchip RK3288 processor and with a backlit mechanical keyboard housed in an aluminum case.

Rockchip_RK3288_Keyboard_ComputerOneBoard PRO+ specifications:

  • SoC – Rockchip RK3288 Quad Core Cortex A17 up to 1.8GHz with ARM Mali-T764 GPU supporting OpenGL ES1.1/2.0/3.0, Open VG1.1, OpenCL, DirectX11
  • System Memory – 2GB DDR3
  • Storage – 16 GB eMMC flash + SD card slot up to 32GB
  • Keyboard – 83-keys QWERTY keyboard with backlit keys made of ABS plastic
  • Video Output / Input – HDMI output, DVI input
  • Audio Output / Input – HDMI, 3.5 mm jack for headphone
  • Connectivity – 802.11 b/g/n Wi-Fi and Bluetooth 4.0
  • USB – 1x USB 2.0 host port for Android only, 1x USB 2.0 port to connect a mouse.
  • Misc – Power button
  • Power Supply – 5V/2A
  • Dimensions – 332 x 178 x 40 mm
  • Weight – 2.76 kg

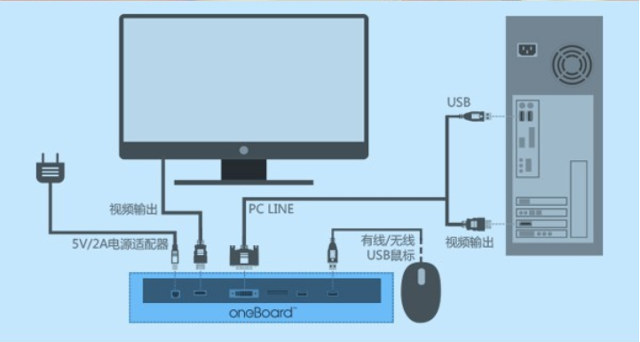

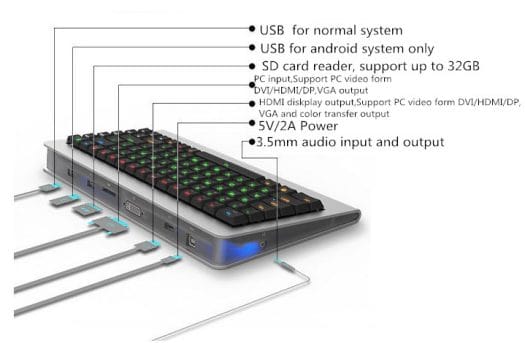

Android_Keyboard_Computer_DescriptionThe Android 4.4 keyboard comes with a power adapter and cable,  a “PC-line connect cable” with DVI connector on one side, and HDMI + USB on the other side, an HDMI cable, and a “DIY accessory tool box”. The keyboard is actually designed be used both as an Android system and a normal keyboard for your PC or Mac, acting as a dual operating system computer. The connection diagram below makes it clearer.

Oneboard_Pro+_Connection_DiagramSo the PC line is for the display and keyboard connection to your computer, and the video is always outputted via HDMI, but a USB mouse can be connected on a USB port and be used by both the computer and keyboard. The top right Yin/Yang key is used to switching between Android 4.4 and the computer input. Chinese speakers may want to have a look at the promo video.

I quite like the idea, and the design looks pretty neat, although I would have personally preferred a 104-key keyboard with a numpad. The price, however, is what may put off most people, as it sells for $289 on Banggood, or $299 on Aliexpress. For reference, OneBoard PRO+ can be found for 1299 to 2099 CNY on Taobao ($207 to $335 US).

Thanks to Onebir for the tip.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

20
Leave a Reply

avatar
20 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
7 Comment authors
RyanA quad-core Android PC is hiding inside this mechanical keyboard - Bacon in BangkokUn teclado mecánico integra Android para poder funcionar como un equipo autónomo | Código.galLanzan OneBoard PRO+, un teclado mecánico con Android | Madrid VenturesNoticias – Este teclado para PC es además un ordenador con Android Recent comment authors
  Subscribe
newest oldest most voted
Notify of
onebir
Guest
onebir

The price is the killer; maybe 1/2 of it is for the mechanical kb I think…

Nick Rout
Guest
Nick Rout

Trying to get my head around this. It has an HDMI input and and HDMI output. The output is switchable between the RK3288 running android and whatever is on the HDMI input?

Could be useful for, say, running Kodi/XBMC on the RK3288 and switching over to the HDMI input for an Xbox or PS?

Dr. Azrael Tod
Guest

@Nick Rout
or for debugging your android-stuff and switching between that and the pc containing your IDE

trackback

[…] Fuente […]

trackback

[…] Source : CNX Software […]

JotaMG
Guest
JotaMG

this device seems to me as pure non-sense…

Dodgy C
Guest
Dodgy C

I love the sound of it, but the price just seems $100 to much! Converting into sterling then I might as well by a cheap windows 8 laptop!

trackback

[…] source […]

trackback

[…] via AndroidPC.es and CNX Software […]

trackback

[…] one that’s hiding a powerful little Android PC beneath its clicky keys, of course!This is the OneBoard PRO+, a new product from a company called Acooo, and it harkens back to the glory days of the Commodore […]

trackback

[…] OneBoard Pro+ dispone de todo lo necesario para luchar contra los Raspberry Pi 2 y los H88 Hummingbird. Integra […]

trackback

[…] OneBoard PRO+ lijkt op het eerste gezicht een normaal toetsenbord, maar schijn bedriegt. Het toetsenbord bevat […]

trackback

[…] los teclados mecánicos. El teclado OneBoard PRO+ de Acooo (~250 euros) vuelve a poner en tus dedos el tacto que deberían tener todos los teclados de […]

trackback

[…] los teclados mecánicos. El teclado OneBoard PRO+ de Acooo (~250 euros) vuelve a poner en tus dedos el tacto que deberían tener todos los teclados de […]

trackback

[…] El teclado mecánico de 83 teclas, cuyo sistema operativo es Android 4.4, actúa como un computador dual que puedes conectar a tu PC o Mac normal, y además ocuparlo como una máquina con Android para tareas más simples. La empresa lo deja más claro en un esquema que hoy replica el portal CNX Software. […]

trackback

[…] da tecnoloxía facilita que poidamos recuperar o concepto de xeitos bastante innovadores, como co teclado retroiluminado mecánico OneBoard PRO+, compatible con equipos informáticos ordinarios, Ver a nova […]

trackback

[…] is the OneBoard PRO+, a new product from a company called Acooo, and it harkens back to the glory days of the Commodore […]

Ryan
Guest
Ryan

So I bought one of these.

Experiences so far:

– Android via mouse and keyboard is a mixed bag. Lots of things don’t work super great. Lots of apps in particular games and emulators don’t handle a non-touch screen well.
– The Android installation shipped on it is very Chinese. An update or two has improved translation for certain things, but it definitely ships with an interface with many apps and messaging without English translations.
– I was able to run MAME4droid, an Atari ST, an Atari 8 bit and SNES emulator on it. The two Atari emulator don’t work well with hardware keyboard and mouse — the apps fault, of course, but disappointing. The other two worked great.
– I was also able to install and run Dolphin Android (Gamecube/wii emulator). Unfortunately the machine is simply to slow to run any games (tried 4 game cube games). Even with the hardware GL acceleration the games ran at 7-10 fps but seemed backlogged on CPU as well, don’t really work.
– It would be nice to boot into Ubuntu or another stock Linux distribution to make the device more useful, but the device ships with Android installed onto its internal eMMC memory and the bootloader seems to not recognize bootable SD card medium.

Ryan
Guest
Ryan

And I should mention that the actual hardware is rock solid. Great keyboard, excellent metal enclosure. Well built, looks great.
