After showing pictures of Xiami Mi Box Mini, it’s now time for a “review”, but a bit different from my other reviews, as Xiaomi tiny media player is much different. First the firmware is in Chinese only, and there’s only one external port HDMI output. So first I’ll show the user interface is Chinese, then explain how you can install your own Android apps, and finally run some benchmark to evaluates Mediatek MT8568, Wi-Fi and storage performance.
The device is super small, but in my case it was almost too big, as it takes enough space to potentially cause problems with the adjacent plug.
This little issue will of course depend on your power extension. You then need to connect the 1.5 meter HDMI cable, which should be long enough for most setups, and you’ll see some guide asking you to remove the plastic sheet under the battery on the Bluetooth remote, and showing how to use the remote (I guess).
I’ve recorded a video of the user interface with Zidoo X9 recorder to show what you’d get.
So if you can’t read Chinese, you’ll be up for a struggle, and the only think you may be able to use is Miracast function, although I had mixed luck making it work with my mobile phone (M6752). Alternatively, there’s a QR code in the user manual linking to an app that will allow you to display your mobile’s photos and videos on the big screen.
If you are an oversea Chinese you may have though it could have been a nice option to watch Chinese shows and movie online, but unfortunately most of the content is only copyrighted for China viewing, or you’d need to setup a VPN.
There’s an option to enable adb.
But I had no luck connecting to the box with adb over Wi-Fi, and whatever setting I choose adb port is not open.
sudo nmap -sS 192.168.0.109
Starting Nmap 6.40 ( http://nmap.org ) at 2015-04-03 16:27 ICT
Nmap scan report for 192.168.0.109
Host is up (0.0065s latency).
Not shown: 994 closed ports
PORT STATE SERVICE
1080/tcp open socks
5000/tcp open upnp
7000/tcp open afs3-fileserver
7100/tcp open font-service
9003/tcp open unknown
9876/tcp open sd
MAC Address: 10:48:B1:95:5D:86 (Beijing Duokan Technology Limited)
Nmap done: 1 IP address (1 host up) scanned in 28.07 seconds
Finally, as I tried the box, I got a pop-up for a new firmware that I happily installed. Unfortunately, I turned out to be a bad idea since this also removed the menu required to side-load apks to the board. So I had to downgrade the firmware, something that’s very easy to do since there’s an option for that.
A shop posted video instructions to help users change the language and load apps, including Google Play. To do so, click on the third icon from the left in the launcher, and select the fifth option on the top menu.
If the third Blue option is missing, then your firmware may have removed the option to side-load apps, and should you try to downgrade the firmware as mentioned above. If you can’t do that, I don’t know other solutions to change to English and install apps.

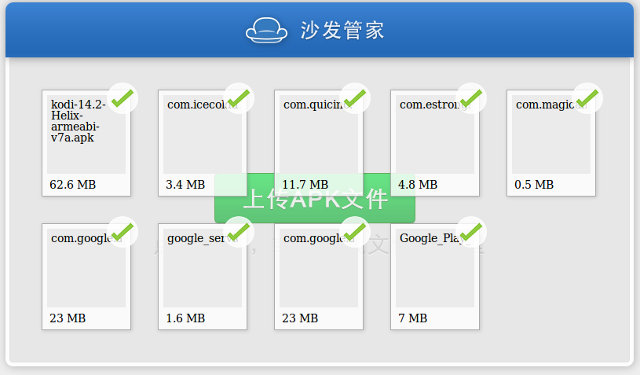

A bunch of apk have been provided, including Google services, Google Play, and YouTube, but unfortunately, so the only one you really need to download is Shafaguanjia.apk, as it will allow you to access Android settings, and change the language and input method, as well as upload more apk, which may fail with the Xiaomi uploader. Once the file is transfered to Mi Box Mini, you’ll get the usual installation prompt asking to review permissions before installation, and installation is complete, you should see “Shafa Market” app (in Chinese) shown in the right of the main screen.
Start the app, select the Setup icon to enter the “standard” Android settings, scroll down until your the the options for Language (“A” icon), select the first options, and you should be able to select English, simplified Chinese, or traditional Chinese as shown in the picture below.

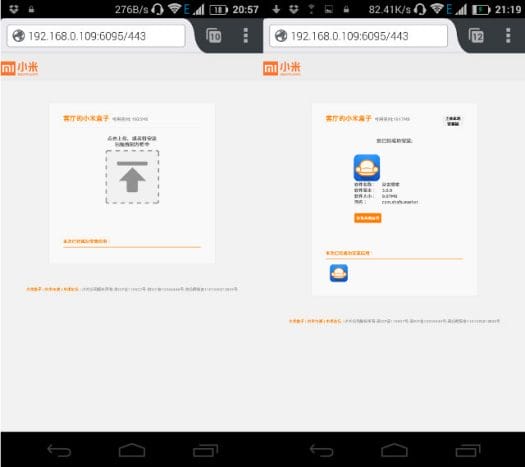

Now get a bunch of apk you want to install, for example with APK Downloader, and since the default web uploader does not seem to work for all apk, instead go to the last option to the right of the top menu in Shafa market, and click on the bottom right icon (Computer + Smartphone) in order to get another address to upload, for example http://192.168.0.109:8899.
The webpage is similar to the Xiaomi one, with a single green button to browse your local storage and install apps.
If you want to see I’ve shot another video with the user interface in English and a few extra apps.
Since I forgot to include Kodi in the video above, and I’m sure some people would ask, I’ve also tried to play a few samples including Sintel Blu-ray in Kodi 14.2 from a SAMBA share. It sort of work for some videos, but in many cases the system struggle to have a decent framerate, or there are massive artifacts.
Mediatek MT8685 is a completely new processor to me, so I had to run CPU-Z first.
The box gets 21,091 points in Antutu 5.6.1, but the score is probably higher than it should because it was only performed on part of the screen (830×1080 instead of 1920×1080), hence affecting 2D and 3D graphics scores positively.
I’ve also run Vellamo 3.1 which in most cases places Xiaomi Mi Box Mini close LG Nexus 4 smartphone powered by Qualcomm Snapdragon S4 Pro quad core processor (APQ8064).
I’ve also tried to run 3DMark, but I could not download Ice Storm package due to input issues.
I can’t report about Wi-Fi performance either since ES File Explorer failed to copy a file from SAMBA to flash, and I could not use iperf, again due to input issues as the software keyboard would not show up when needed…
I still managed to run A1SD bench to evaluate internal storage performance, but there’s no little storage, that the utility detected Cache reads. The reported read speed is 57.11 MB/s, and write speed is 12.41 MB/s.
If you live in China, Xiao Mi Box Mini may be a nice little device giving you access to lots of content. If you can read Chinese, and live overseas, be prepared to setup a VPN to China, and you may access the many online videos and movies, but if you don’t read a word of Chinese, switching to English will require some efforts, and many apps won’t work as expected, unless possibly if you get a Bluetooth air mouse or Bluetooth keyboard and mouse. Provided the latter work, you could get a decent little box for web browsing, some casual gaming, watching videos and so on. Just don’t expect Google Play, YouTube. etc… to work.
In case you’d still like to give it a try, GearBest, who kindly provided a sample for review, sells it for $42.98 with coupon MIBOX, but you can also purchase on other websites such as GeekBuying, Aliexpress, or eBay for around $50.
