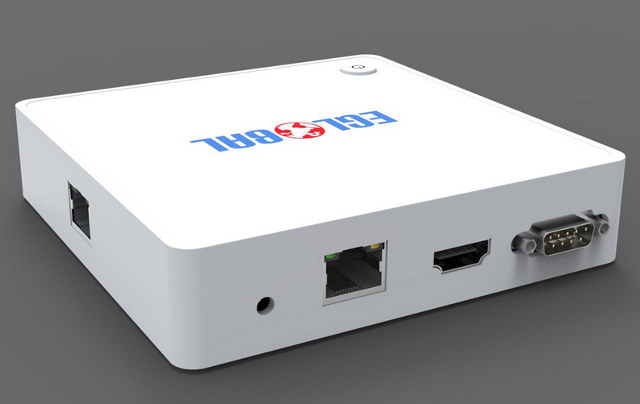

Eglobal K8 Z3735F mini PC Includes Up to 2 Ethernet Ports, a COM Port and an IR Receiver (As options)

Most mini PCs based on Intel Atom Z3735F have very similar specifications, but at least one company – Eglobal Technology – is providing some extra options with their mini PC as they offer dual Ethernet (which they call “Router”), a COM port and an IR receiver as options.

Eglobal_K8 Eglobal K8 specifications:

  • SoC – Intel Atom Z3735F “Bay Trail” quad core processor @ 1.33 GHz (Bust freq: 1.83 GHz) with Intel HD graphics
  • System Memory – 2 GB DDR3L
  • Storage – 32 GB eMMC + micro SD card slot (up to 128GB)
  • Video Output – HDMI
  • Audio I/F – HDMI, 3.5mm earphone jack, 3.5mm microphone jack
  • Connectivity
    • Standard – 1x 10/100M Ethernet,  802.11 b/g/n Wi-Fi, and Bluetooth 4.0
    • Option – One extra 10/100M Ethernet port
  • USB – 4x USB 2.0 host
  • Misc – Power Button, optional IR receiver, optional COM port (DB9)
  • Power Supply – 5V/2A
  • Dimensions – 107 x 107 x 25 mm
  • Weight – 250 grams

The mini PC ships with a power adapter, and a “mini HDMI” cable, and Windows 8.1 is pre-installed, but probably not activated. This could also be used as a low power Linux server, although the interfaces are only Fast Ethernet, and 802.11 b/g/n WiFi.

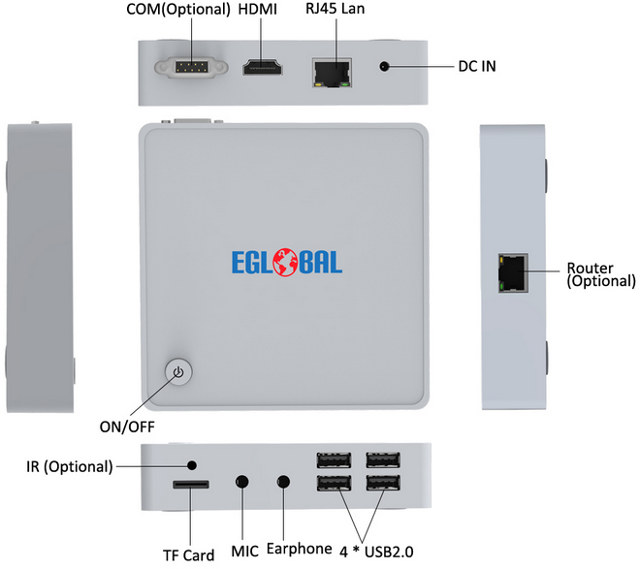

Z3735F_Dual_Ethernet_serial_portThe device is available on Aliexpress, where you have two options: “No router” for $113.04 and “With Router” for $127.29, both prices including shipping. It’s pretty clear what you get with the “No router” option, and although you should get the extra Fast Ethernet port with the second option, it’s unclear whether the COM port and IR receiver are included.  I did not get any answer to my online chat questions.


Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus

3 Replies to “Eglobal K8 Z3735F mini PC Includes Up to 2 Ethernet Ports, a COM Port and an IR Receiver (As options)”

  1. @JL
    Intel Atom Z3735F have very big problems with the heating … mostly on tablets (see Dell & Lenovo) ….
    wondering if with cherry trail SoC these heating issues are still present.

  2. Why do they keep putting 100M ethernet ports on these things.
    Is it because internally the chips always work over USB2.0?

  3. @ovidiu
    I’ve noticed the boxes get hot, but the ones I used works OK.
    I’m going to find out soon about Cherry Trail, as I’ve been told a Tronsmart Ara X5 sample was shipped to me.

    That’s a tablet SoC, so they can only use USB 2.0 interfaces + an external USB to Ethernet chip.
    They could also do USB 2.0 to Gigabit Ethernet, but that would be limited to 480 Mbps or less.
