So far, I always assumed development boards specifically designed for automotive applications would only be available to companies in the car or truck business, but as I wrote about FOSDEM 2016 schedule yesterday, I found out that one of the talk with cover FOSS software stacks that are available for automotive, and usable on hobbyist boards such as Raspberry Pi 2 and Minnowboard Max, but also on Renesas R-Car M2 Porter board specifically designed for automotive infotainment applications.

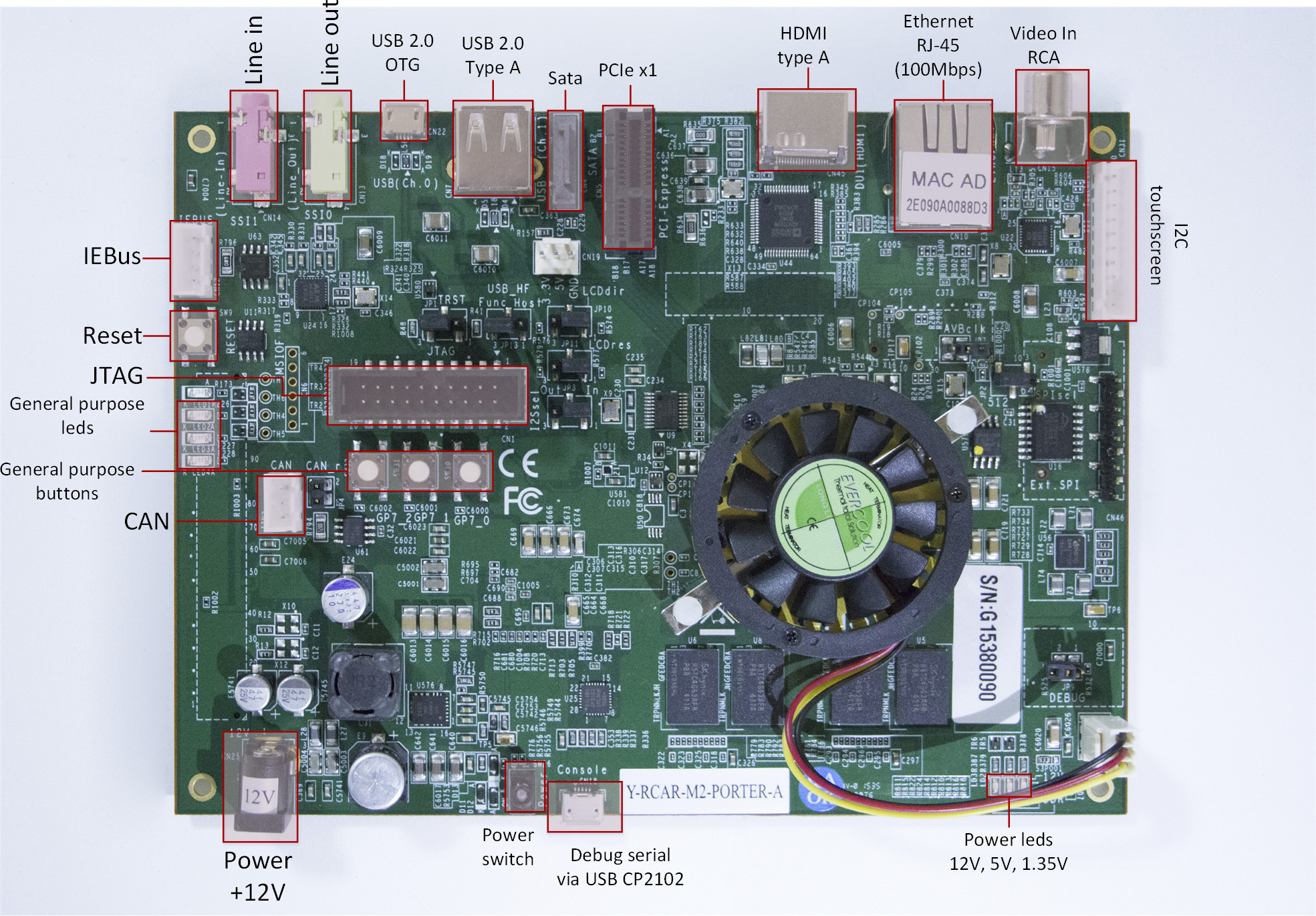

Renesas Port board specifications:
- SoC – Renesas R-Car M2 dual core ARM Cortex-A15 processor @ 1.5GHz with PowerVR SGX544MP2 GPU, Renesas 2D graphics processor, and Multimedia Engine SH4A @ 780 MHz
- System Memory – Dual channel 2GB DDR3
- Storage – On-board 4 MB SPI, and 64 MB SPI, 1x SATA rev 3.1 connector, 1x SD card slot, and 1x micro SD card slot
- Video Output / Display I/F – HDMI and LVDS + touchscreen
- Analog Video In – ADV7180 Video Decoder with RCA jack, NTSC/PAL/SECAM autodetection
- Audio codec – AK4643EN with 3.5mm jacks for Line In and Line Out
- Connectivity – 100 Mbps (debug) Ethernet and Ethernet AVB (Auio Video Bridge) connector
- USB – 2x USB 2.0 ports, 1x micro USB port that supports host, device and OTG modes
- Serial – CAN transceiver
- 1x PCI Express x1 slot
- EXIO connector
- IEBus (Inter Equipment Bus)
- Debugging – 20-pin JTAG connector, micro USB port for debugging
- Misc – Power LEDs for 12, 5 and 1.35V, power switch, 3 user buttons, reset button,
- Power supply – 12V/9A
- Dimensions – 170×125 mm

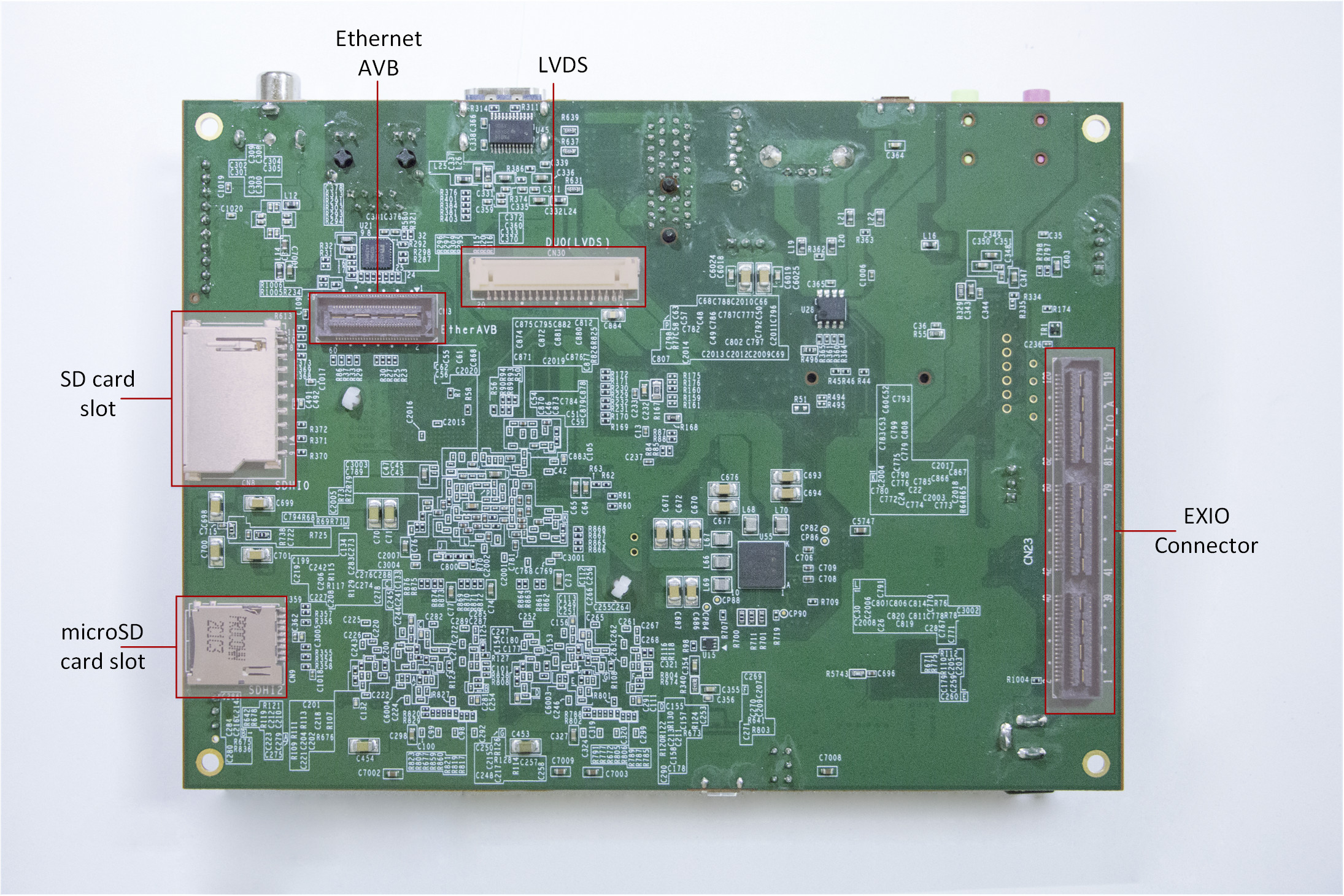

So the hardware is pretty interface with interfaces seldom found on hobbyist boards such as IEBus (automotive 2-wire protocol to connect multiple media devices), EXIO connector, and an Ethernet AVB bus. Video input would allow you to use some rear camera for example, LVDS and the touchscreen header a touchscreen display.
The board supports Linux built with the Yocto Project. No, I did not find at all that information on Renesas website, but instead on Porter board page on eLinux.org, which beside hardware information, including the hardware and setup guide, also provides a quick start guide to run an “Hello, World!” application with a Yocto build supporting both X11 and Wayland.
All that would not be any fun is you could not purchase the board, but luckily R-Car M2 Porter board is sold on Digikey for $360.
