NEXBOX T11 Cherry Trail Mini PC Includes a 2.5″ SATA Bay, Supports HDMI and VGA Output

It’s always possible to connect a USB hard drive to a mini PC, but it’s not quite as neat as having an internal drive, and it may not pass the wife test. NEXBOX T11 mini PC powered by Intel Atom x5-Z8300 processor addresses this issue by including a 2.5″ SATA bay on the bottom for the case of a SSD or HDD with up to 2 TB capacity.

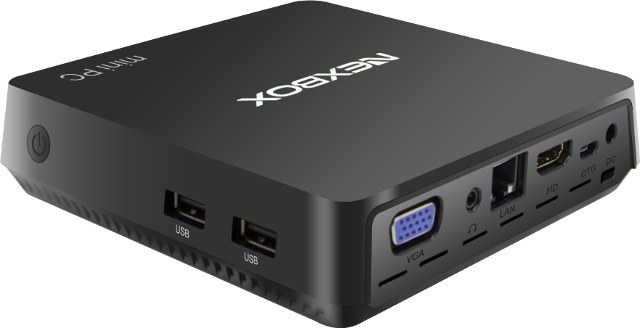

Nexbox_T11_mini_PCNEXBOX T11 specifications:

  • SoC – Intel Atom x5-Z8300 “Cherry Trail” quad core processor @ 1.44 GHz/1.84 GHz (turbo) with Intel Gen8 HD graphics
  • System Memory – 2 GB DDR3
  • Storage – 32 GB flash, 2.5″ SATA drive support, and micro SD slot
  • Video Output – HDMI and VGA
  • Audio Output – HDMI and 3.5mm audio jack
  • Connectivity – 10/100M Ethernet port, 802.11 b/g/n/ac Wi-Fi, and Bluetooth 4.0
  • USB – 3x USB 2.0 host ports, 1x USB 3.0 port, 1x micro USB OTG port
  • Misc – Power button
  • Power Supply – 5V/3A
  • Dimensions & Weight – TBD

The device is said to run a licensed version of Windows 10 Home.

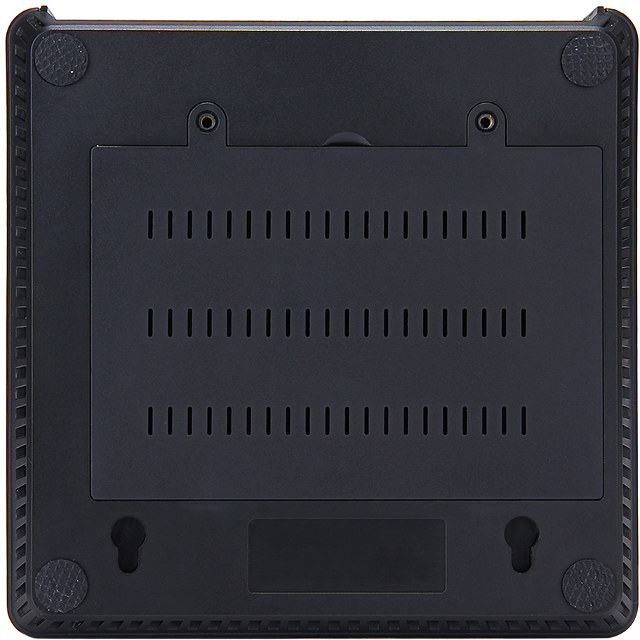

Cherry_Trail_mini_PC_SATA_Wall_mountThe SATA bay is just made like in laptops where you need to loosen two screws to take out the cover, insert the drive, and put the cover back. In some cases, an internal SATA bay may also improve performance compared to an USB drive, as the processor may support SATA and PCIe, but Intel Atom x5 processor do not support SATA, and the company confirmed they used a USB 2.0 to SATA bridge to implement that feature. That means you won’t get better performance, but at least your desk will be neater. You’ll also notice the product can be wall-mounted thanks to two holes on the bottom of the case.

NEXBOX T11 is sold for $136.99 on GeekBuying, and $148.90 on GearBest but GBT11 coupon brings that down to $129.99. It is not the only Cherry Trail mini PC with SATA, as PiPO X6S also provides a 2.5″ SATA bay and Atom x5-X8300 processor with a different set of features (4GB RAM, 64 GB flash, 802.11ac, dual Ethernet, HDMI only…) for about $190 shipped.

You can also consult the manufacturer product page, where either T11 or T12 is used, but I’ve been told both are the same exact model.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

4 Replies to “NEXBOX T11 Cherry Trail Mini PC Includes a 2.5″ SATA Bay, Supports HDMI and VGA Output”

  1. …and it may not pass the wife test… -> now add only an integrated slimline slot and the wife will be completely happy, add an apple logo and she will even be interested…

  2. @onebir
    If the processor only has one USB 3.0 interface (I’m not sure about that), then they would have had to remove the external USB 3.0 port, or add a USB 3.0 hub internally bringing the cost up.

  3. Wonder why they’d do 10/100 Ethernet. I’d be the first taker if they spruce up the CPU to Skylake and put in Gigabit Ethernet.
