ARM Announces Mali Egil Video Processor with VP9 Decode, VP9 & HEVC Encode, and 4K @ 120 Hz Support

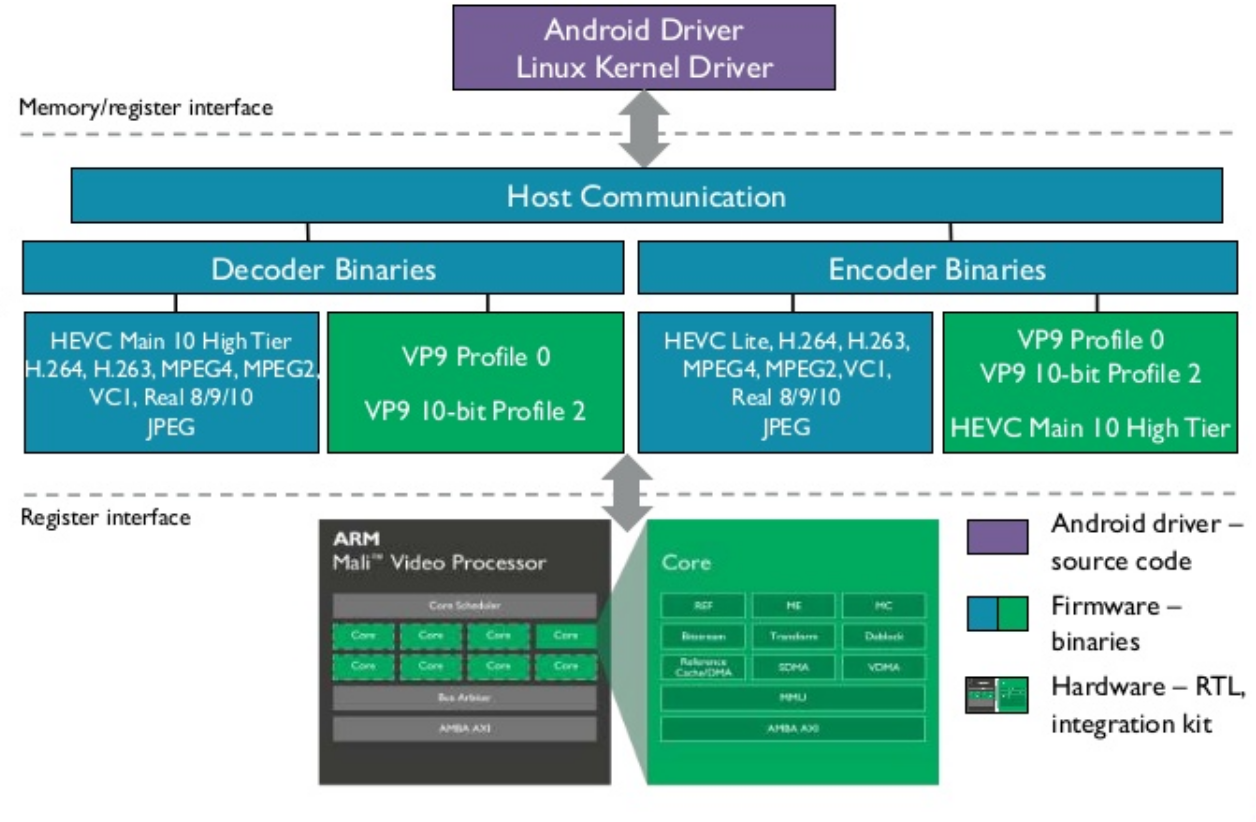

ARM has recently introduced Mali “Egil” video processor with support for VP9 Profile 0 (8-bit) and 10-bit Profile 2decoding, as well as VP9 8-/10-bit, and HEVC Main 10 encoding, on top of the currently supported codecs in Mali V550 VPU unveiled in 2014.

Click to Enlarge
Click to Enlarge

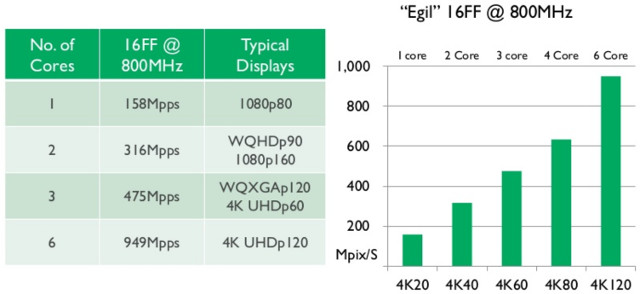

The new VPU can also support displays ranging from 1080p60 up to 4K @ 120 Hz depending on the number of cores chosen in the VPU, clocked at 800 Mhz, and manufacturing using 16 nm FinFET technology.

Mali_Egil_Resolution_4K_120HzMali Egil also brings some other improvements such as a redesign of the motion estimation engine, and finer granularity. From a user’s perspective, that means that 4K YouTube videos should be available in premium mobile devices soon, as well as higher quality video conference thanks to H.265 encode and decode.

You can find some more information in the “Introduction to the Mali Egil Video Processor” presentation slides.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

11 Replies to “ARM Announces Mali Egil Video Processor with VP9 Decode, VP9 & HEVC Encode, and 4K @ 120 Hz Support”

  1. The blog post on ARM also has some info about software support:

    Brand new in Egil is VP9 encode and decode capability, making it the first multi-standard video processor IP to support VP9 encode. We’ve also significantly enhanced HEVC encode and deliver an android reference software driver. Whilst currently OpenMaxIL based, this will be uprated to V4L2 as this is introduced to future versions of Android. This driver takes responsibility for setting up a particular video session, allocating memory, gating power dynamically and dramatically reduces the CPU load. The built in core scheduler manages multiple encode/decode streams and maps single or multiple video streams across multiple cores for maximum performance.

    1. Actually, that’s not so. Since MediaCodec has been introduced in android 4.1, it’s perfectly possible to encode video with hardware support. Been doing that for years.

  2. It’s just a shame that we’re unlikely to see this in a chip for at least a year and then it’ll most likely be the single or dual core version, as to not to waste precious silicon on something that’s actually useful…

  3. Arm sure don’t choose a naming standard that helps the users recognise which graphics are faster, better.

  4. @Gaetano
    Broadcom normally uses their own VideoCore GPU, but so I guess it won’t be used in their SoC, but something similar could be a possibility.

    @theguyuk
    Egil is just the codename. Their previous video processor, where called Mali V500, Mali V550, so “Egil” video processors could eventually be called Mali V600 or something like that.

  5. Gaetano :
    Can you imagine this inside a new “Raspberry PI4”??!? It would be really amazing …..

    Because Raspberrys are well known for their strong GPU lol

  6. The text says “The new VPU can also support displays ranging from 1080p60 up to 4K @ 120 Hz”, but the table shows 1080p80.

  7. The real question IMO is whether an SOC with the 3/6 core versions will be cheap enough to push 4K HFR to a bunch of devices
