Intel Apollo Lake NUC6CAYS & NUC6CAYH NUC mini PCs Specifications Released

Intel Apollo Lake is the next generation of low power processor family that should replace Braswell Celeron processors, and Fanlesstech got hold of the specifications for two upcoming “Arches Canyon” NUC6CAYS and NUC6CAYH NUCs (Next Unit of Computing) mini PCs based on the processors, as well as the 2016-2018 roadmap for the complete (consumer grade) Intel NUC family.

Intel_Apollo_Lake_mini_PCThe only differences between the two models are that NUC6CAYH is a barebone model without memory or storage, nor operating system. So I’ll just list NUC6CAYS specifications:

  • SoC – Intel Celeron Jxxx quad core processor @ x GHz to y GHz (burst) with Intel HD graphics up to z MHz (10W TDP)
  • System Memory – 2GB DDR3L-xxxx SO-DIMM (dual channel), upgradeable up to 8GB DDR3L-1866
  • Storage – 32GB eMMC flash, 2.5″ SATA3 bay for 9.5mm hard drives, SDXC slot with UHS-I support
  • Video Output – HDMI 2.0 (4K @ 60 Hz), VGA
  • Audio – Up to 7.1 channels via HDMI, 3.5mm headset jack, 3.5mm rear speaker/TOSLINK combo jacl
  • Connectivity – Gigabit Ethernet (RJ45), Intel Wireless AC-316x M.2 module for 802.11ac 1×1 WiFi and Bluetooth 4.2 with internal antennas
  • USB – 2x front USB 3.0 ports at the front (yellow one for charging), 2x rear USB 3.0 ports, 2x internal USB 2.0 ports via header
  • Misc – IR receiver, Kensington lock
  • Power Supply – 12~19V DC input (65W wall-wart power supply included)
  • Dimensions – 115 x 111 x 51 (plastic casing with inner metal structure)

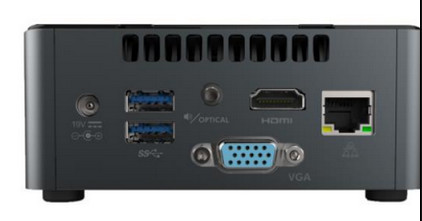

Intel_Apollo_Lake_NUCNUC6AYS will include Windows 10 Home x64 and Intel Remote Keyboard. Other features include multi-color front panel LED light ring, built-in dual array microphones, VESA mounting plate, front-panel and AUX_PWR internal headers. The NUCs will come with a 3 year warranty. Intel does not appear ready to give the complete SKU and operating frequency of the processors, but the good news is that Apollo Lake will be the first low power Intel processors to support HDMI 2.0 allowing for 4K output at 60 Hz.

Click to Enlarge
Click to Enlarge

The 2016-2018 NUC roadmap above was also “leaked” with more powerful Core i3, Core i5 and Core i7 NUCs. The first Apollo Lake NUC will be released in Q4 2016 with Windows 10, and the barebone version in Q1 2017.
