Shenzhen Shiningworth has just sent me the first Amlogic S912 Android TV box for review with their MXQ Plus M12N model. The first part of the review will focus on specifications, accessories, and hardware design, and in the second part I’ll connect and boot the device to make a thorough review of the firmware.

MXQ Plus M12N Specifications

The specifications are pretty standard and comparable to the ones of yet to launch Amlogic S912 TV boxes:

  • SoC – Amlogic S912 octa-core ARM Cortex A53 processor @ up to 2.0GHz with ARM Mali-820MP3 @ up to 750MHz
  • System Memory – 2GB DDR3
  • Storage – 16GB eMMC flash and SD slot up to 32GB
  • Video Output – HDMI 2.0a up to 4K @ 60Hz with CEC and HDR support, and AV port (composite)
  • Audio Output – HDMI, AV (stereo audio), and optical S/PDIF
  • Connectivity – Fast Ethernet, dual band WiFi 802.11 b/g/n/ac, Bluetooth 4.0
  • USB – 2x USB 2.0 ports including one OTG port
  • Misc – IR receiver, status and network LEDs
  • Power Supply – 5V/2A
  • Dimensions – 10.8 x 10.8 x 1.9 cm
  • Weight –  210 grams

The TV box runs Android 6.0.1 with Kodi 16.1.

MXQ Plus M12N Unboxing

The package is black with golden text reading “MXQ Plus” and “Bigger than Bigger”, and does not have trademarked text or logo that may cause troubles at customs.

MXQ_Plus_Package
The bottom of the package lists the main specifications, and shows a C44EAC MAC address registered by Shenzhen Shiningworth,

Click to Enlarge
Click to Enlarge

The TV box ships with an IR remote control taking two AAA batteries, an HDMI cable, a 5V/2A power supply, and a user’s manual in English.

Click to Enlarge
Click to Enlarge

If the box looks familiar, it’s because it’s almost the same casing as ARNU Box Mach 10 64-bit also manufactured by Shenzhen Shiningworth.

Click to Enlarge
Click to Enlarge

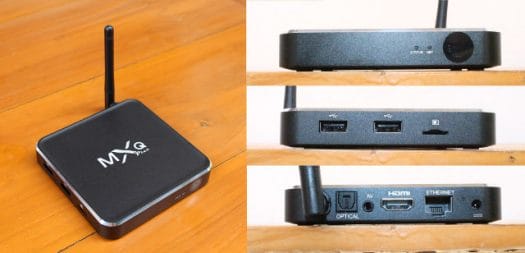

The front panel includes Status and Net LEDs as well as the IR receiver window, one of the side comes with two USB 2.0 ports and micro SD slot, while the rear panel features the WiFi antenna, optical S/PDIF, AV and HDMI video outputs, a Fast Ethernet port, and the DC jack.

Unboxing video.

MXQ Plus M12N Teardown

In order to open the device, you’ll need to take out the four sticker rubber pads on the bottom, and loosen four screws.

MXQ_Plus_Model_M12N

The bottom of the board features two NANYA NT5CB256M16DP-EK DDR3-1866 SDRAM chips (1GB) and not much else.

Click to Enlarge
Click to Enlarge

The board can easily be pulled from the case, without having to remove extra screws or plastic clip. Just be careful due to the WiFi antenna.

Click to Enlarge
Click to Enlarge

Thermal design is interesting as it does not include an heatsink at all, but instead two thick thermal pads are sticked to the top of the metal case, and cover Amlogic S912 when the box is closed. I’m not quite sure how well this is supposed to work.

Click to Enlarge
Click to Enlarge

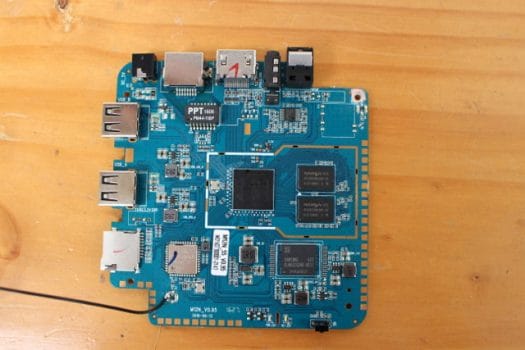

Beside Amlogic S912 SoC right in the middle, we’ll find two more NANYA RAM chip to bring the total to 2GB, as well as a 16GB Samsung KLMAG2GEND-B031 “high performance” eMMC 5.0 flash capable of achieving 250MB/s read speed and 50 MB/s write speed in theory, as well as 6000 random R/W IOPS. I’m a bit surprised by that, as Shenzhen Shingingworth customer often use slower storage, but the flash chip used here looks pretty good. Network connectivity is achieved using PPT 1608 PM44-11BP transformer for 10/100M Ethernet, and Ampak AP6255 module for WiFi 802.11 b/g/n/ac and Bluetooth 4.0 LE connectivity. DIO1233 audio driver can also be found close to the AV port, which also servers as the “hole” for the recovery button. The serial console (UART) is located between the micro SD card and one of the USB ports and is clearly marked with Tx, Rx, 3.3V and GND. The board’s part number for my sample is M12N_55_V0.95.

I’d like to thank Shenzhen Shiningworth for providing a review sample, and resellers and distributors interested in purchasing in quantities can contact the company via their website, or Alibaba where the device is listed for $52 for samples, and $47 per unit for orders over 1,000 pieces (FOB prices). I’ve not been able to find the box on retail websites yet, and it will probably be found under various names such as M12N, MXQ Plus S912, or ENYBOX X2. [Update: The device is sold as Acemax M12N for $69.99 on GearBest, and $82.99 on Aliexpress]

[Update: The second part of M12N TV box review is now up with tests for Kodi, Android, benchmarks, and more]
