Sonoff TH16 is a WiFi 16A relay that can take external sensors via a 2.5mm jack, while Sonoff Pow is a WiFi relay capable of measuring power consumption. Both have been designed by ITEAD Studio, and feature Espressif ESP8266 WiSoC. The company sent me both items for review, and I’ll start by checking out the hardware a little more closely than what is possible during the product announcement.

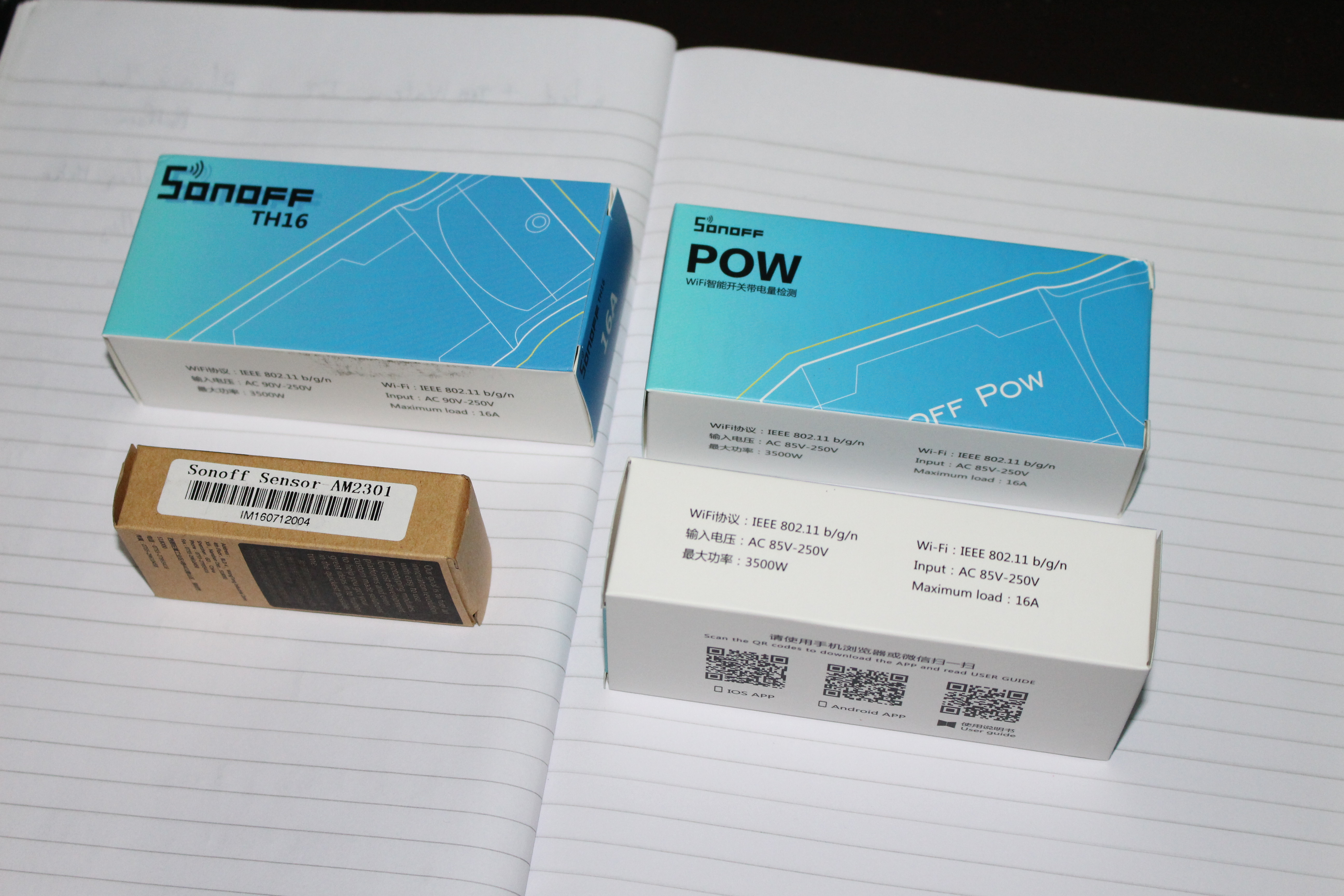

I received Sonoff TH16 together with Sonoff AM2301 temperature and humidity sensor, which I’ll use to use to control an outdoor water pump and gather temperature and humidity data, as well as two Sonoff POW relays,which I plan to use to measure power consumption in my office, both from the power outlets and my aircon. All three WiFi relays support 3500 Watts, and 85 to 250V input.

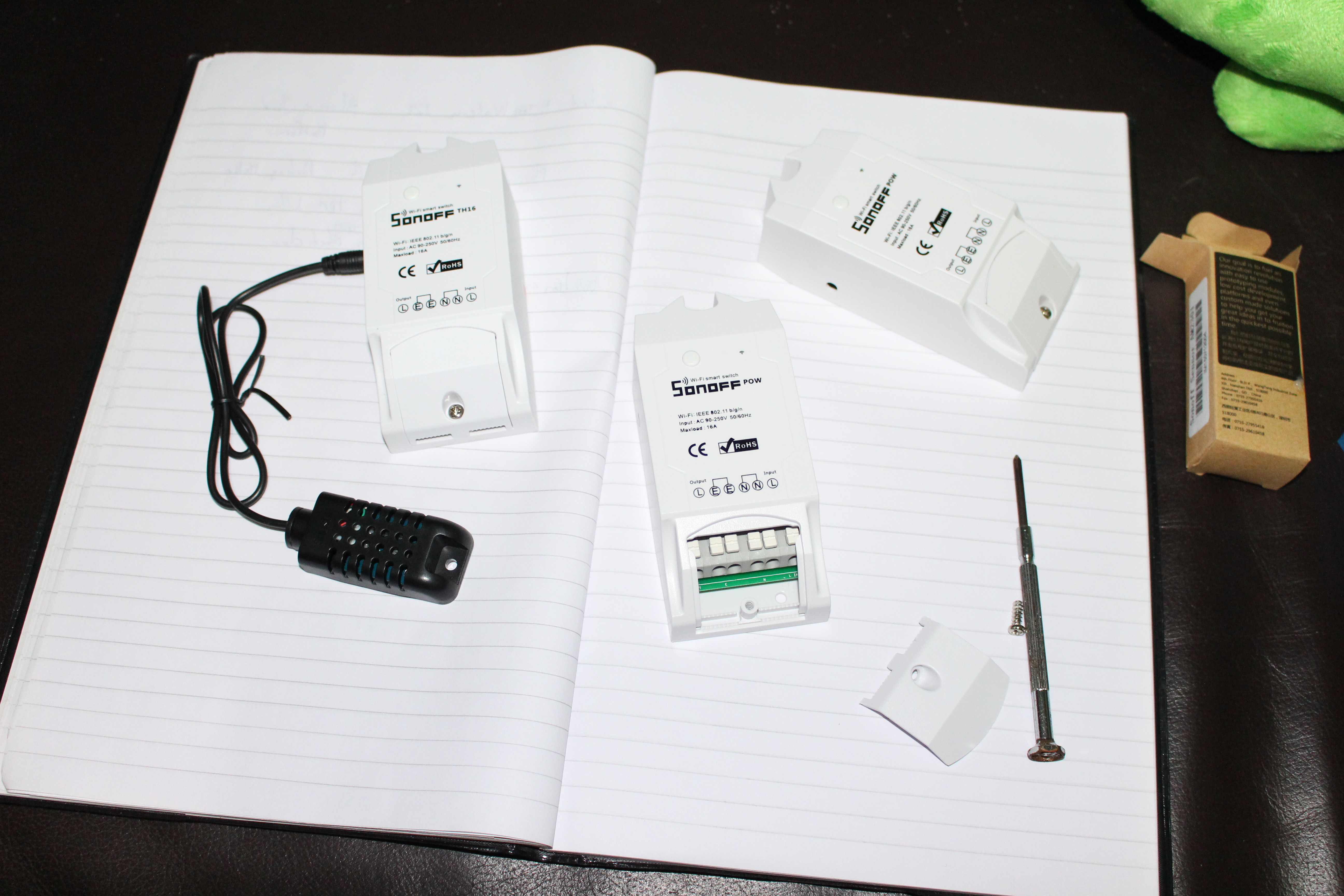

Both Sonff TH16 and POW are using the exact same case, but the hole for the sensor jack is not used in Sonoff POW.

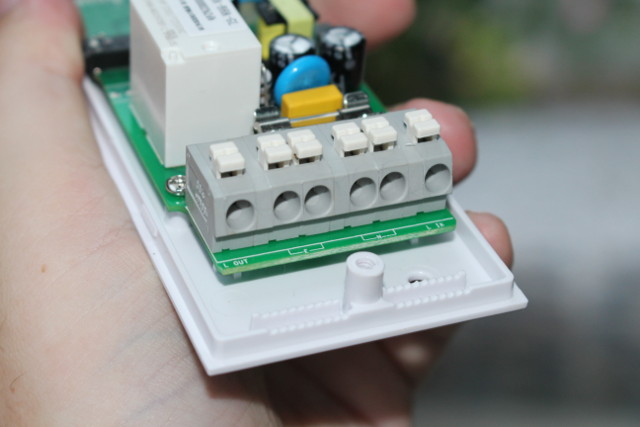

There’s a cover to protect the mains cables tightened with a single screw. Input and Output live terminal are on both sides of the relays, will the ground/earth (E) and neutral (N) can be accessed from the middle terminals.

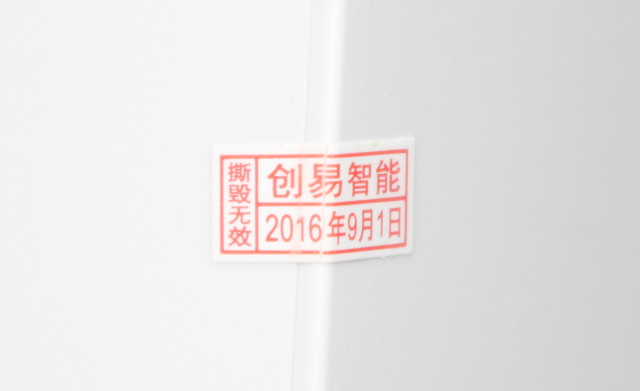

The company promotes their devices as hackable, but still decided to include a sticker that breaks if you try to open the case. If you bought the device from China, the warranty probably does not matter considering the low price of the device, but if you bought locally and intend to use the warranty in case something breaks, it may be voided if you open the case to flash your own firmware.
Opening the case is very easy. First remove the terminal cover by loosening the screw, and then use a sharp and rigid plastic tool to separate both part of the case. I’ve started with Sonoff POW.

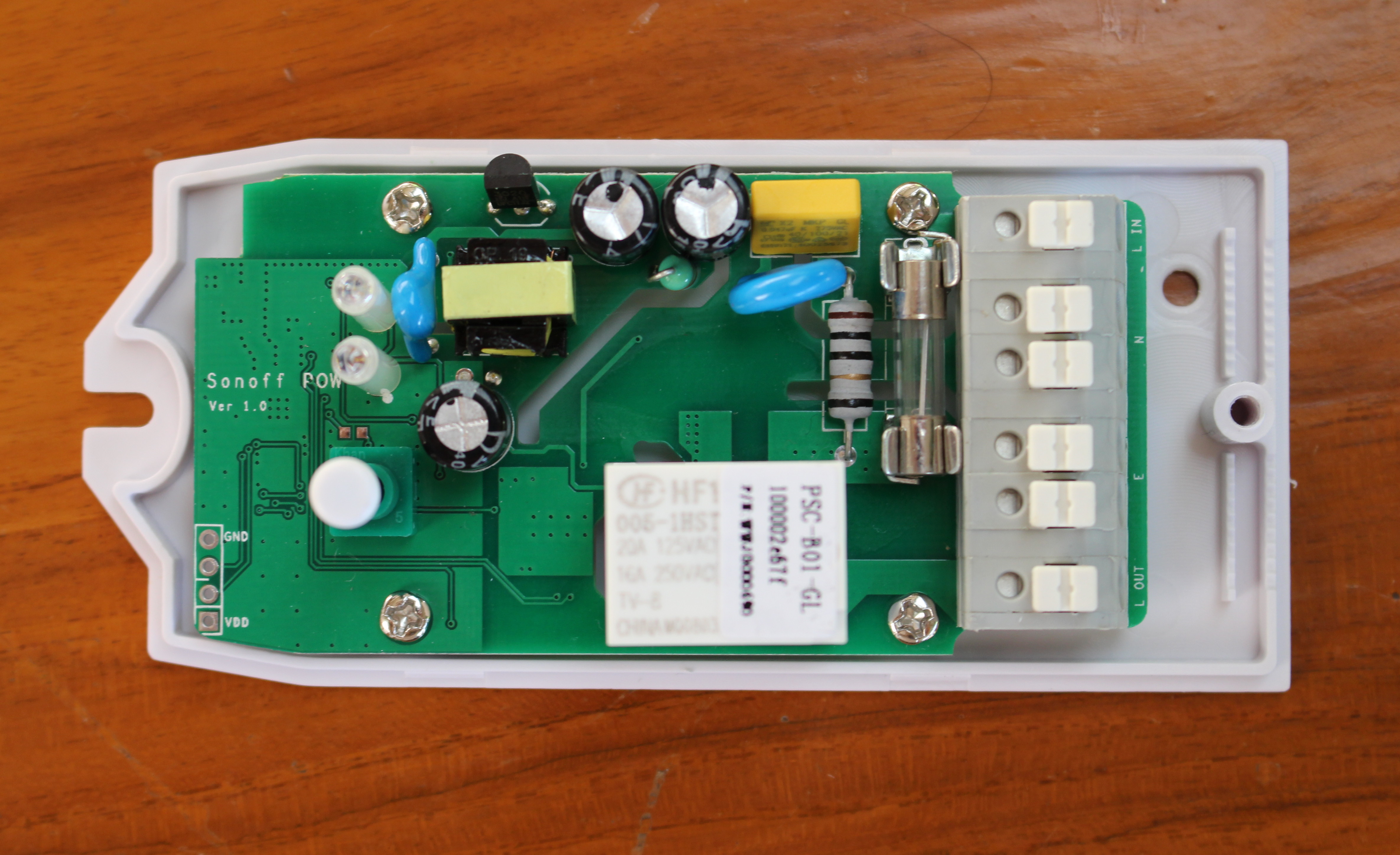

You’ll find the 4-pin for serial access in order to flash and/or debug your own firmware, the mauin button, two LED, a 16A relay, the 6 input and output terminals, and I’ve glad to see a fuse for safety. Talking about safety, ITEAD has not applied for UL, ETV, or TUV safety certifications (yet), but at least they now have CE certification for all their most recent Sonoff modules.

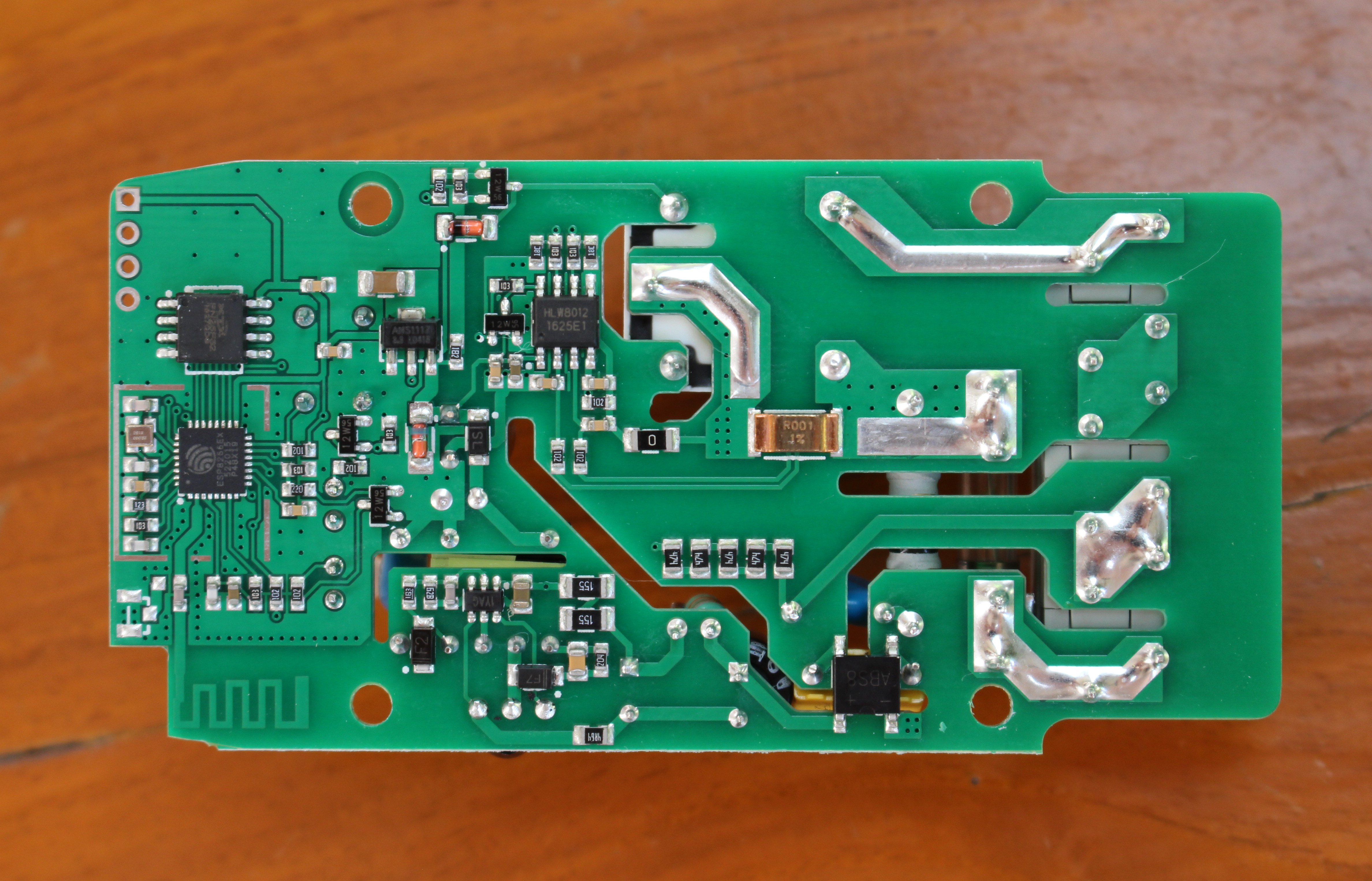

We’ll find ESP8266 SoC on the bottom of the board with a PCB antenna as far away as possible from active components to avoid interferences, thick solder for high voltage traces, and some holes in the PCB along high voltage traces likely for safety reasons.

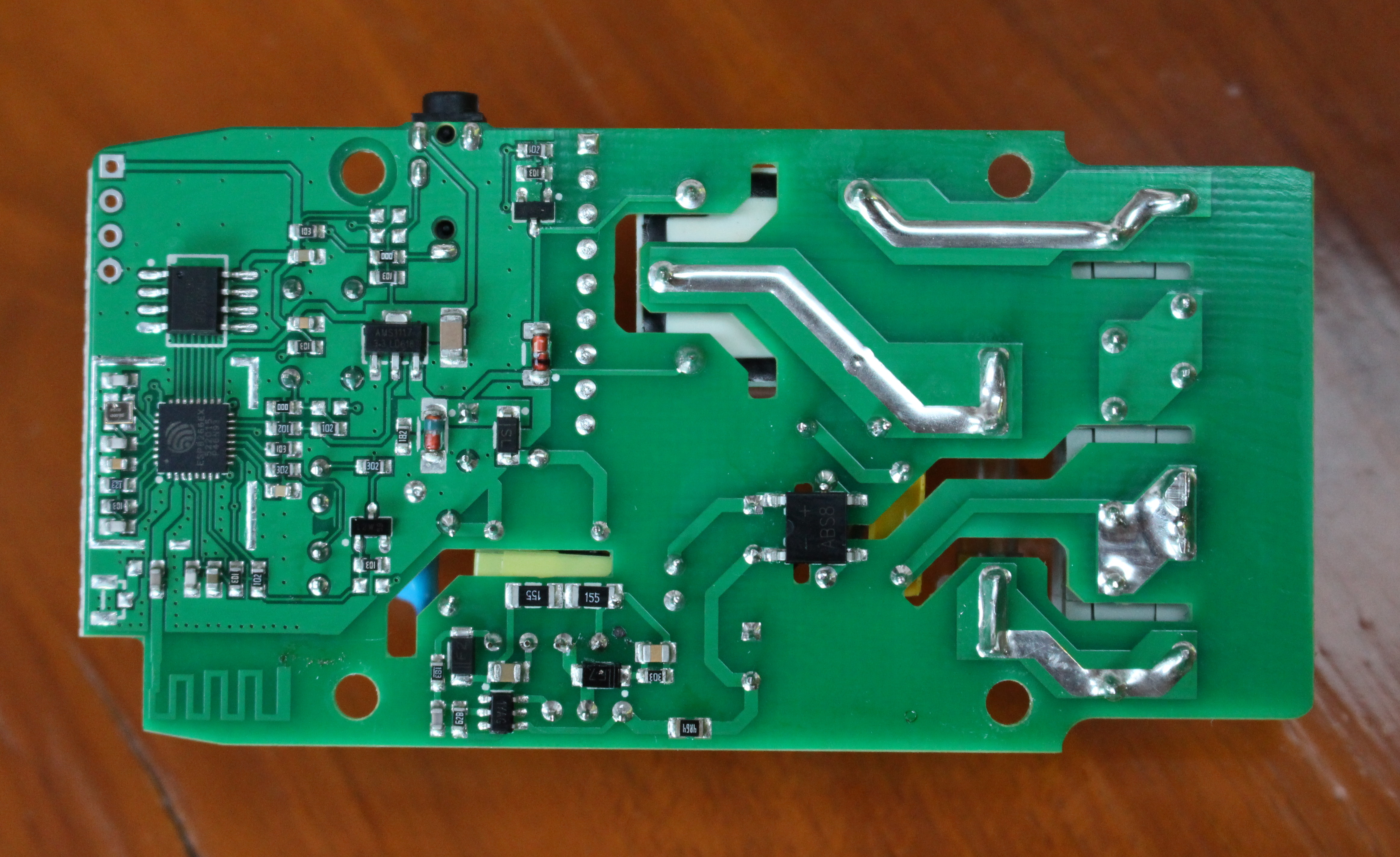

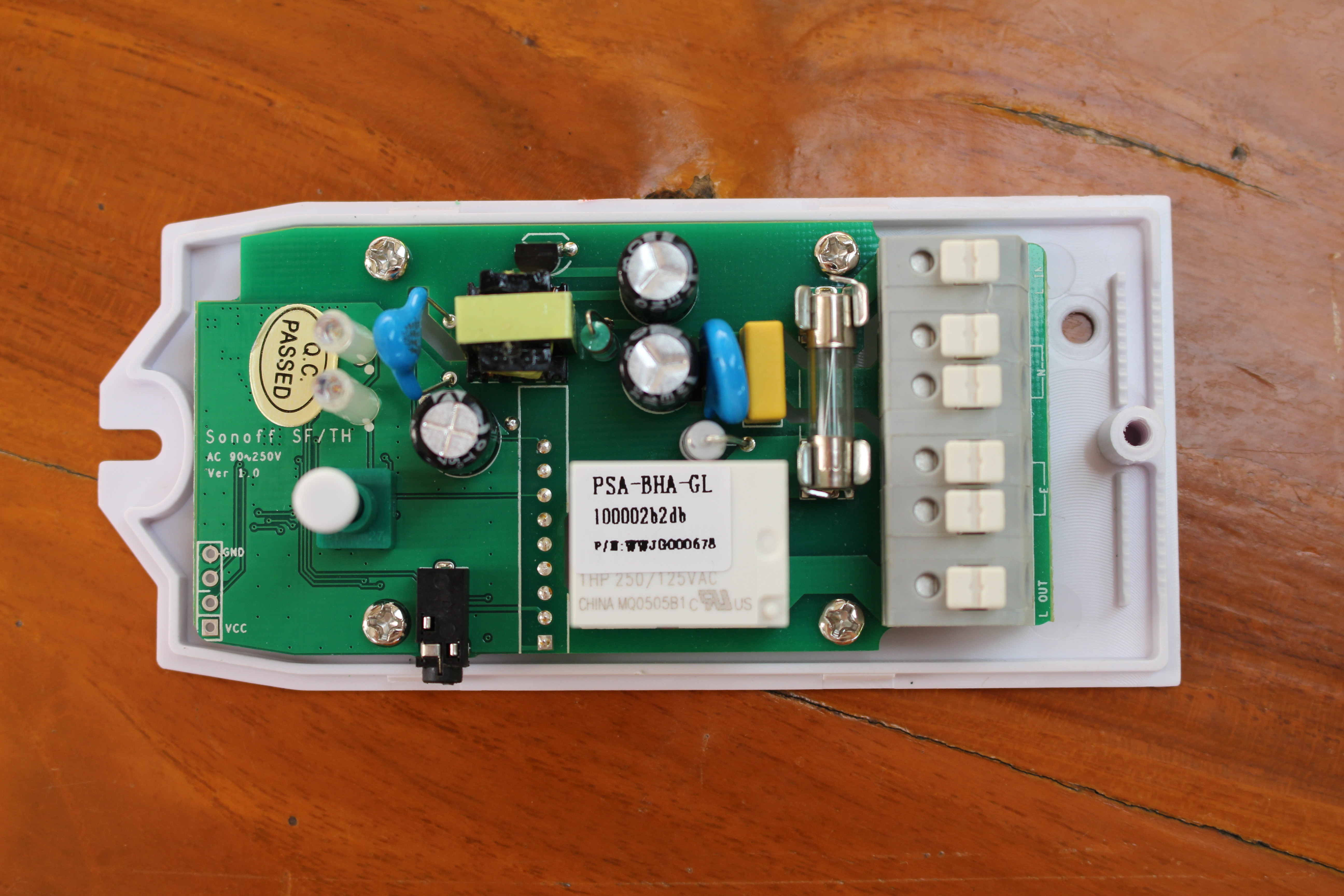

Unsurprisingly, Sonoff TH16 looks almost exactly the same expect for the added 2.5mm jack for the sensor modules.
The company also seemed to have designed the board to let people add a 9-pin connector to access more I/Os, but for some reasons all holes are filled with solder instead.

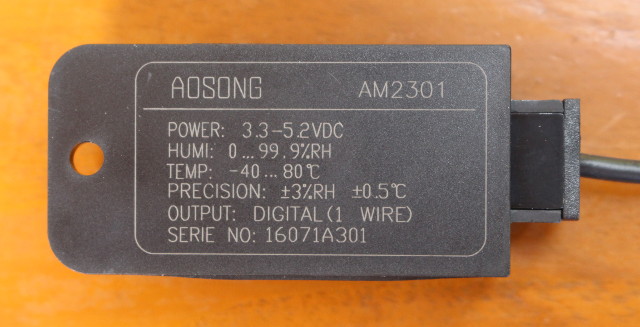

A close up on AM2301 reveals the main specifications of the sensors with 0 to 99.9% relative humidity range, and -40 to 80 C temperature range.

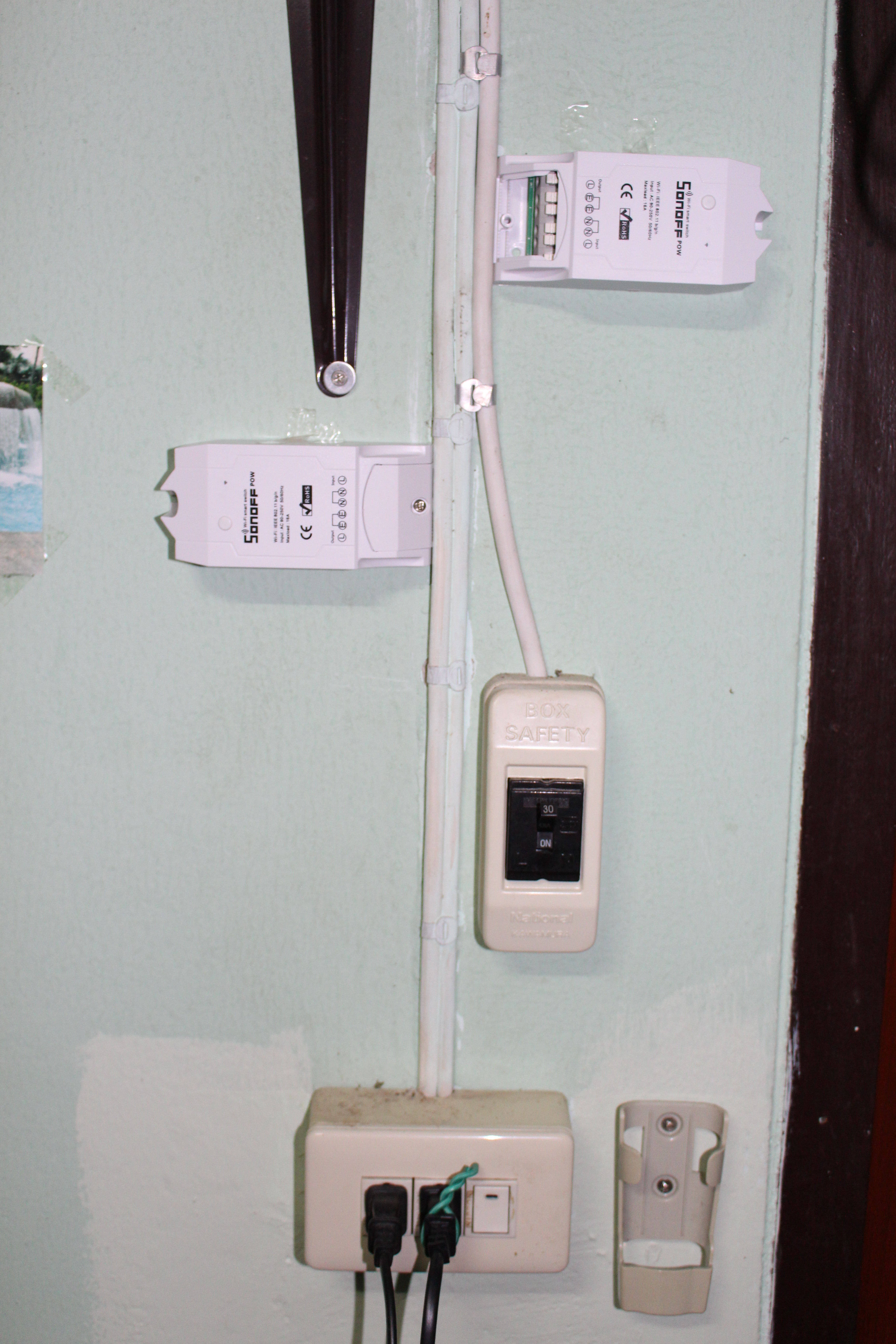

If I go ahead with my idea of connecting two Sonoff POW in my office the setup will look like the one below.
The one on the left will measure power consumption from the two outlets where all my equipment is connected, I’ll leave the center cable alone (the light), and the one installed on the right would measure my aircon power consumption. Once I cut the cables, and connect one part to Sonoff POW, the rest of the cable will be too short, so I had to get cut two short cables and re-cable the gang box, and the circuit breaker for the aircon. I would have wished they had arrange the terminals to make it easier to instead the modules within an existing circuit.
All four items can be purchased on ITEAD Studio website with Sonoff TH16 and AM2301 selling for respectively $8.60 and $4.0 on Sonoff TH page, while Sonoff POW goes for $10.50. Shipping is not included, but normally only adds a few dollars if you select registered airmail shipping, instead of EMS or DHL Express.
[Update: Part 2 of the review is up @ “Getting Started Guide for Sonoff TH16 ESP8266 Relay and Sensor using the Stock Firmware and eWelink Android App”
Part 3 of the review is available @ How-to Build and Flash ESPurna Open Source Firmware to Sonoff POW Wireless Switch
