$24 Winkel Arduino Compatible Board Includes WiFi, Bluetooth, 2.4 GHz RF, and an RTC (Crowdfunding)

Orange Pi Development Boards

There are plenty of Arduino compatible boards with WiFi based on ESP8266 WiSoC going for around $5 to $10, and with ESP32 processor, we are starting to have $15 to $20 boards with both WiFi and Bluetooth, but while ESP-IDF SDK has been progressing nicely, some parts of Bluetooth functionality are still not implemented. Winkel board offers an interesting alternative by offering WiFi, Bluetooth, 2.4GHz ISM, and an RTC for $24.

winkelWinkel board specifications:

  • MCU – Microchip/Atmel ATmega128 MCU @ 16 MHz with 128KB flash memory, 4KB SRAM, 4KB EEPROM
  • Connectivity
    • WiFi 802.11 b/g/n via ESP12E module based on ESP8266
    • Bluetooth 2.0 + EDR via HC-05 module
    • RF Radio – NRF24l01 2.4 GHz ISM radio. (Note: It might be possible to use it for Bluetooth LE connection, see here and there).
  • I/Os (through both Atmel MCU and ESP8266)
    • 38x Digital I/Os
    • 7x PWM Digital I/Os
    • 8x Analog Inputs
  • USB – micro USB port for programming and power
  • Misc – DS3231 Real-Time Clock + CR2032 battery slot, a few LEDS, reset button, jumper for OTA mode, ISP header, optional MPU-6050 Gyro+accelerometer mount
  • Power Supply – 5 V
  • Dimensions – TBD
Click to Enlarge
Winkel Pinout Diagram – Click to Enlarge

Winkel board can be programmed with the Arduino IDE via a micro USB cable, but you could also program the Atmel MCU over Bluetooth, and ESP12 module over WiFi without any cable required, a must if you want to update your firmware while the board is already in a case or hard to access. Thanks to the company’s “Smart Opt system” individual components can be power on and off individually, so that unused module don’t draw power. Source code for the firmware and code samples can be found on github.

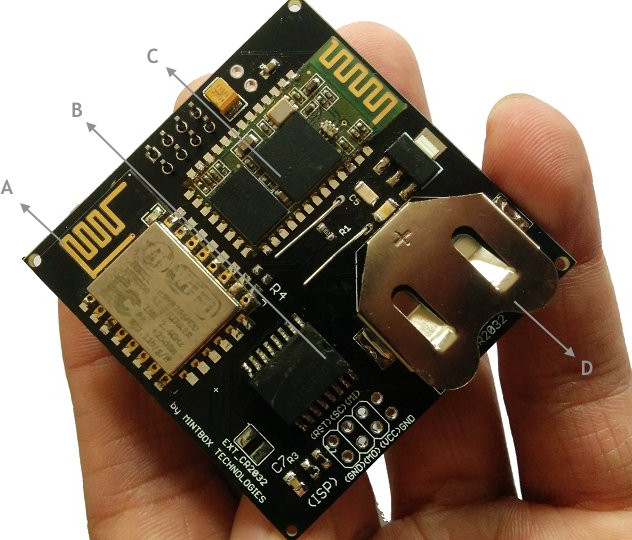

arduino-esp8266-rtc-hc05

Rishi Hegde of Mintbox Technologies informed me that the board has now been launched on CrowdSupply with the company aiming to raise at least $1080. A $21 early bird pledge should get you the board will all modules (the price will be $24 after the first 50 boards are gone), but if you only want the core boards, and add your own modules, you could also pledge $12 to get the board with Atmel ATMega128 MCU and a micro USB port only. Shipping is free to India and the US, but adds $9 to the rest of the world, with delivery expected in March 2017. More details may be available in Mintbox Technologies’ Winkel product page.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

3
Leave a Reply

avatar
3 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
JMJM Recent comment authors
  Subscribe
newest oldest most voted
Notify of
JM
Guest
JM

Please don’t confuse the ability to fake some limited BLE advertisement packets on the NRF24l01 with a real BLE connection

JM
Guest

@cnxsoft
Yes I’ve used it a couple of years ago (before <$3 BLE modules made this hack pointless)

However just because you can hack 16 bytes into the shape of an advertising packet on a single RF channel doesn't make it a BLE _connection_
