u-blox SARA-S200 RPMA Module Supports the Machine Network

Orange Pi Development Boards

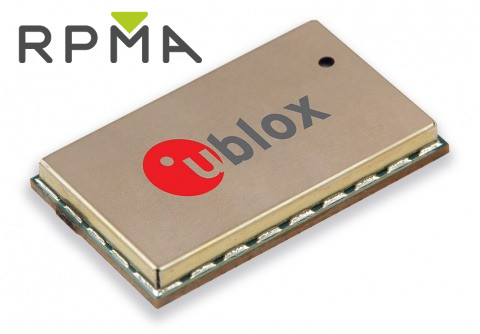

RPMA is one of the many LPWAN IoT communication standards, but it does not get as much press coverage as SigFox or LoRa because it targets larger scale deployments, and is not really accessible to individuals. It’s still used by companies in many countries, and u-blox has just released SARA-S200 RPMA module that will also work with the Machine Network, also relying on RPMA and managed by Ingenu.

u-blox SARA-S200 module specifications:

  • Connectivity
    • Wireless Frequency –  2.4 GHz ISM
    • Radio Spectrum – 80 MHz
    • Occupied Bandwidth – 1 MHz
    • Modulation – Dynamic – Direct Sequence Spread Spectrum (D-DSSS)
    • Multiple Access Scheme – Random Phase Multiple Access (RPMA)
    • Transmit Power – +22 dBm
    • Receive Sensitivity – -133 dBm
    • Data Throughput – 100 kB per day
    • Link budget – 176 dB (FCC/IC)
  • Host Interface – 7-wire SPI that includes handshaking for deep sleep modes
  • Power Supply – 3.2 V to 3.4 V (typ. 3.3 V); VCC BAT: 2.2V to 5.5 V
  • Power Consumption – Off: 0.1 μA (typ.); deep sleep mode: 19 μA (typ.); idle mode: 22 mA (typ.); RX: 107 mA (typ.); TX: 370 mA (typ.)
  • Dimensions – 26.0x 16.0 x 2.4 mm
  • Weight – 3 grams
  • Package – 96-pin LGA (Land Grid Array)
  • Operating temperature range – -40 to +85 °C
  • Certifications – FCC, ISED (formerly known as IC), RED (formerly known as R&TTE), and additional countries as deployed (pending)

The module is an update to the first RPMA module (NANO-S100), with cost and size optimization (65% smaller) that makes it suitable for application in the Smart Meter, Smart Building, Gas & Oil, Asset/Personnel Tracking and Agricultural industries. The module supports FOTA (FW updated over the air) with the ability to also update the application firmware. A development kit for SARA-S200 is also available, but I could not find any public information about it.

Pricing and availability have not been disclosed. For more information, you may visit u-blox SARA-S200 product page, or go to nternet of Things World at the Santa Clara Convention Center, CA (May 16‑18 2017), where u‑blox and Ingenu will showcase the SARA‑S200 module.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

3
Leave a Reply

avatar
2 Comment threads
1 Thread replies
2 Followers

Most reacted comment
Hottest comment thread
2 Comment authors
Deetsitchy n scratchy Recent comment authors
  Subscribe
newest oldest most voted
Notify of
itchy n scratchy
Guest
itchy n scratchy

@cnxsoft
Do you have any info how they achieve a 176dB link budget? High gain antennas? External PA? Taking the 22dBm output and the -133dB RX sensitivity into account, im still lacking a couple of dBs… Just like the neglectable amount of of 21dB 😉 after all in Europe you are allowed 10mW aka 10dbm (what a coincidence) EIRP per MHz of spectrum so the 22dBm might work under FCC only (as correctly mentioned next to the link budget). The only trick i could imagine is some additional processing gain, which is odd, as this is usually factured into the receiver sensitivity figure.

Deets
Guest
itchy n scratchy
Guest
itchy n scratchy

@deets
And what does this tell us? It sounds like the marketers guide to RF…

This would be my favourite snippet:
Link budget is the end result of combining receiver sensitivity, transmission power, antenna gain, legal restrictions in various regions, the natural propagation of the band chosen and *ways to enhance each*.
–> unfortunately they wouldn’t mention the magic, most likely some FEC or SS but they give no hint.

But then i stumbled over this highlight:
It’s like RPMA has super sensitive ears that are able to hear even a panting snail trying to cross a busy sidewalk.

Thanks YMMD
