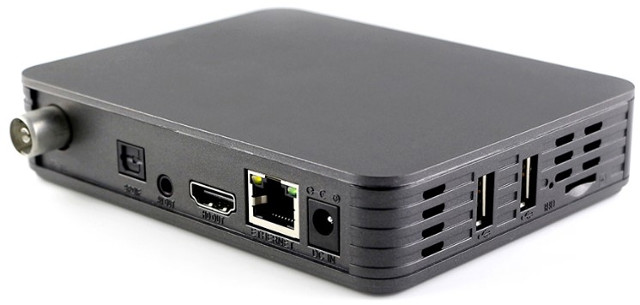

We know have a decent choice of affordable Android TV boxes with tuners, but TX95D model powered by Amlogic S905D processor, and a single DVB-T/T2 tuner, appears to be a few dollars cheaper than the competition, as it sells for $51.99 shipped on Acemax’ Aliexpress store.
TX95D Android STB specifications:
- SoC – Amlogic S905D quad core ARM Cortex-A53 @ up to 1.5 GHz with Mali-450MP GPU
- System Memory – 1 GB DDR3
- Storage – 8 GB flash + micro SD card slot
- Video Output – HDMI 2.0a up to 4K @ 60Hz with HDR support, and 3.5mm AV
(composite video) jack - Audio Output – HDMI, AV (stereo audio), optical S/PDIF
- Video Codecs – 10-bit H.265, and VP9 Profile 2 up to 4K60, H.264 up to 4K30, AVS+ and other codecs up to 1080p60
- Tuner – DVB-T/T2 tuner with one coaxial RF input
- Connectivity – 10/100M Ethernet, 802.11 b/g/n Wi-Fi
- USB – 2x USB 2.0 host ports
- Misc – Front panel display, power LED, IR receiver
- Power Supply – DC 5V/2A
- Dimensions – 130 x 102 x 30 mm
The box runs Android 6.0 with Kodi 17, and supports timeshifting and PVR functions likely using the usual – for AMlogic STBs – DVB app. The packages include TX95D hybrid TV BOX, one HDMI Cable, a power adapter, a remote control, and a user manual.
While searching for the product name, I found an FCC filing indicating the manufacturer should be Shenzhen Oranth Technology. They have not updated their website for a while, since the listed products are only based on Amlogic S805, and without tuner. The Chinese version of the website lists only TV box boards without cases, as well as power adapter testing board.
Via AndroidPC.es
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
This SOC has build in Tuner ? or how it is connected , like USB/PCI/SD bus?
Based on previous experiences with this manufacturer, it’s quality hardware and manufacturing process.
@Varghese
The tuner is always external with one or more demodulator chip and the RF part. It’s connected over a TS interface.
@Stane1983
I don’t think I had ever heard about Oranth before. Have they been around for a while?
10/100 network again?? Why oh why.
@cnxsoft
They are manufacturer, I don’t think they are selling directly to customers. Don’t know how long they are around but their boxes are eg TX8 and TX8mini (S912), TX95 (905X)…
@Stane1983
Their own about page answers those questions
Shenzhen Oranth Technology CO., LTD. is a professional manufacturer of the digital consumer electronics products. We are an enterprise that integrating researching, development, products and sales. Our products is sold in domestic and many other countries overseas. And we provide specialized and excellent devices and projects for our clients.
Our main product is TV Box, as well as IPTV, OTT+DVB-S2, OTT+DVB-T2 etc..And our sales team is engaged in electronic products for more than 10 years experience and the sales experience of Android OS products more than 4 years. Since the company that established in 2013, we have sold more than 100 thousand PCs devices. The products are sold in China and many other countries and states all over the world. Our items are mainly by ODM & OEM order, as well as the PCBA & projects.
Shenzhen Oranth Tech insists “Honesty” & “Quality” . We will do maximum effort to reach win-win of customers, employees and social, to build a respectable and professional consumer electronics manufacturer. Look forward to co-operation with you in near future.
thanks for your kind introuction, and welcome to purchase
