Single Core ESP32-S0WD WiSoC Datasheet and Price

I’m subscribed to Espressif Systems’ notification system so that I received an email each time there’s a documentation update on their website, and this morning they posted ESP32-S0WD Datasheet, the single core version of ESP32 processor, which we reported in our post about ESP32 5×5 packages.

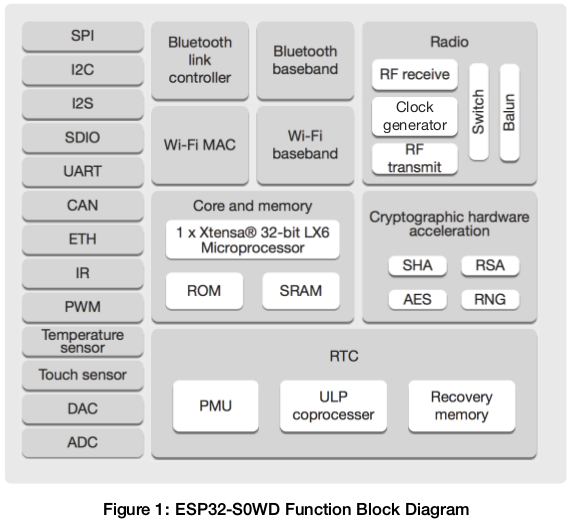

Beside the small 5x5mm 48-pin package, and single Xtensa 32-bit LX6 microprocessor, it looks to be the same as the frequently used ESP32-D0WDQ6 with a 6x6mm 48-pin package. The CPU & Memory part of the datasheet reads:

  • ESP32-S0WD: Xtensa single–core 32-bit LX6 microprocessor, up to 200 DMIPS
  • 448 KB ROM
  • 520 KB SRAM
  • 16 KB SRAM in RTC
  • QSPI flash/SRAM, up to 4 x 16 MB
  • Power supply: 2.3V to 3.6V

While ESP32 datasheet shows a dual core up to 600 MIPS, so maybe the max frequency is also limited. I could not find any ESP32-S0WD module or board just yet, but GridConnect is selling ESP32-S0WD chip for $2.35, ESP32-D0DW(Q6) for $2.75, and ESPD2DW (dual core with 2MB embedded flash) for $3.25.

Click to Enlarge

For comparison, the same site sells ESP8266 for $1.75, so it should mean we should soon get even cheaper ESP32 boards with WiFi and Bluetooth 4.2 LE, but just with less processing power. Note that price should be even lower if you buy in quantity from resellers in China. ESP32-S0WD would be especially suited as an upgrade for products that use both ESP8266 and an external Bluetooth chip, as it would offer a smaller and cheaper solution.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
JaXX
JaXX
7 years ago

These chips are getting sexier by the day !

BCatalin
7 years ago

Excellent news!! Looking forward to see some boards now.

gizmoduck
gizmoduck
7 years ago

Interesting. Are there any similarly sized chips that have embedded hardware acceleration of video encode/decode for currently popular codecs and resulotuion? No need for display output so hopefully not a full GPU.

The linked to article talks about possible support for 802.11ac. Do these chips also support 1 GbE?

Thanks!

geokon
7 years ago

So with the vanilla dualcore ESP32, can it be setup where one core is running with no interrupts? On a small little hobby project I did a few months ago, I had some weird issues bitbanging some cheap indexed LEDs on the ESP8266; I’m really suspecting it’s related to WIFI interrupts. From what I’ve read, it seems like a common problem with these Wifi-included chips and it makes it messy for any real-time application (and well.. if you don’t really need realtime in a hobby project, then why deal with micros? it’s probably easier to setup a cheap Linux board)… Read more »
