RAK8211-NB iTracker Battery / Solar Powered Module Comes with NB-IoT & Bluetooth 5 Connectivity, GPS, and 5 Sensors

Orange Pi Development Boards

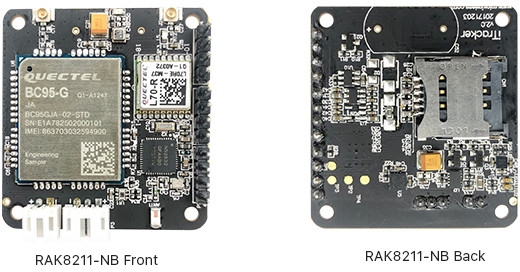

Rak Wireless has recently launched a new products called RAK8211-NB iTracker based on a Quectel BC95-G NB-IoT module, Nordic Semi nRF52832 Bluetooth 5 chip, and Quectel L70-R GNSS module.

The asset tracker module also comes with 5 different sensors to monitor motion and environmental data, and can optionally be powered directly by a solar panel.RAK8211-NB iTracker specifications:

  • Connectivity
    • NB-IoT via Quectel BC95-G (Global) wireless communication module + SIM card socket
    • Bluetooth 5 via Nordic Semi nRF52832 Arm Cortex-M4F micro-controller (Arduino compatible)
    • GPS/GLONASS via Quectel L70 GNSS module
  • Sensors
    • LIS3DH 3-axis “nano” accelerometer
    • LIS2MDL 3-axis digital magnetic sensor.
    • Tilt sensor
    • BME280 pressure, humidity and temperature sensor
    • OPT3001 intensity of light sensor
  • Expansion – 3x headers with SWD, 2x sensor out + tilt out (also usable as GPIO and analog inputs), 3.3V, GND, and reset
  • Power Supply – 3.5V to 18V via solar panel (P2) or battery (P3)
  • Dimensions – 43mm x 38mm x 18mm
  • Temperature Range – 40°C to +85°C

The company provides instructions to use the module with the Arduino IDE, Espruino (JavaScript) and Arm Keil tools. You’ll also find tutorials on Hackster.io.

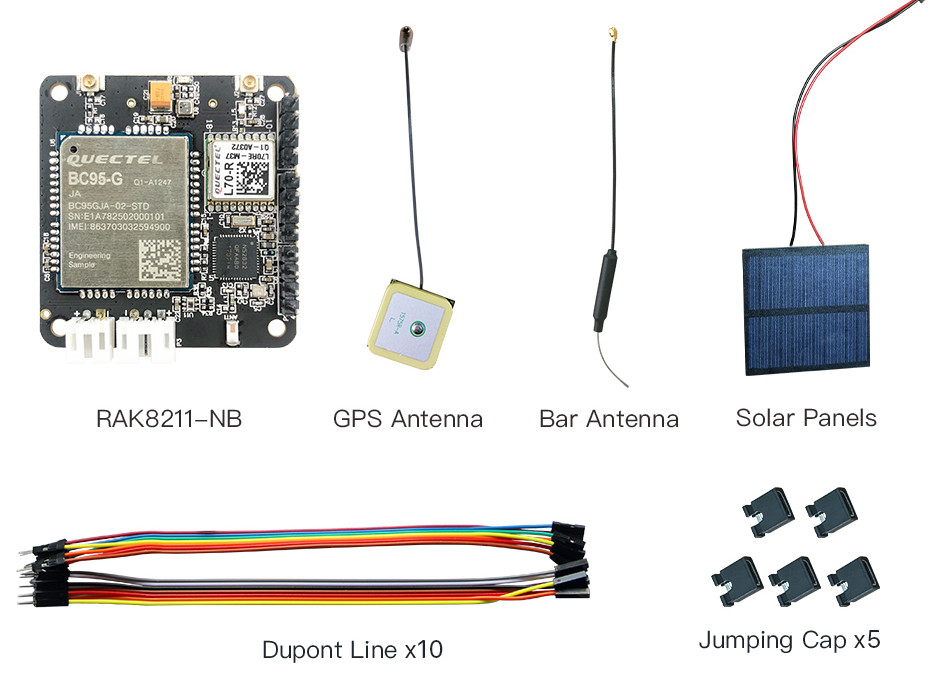

The module ships with a GPS antenna, a “bar” antenna for NB-IoT,  a solar panel, some Dupont cables, and jumpers. A JLINK V9 emulator and convertor is also (temporary) included in the kit.

Click to Enlarge

RAK8211-NB iTracker kit sells for $98.40 + shipping on Aliexpress. Rak Wireless also offers another variant of RAK8211 with RAK8211-G based on the most of the same features, except GPRS is used instead of NB-IoT. It is sold for $87.40 + shipping.
