RAK833 is an Industrial Grade mini PCIe LoRaWAN Gateway Card

The most obvious way to setup your own LoRAWAN network is to get an off-the-shelf Gateway such as MatchBox, which can be easily installed, and configured using the built-in web interface.

But if you need something more flexible, Rakwireless RAK833 could be an interesting option, as an industrial grade LoRaWAN gateway that you can just insert into an advanced router or computer’s mini PCIe slot.

RAK833 card specifications:

  • LoRa Connectivity
    • Semtech SX1301 Digital Baseband Chip for outdoor LoRaWAN macro gateways
    • 2x Semtech SX1255/7 Tx/Rx front-end
    • 49x LoRa demodulators, 10 parallel demodulation paths
    • Frequencies – 433 MHz, 470 MHz, 868 MHz, and 915 MHz
    • Tx Power – Up to 25 dBm
    • Rx Sensitivity – -140 dBm
  • Host Interface – 52-pin mPCIe edge connector with USB and SPI (via FT2232H) signals;
  • Supply Voltage – 3.3V compatible with 3G/LTE mPCIe cards
  • Dimensions – 50.95 x 30 mm

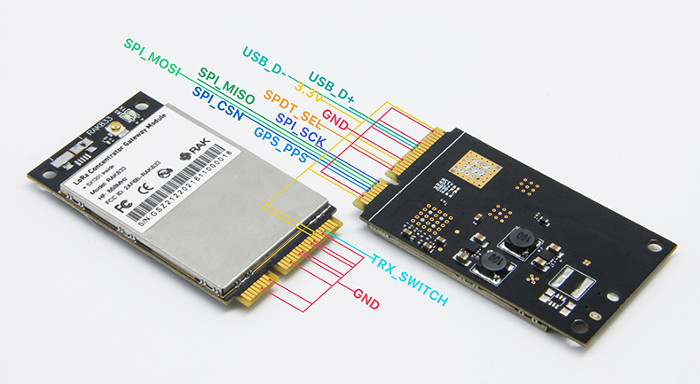

Block Diagram

The card ships with an external antenna, and should work with any Linux device with a mini PCIe slot using the same “RAK831_LoRaGateway” software as for RAK831 LoRa gateway module. You’ll also find hardware & software documentation on Rakwireless website.

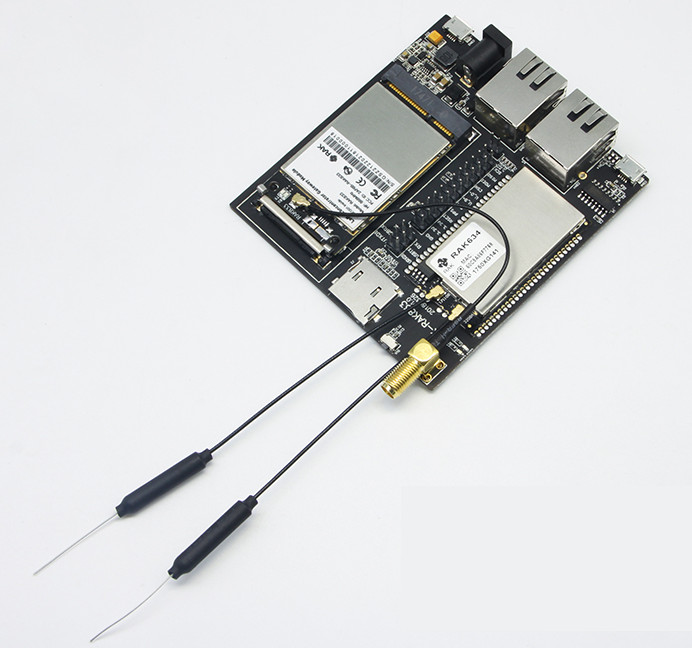

If you don’t already have a host device, you can evaluate the mini PCIe card using RAK833-EVB-Kit which combines the card with RAK634 WiFi router module based on Mediatek MT7628N chipset running OpenWrt, and providing the following interfaces: 2x Ethernet ports, a microSD slot,  2x micro USB ports, and DC jack.

For few more details may also be found on the product page,  and if you are interested in purchased the mPCIe card or evaluation board both are available for 868 or 915 MHz frequencies on Aliexpress for $177 and $229 respectively plus shipping.

[Update June 29, 2018: RAK Wireless will now offer two versions of RAK833 mini PCIe card, one with USB + SPI for development, and a cheaper one with SPI only for production.

Price:

  • RAK833-SPI – $99
  • RAK833-USB/SPI – $119 ]
