$9 SQ8 may be the World’s Smallest Car Dash Camera / Action Camera

Orange Pi Development Boards

There are so many car dash DVRs and action cameras on the market that barely differentiate themselves on the market that I don’t usually write about those anymore.

But SQ8 “mini car video recorder full HD sports DV camera” caught my eye First, because at $8.99 on GeekBuying it’s really cheap, but most importantly because it’s incredibly tiny, even smaller than JeVois computer vision camera I reviewed last year.

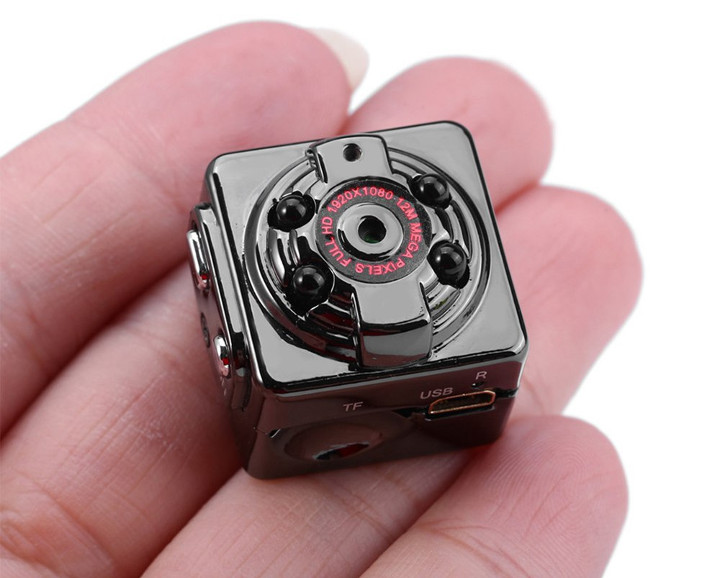

Smallest Car Dash Camera

SQ8 camera specifications:

  • Chipset – “AnGuo”
  • Storage – micro SD card up to 32 GB
  • Camera
    • 12MP CMOS image sensor for 1080p30 videos  (AVI/MJPG)
    • 65 Degrees Wide Angle
    • 3mm lens
    • Motion Detection, Night Vision
  • Audio – Built-in microphone/speacker (AAC)
  • USB – 1x mini USB port
  • Misc – On/off and mode buttons, reset pinhole, LED indicator
  • Battery – 200 mAh good for about 100 minutes
  • Dimensions – 2.2 x 2.2 x 2.0 cm
  • Weight – 25 grams
  • Operating Temperature –  0 – 60 Deg.C

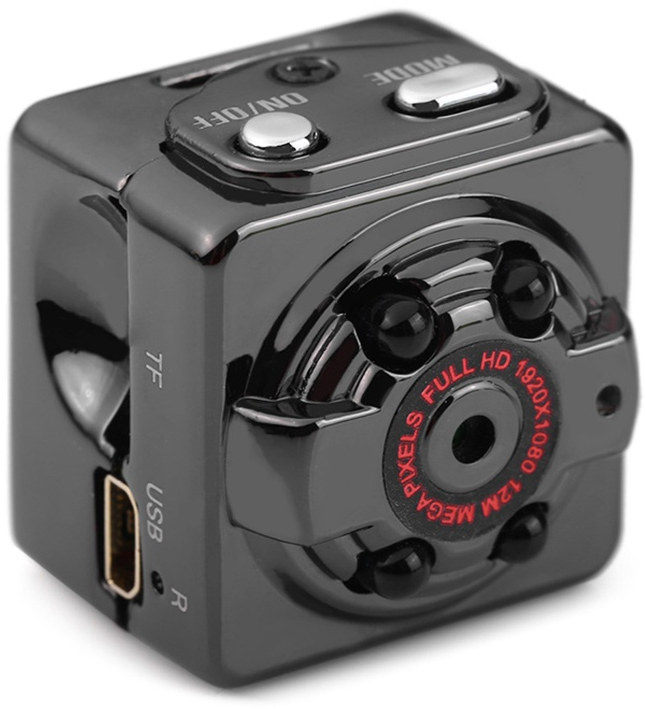

Smallest Car DVR

The firmware supports car DVR function, “circulate record function” to record video every 5 minutes and overwrite all video(s). The mounting clip can be used to attached to your clothes, backpack, back of cap, etc… Bear in mind the camera has no waterproof rating, so it may not be safe to use when it is raining, and it should certainly not be immersed in water. The “mini Car DVR camera” ships with a USB / TV out 2-in-1 cable, an adjustable mounting bracket, a mounting clip, and an English user manual.

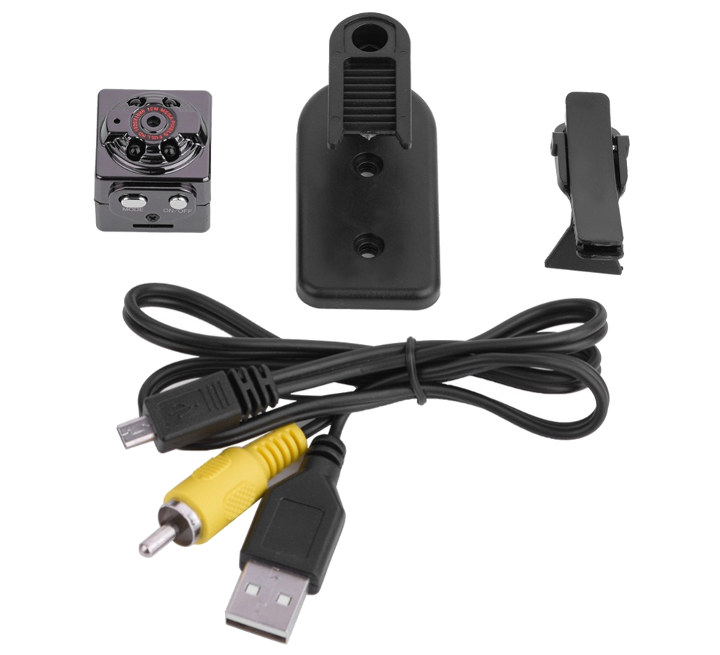

SQ8 Camera Accessories

SQ8 camera may be new to me, but the product was actually released in 2016, or about two years ago, and there are several reviews on Youtube, including the one embedded below that after the unboxing part shows some videos sample from the camera while used as a bodycam or a car DVR. I have to say the quality is not that bad.

Beside GeekBuying, you’ll find the camera on other websites too like Amazon or GearBest, but usually a little over $10. The Amazon reviews are not really reassuring though, with lots of one star reviews saying the camera only worked one day… There are also newer models with SQ11 that looks a little better (esthetically) and sells for as low as $9 including shipping, as well as  SQ12 camera which comes with a waterproof case for $16.99 shipped.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

12
Leave a Reply

avatar
3 Comment threads
9 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
11 Comment authors
tkaisersuperkuhmegousT-Cs. hippy Recent comment authors
  Subscribe
newest oldest most voted
Notify of
rose
Guest
rose

Could you tell something about the DVR mode? Otherwise to use it as a dash cam you have to turn it on manually.

gicho
Guest
gicho

Beware that there are multiple issues with this hardware – very often the supplied cable is defective and it cannot charge the camera, and in addition, it short circuits the USB supply lines. If you are lucky you will get a notification message from the PC OS about this, if not or if you try with some 5A+ charger you might get a fire. Solution is to find old Nicon digital camera USB cable as replacement – because the jack is neither mini nor micro USB – it is “Nikon” style.
Battery life is also questionable – maybe there are fake clones but sometimes you might get less than 15 minutes.
Still it has one useful feature (use case) – PC USB camera – in this case it enumerates as UVC device and works fine (with some PC softwares). This is true if you have a working usb cable.

Su Zet
Guest
Su Zet

I would second you from my experience with SQ12 bought for $12.50. It’s true 720p and upscaled to 1080p but the picture is not stellar in any mode. It’s hard to guess plate numbers so useless as car dashcam if you want to record accidents of course. It’s hard to use with Linux also (at least on my Orange Pi PC with Armbian) as the camera is not recognized because of USB quirks mode. On PC it was working without need of drivers with Windows 10. I guess this SQ8 will be inferior in all parameters than SQ12.

Phipli
Guest
Phipli

It took me days, but I did get one working with a linux SBC… but sadly I don’t remember exactly how. It did relate to editing something to do with quirks. I currently have one acting as a webcam (1 picture every 5 minutes) to keep an eye on a pet. Has been running for about a year.

Phipli
Guest
Phipli

Found it, the command that got it working was :

echo “options uvcvideo quirks=2” >> /etc/modprobe.d/uvcvideo.conf

Dan
Guest
Dan

Have you found a camera you do like? I’m looking to do a similar setup of a dashcam on armbian but the sheer number of camera options always stops me.

T-C
Guest
T-C

and it runs hot as f…

megous
Guest
megous

This shouldn’t be underestimated. Camera modules need good cooling, especially if you don’t control them directly and are at the mercy of whatever controller sits between the cam module and the rest (USB/sd card). You will not get access to PLL settings over UVC driver, so if the frequency is too high, your only choice is to add your own cooling.

I bought a “notebook” cam module and by default it gets to 70°C or more indoors. Can’t imagine it runnin in the car, where it can be exposed directly to the sun at times, etc. Of course the image quality is crap despite being anactual HD module at these temperatures.

Solved by adding 40x40x40 heatsink, but it still gets hot with prolonged use.

superkuh
Guest

I can second this. I bought one of these and it never worked. When I plug it in to charge it just becomes extremely, burningly, hot. It was a waste of money and time.

s. hippy
Guest
s. hippy

Interesting specs for the $9-10 price.

1. What is the output: YUV or h264 like? Compression matters a lot here…

2. That USB to TV out cable: what is the software driver that outputs analog TV signal, at what res?

Wiki is helpful. It says that Linux does not yet support mpeg2 or h264 in UVC1.5 yet…

https://en.m.wikipedia.org/wiki/USB_video_device_class

tkaiser
Guest
tkaiser

> for the $9-10 price

…it should be obvious that you can only expect a pile of garbage. But people seem to love the ‘buy cheap, buy twice’ principle eagerly helping to create more and more electronics waste.
