JeVois-A33 Linux Computer Vision Camera Review – Part 2: Setup, Guided Tour, Documentation & Customization

Computer Vision, Artificial Intelligence, Machine Learning, etc.. are all terms we hear frequently those days. JeVois-A33 smart machine vision camera powered by Allwinner A33 quad core processor was launched last year on Indiegogo to bring such capabilities in a low power small form factor devices for example to use in robotics project.

The company improved the software since the launch of the project, and has now sent me their tiny Linux camera developer kit for review, and I’ve already checked  out the hardware and accessories in the first post. I’ve now had time to test the camera, and I’ll explained how to set it up, test some of the key features via the provided guided tour, and show how it’s possible to customize the camera to your needs with one example.

Getting Started with JeVois-A33

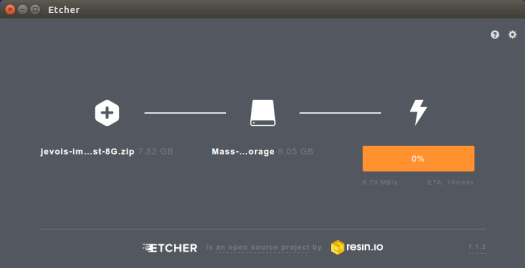

In theory, you could just get started by inserting the micro SD card provided with the camera, connect it to your computer via the USB cable, and follow the other instructions on the website. But to make sure you have the latest features and bug fixed, you’d better download the latest firmware (jevois-image-latest-8G.zip), and flash it to the micro SD card with the multi-platform Etcher tool.

You could also use your own micro SD card, as long as it has 8GB or more capacity. Once this is done, insert the micro SD card into the camera with the fan of the camera and the golden contact of the micro SD card both facing upwards. Connect the camera to your computer with the provided mini USB to USB cable. I also added the USB power meter to monitor the power consumption for the different use cases, and USB serial cable to checkout output from the console. At least that was the plan, but I got no lights from the camera, and voltage was reported to be only 4V. Then I read the guide a little better, and found out I had to use a USB 3.0 port, or two USB 2.0 ports for power.

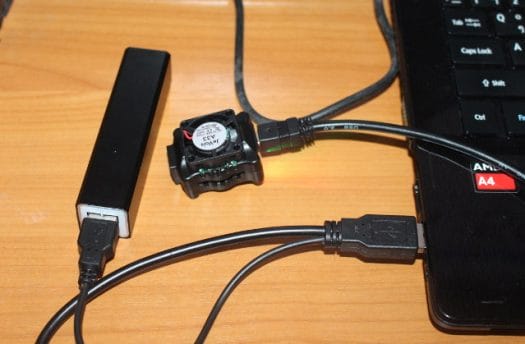

Once I switched to using two USB 2.0 ports from a powered USB 2.0 hub, I could see output from the serial console…


and both green and orange/red LEDs were lit. The instructions to use JeVois camera are mostly OS agnostic, except for the video capture software. If you are using Windows you can use the free OBS Studio or AMCap programs, and on Mac, select either PhotoBooth or OBS Studio. I’m a Ubuntu user, so instead I installed guvcview:


and ran it use 640×360 resolution and YUYV format as instructed in the getting started guide:


But then I got no output at all in the app:


The last line above would repeat in a loop. The kernel log (dmesg) also reported a crash linked to guvcview:


Another person had the same problem a few months ago, and it was suggested it may be a USB problem. So I connect the camera to directly to two of the USB ports on my tower, and it worked…

Click to Enlarge

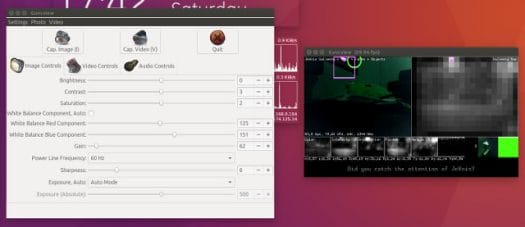

The important part of the settings are in the Video Controls tab, where we can change resolution and frame rate to switch between camera modes as we’ll see later on.

But since my tower is under the desk, the USB cable is a bit too short, and the program crashed with the same error message a few minutes later. So I went with my Ubuntu 16.04 laptop instead. Powering the camera via the USB 3.0 port worked until I started deep learning modes, where the camera would stop, causing guvcview to gray out. Finally, I connected the camera to both my USB 3.0 port, and the power bank part of the kit, and the system was then much more stable.

Click to Enlarge

I contacted the company about the issues I had, but they replied this problem was not often reported:

… we have only received very few reports like that but we were able to confirm here using front panel ports on one machine. On my desktop I have a hub too, but usb3 and rated for fast charging (60W power supply for 7+2 ports) and it works ok with jevois. A single usb3 port on my mac laptop is also ok.

So maybe it’s just me with all my cheap devices and accessories…

So three main points to get started:

  1. Update the firmware
  2. Install the camera software
  3. Check power in case of issues / crashes (Both LEDs should be on if the camera is working)

JeVois-A33 Guided Tour

Now we have the camera running, we can try the different features, and the best way to do so is to download Jevois Guided Tour (PDF) that will give you an overview of the camera and how it works, as well as examples.

Click to Enlarge

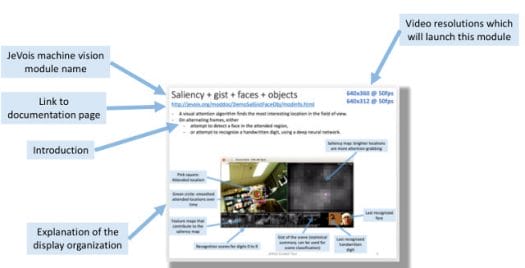

As shown above, the PDF includes information for each module with the name, link to documentation, introduction, display explanation, and on the top right the resolution/framerate that can be used to launch a given module. On following pages, there will be example pictures that you can point to with the camera.

Some of modules include:

  • Visual attention – finding interesting things
  • Face and handwritten digit recognition
  • QR-codes and other tags
  • Road detection
  • Object matching
  • Object recognition with deep neural networks
  • Color-based object tracking
  • Moving object detection
  • Record video to the microSD card inside JeVois
  • Motion flow detection
  • Eye tracking
  • and more…

You could print the guide with a color printer, but the easiest way is problem to use two screens, once with the PDF guide open, and the other running the camera application (guvcview, OBS Studio…). I’ve gone through some of the example in the guided tour in the video below, with PDF shown on a TV box, and the camera application output shown on the laptop screen on the top bottom corner.

That’s lot of fun, and everything works pretty well most of the time. Some of the tests are quite demanding for such low power device, as for example Darknet based “Deep neural scene analysis” using 1280×480 @ 15 fps with the ability to recognize multiple object types would only refresh the results every 2.7 seconds or so.

Documentation & Customization of Salient SURF Module

If you’ve gone through the guide tour, you should now have a good understanding of what the camera is capable of. So now, let’s take one of the modules, and try to adjust it to our needs. I picked SaliencySURF module with the documentation available here for this section of the review. Introduction for the module:

Trained by default on blue iLab logo, point JeVois to it and adjust distance so it fits in an attention box.
Can easily add training images by just copying them to microSD card.
Can tune number and size of salient regions, can save regions to microSD to create a training set

So let’s take a few other images (Tux logo), copy them to the micro SD card in the camera, and tune some of the settings.

Ideally the camera should also be detected, as a storage device, so that we can easily copy files and edit parameters, and in my computer it was shown as a UVC camera, a USB ACM device, and USB storage device when I connect it:


But for some reasons, I could not see the /dev/sdb storage after that:


[Update: We can use use jevois-usbsd script to access the camera storage from the host computer / board:


]

So instead I had to take out the micro SD card from the camera, and copy the files in /modules/JeVois/SaliencySURF/images/ directory in JEVOIS partition.

The module will process those photo when we start it, and return the name of the file when detected.

We can go back to SaliencySURF directory to edit params.cfg file, and change some parameters to determine how strict a match should be, taking into account that a stricter matching may mean the object was not be detected, and looser matching that we get some false positives. But this is where it gets a little more complicated, as we’ll see from a subset of the list of parameters.

Click to Enlarge

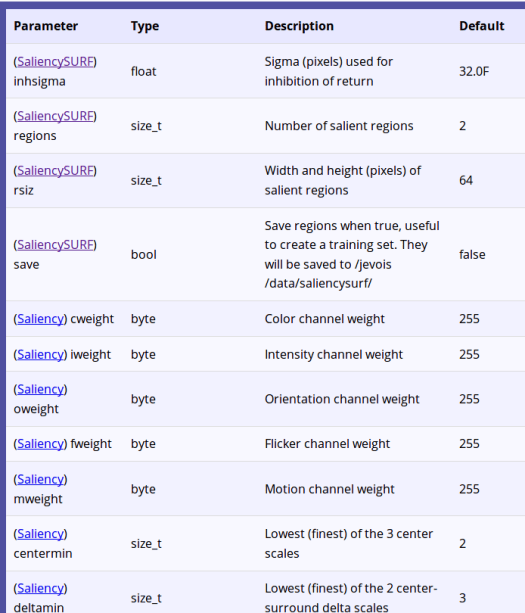

I cannot understand what half of the parameters are supposed to do. That’s where you can click on the SaliencySURF / Saliency links to access the base documentation. and find out how the module works, find out more about each parameter, and easily access the source code for the functions used by the module. That type of documentation is available for all modules used in JeVois C++ framework, and it’s a very good learning tool for people wanting to know more about computer vision. You’ll have to be familiar with C++ to understand the code, and what it really does, beside learning jargon and acronyms specific to computer vision or machine learning.

By default params.cfg file includes just two lines:


Those are the parameters for ObjectMatcher module, with goodpts corresponding to the number range of good matches considered, and distthresh being the maximum distance for a match to be considered good.

I’ve set looser settings in params.cfg:


I saved the file, put the micro SD card back into the camera, and launch guvcview with 320×288 @ 30 fps resolution/framerate to enter SaliencySURF mode.

Click to Enlarge

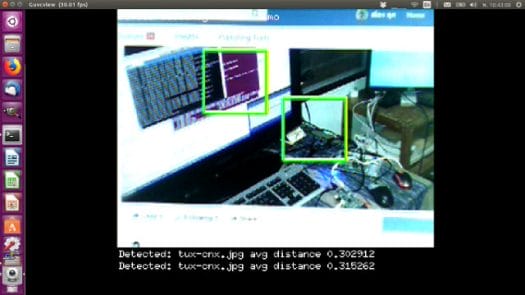

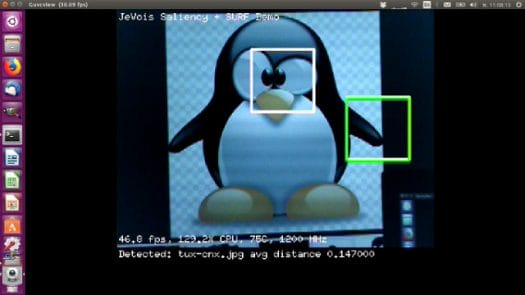

Oops, it’s seeing Tux logos everywhere, even when there are none whatsoever, so our settings are clearly too loose. So I went back to the default settings, but the rsults was still similar, so since the distance was shown to be 0.30 in my first attempt, I reduced distthresh to 0.2. False positive are now mostly gone, except for very short period od time, and it’s now detecting CNX Tux logo accuractely. Note that Green square is for object detection, and the white squares for saliency zones.

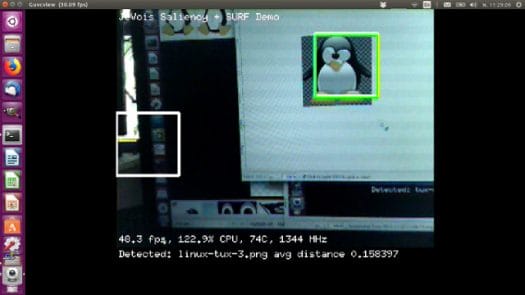

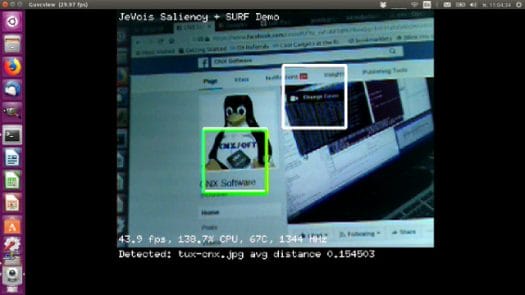

However, it struggles to detect my third Tux logo repeatedly, often following back to CNX Tux logo.

But as you could see with the green square, the detection was done on the left flap of the penguin. That’s because SaliencySURF detection is done in a fixed size zone (64×64 pixels per detault), so camera distance, or size of the zone matter. You can change the size of the salient regions with SaliencySURF rsiz parameter which defined the height and length of the quare in pixel. When I did the test I first tried to detected if from the list of Tux images from DuckDuckGo search ut it was not small or blurry. After switchign to a bigger photo, the cable was too short to cover the logo, so instead I copied to gimp and resized it so that it could fit in the 64×64 square while using the camera, and in this case detection worked resaonably well.

The more you use the camera, the better you’ll be at understanding how it works, and leverage its capabilities.

Final Words

JeVois-A33 camera is an inexpensive way to get started with computer vision and deep learning, with excellent documentation, and if you put the efforts, you’ll even understand how it works at the source code level. It’s also fun to use with many different modules to try. I have not tried it n this review due to time limitations, but you could also connect the camera to an Arduino board controlling a robot (Cat chasing bot anyone?) via the serial interface.

The main challegenges you may face while getting started ar:

  1. Potential crashes due to power issues, but that’s solvable, and a power issues troubleshooting guide has even been published
  2. For robotics projects, you have to keep in mind there will be some lag for some modules, for example from 500ms (single object) to 3 seconds (YOLO test with multiple object types) for deep learning algorithms. Other modules such as ArUco marker are close to real-time performance however.

Bear in mind all processing is done by the Allwinner A33 CPU cores, as the Mali-400MP GPU is not suitable for GPGPU. As more affordable SoC with OpenCL/Vulkan capable GPU (e.g. Mali-T720) are launched, and in some cases even NNA (Neural Network Accelerator), we’ll be able to get similar low power smart cameras, but with much better computer vision performance.

JeVois-A33 can be purchased for $49, but to avoid wasting time with power issues, and give you more options, I’d recommend to go with JeVois-A33 Developer/Robotics Kit reviewed here, going for $99.99 on Amazon, RobotShop, or JeVois Store.
