LoStik USB Dongle Adds LoRa Connectivity to any Computer or Linux Board (Crowdfunding)

We’ve covered plenty of hardware with LoRa radio from gateways, to Arduino shields, tracker boards, and mini PCIe cards, but after reading an article on Time4EE this morning, I realized we never wrote about any LoRa USB stick.

LoStik – previoulsy LoRa Stick – is an open source hardware USB dongle based on Microchip RN2903 / RN2483 LoRa module, and offered on CrowdSupply for $39.

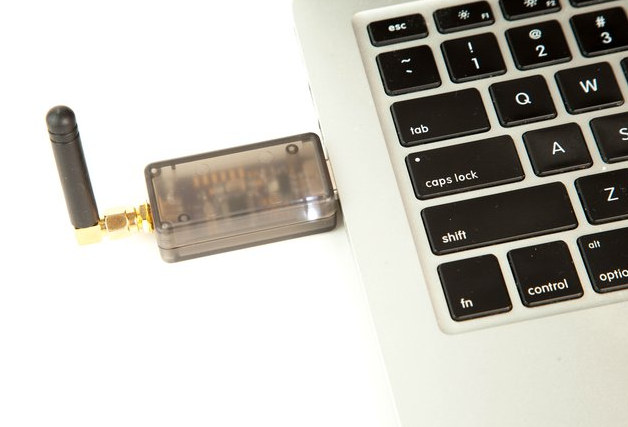

LoRa USB StickLoStik specifications:

  • USB – USB 2.0 port
  • LoRa Connectivity
    • Microchip RN2903 – 915 MHz for  US, Canada, South America and Australia
    • Microchip RN2483 – 868 Mhz for Europe
    • Receiver Sensitivity – down to -146 dBm
    • TX Power – adjustable up to +18.5 dBm
    • Range – up to 15 km coverage in suburban and up to 5 km coverage in urban areas
  • Misc – 2x user LEDs
  • Power Consumption – 140 ma typical TX, 20 ma idle (with power LED)
  • Dimensions – 80 mm x 25 mm x 12 mm (without antenna)

As usual, people requiring AS923 (waving hand here) are left out…

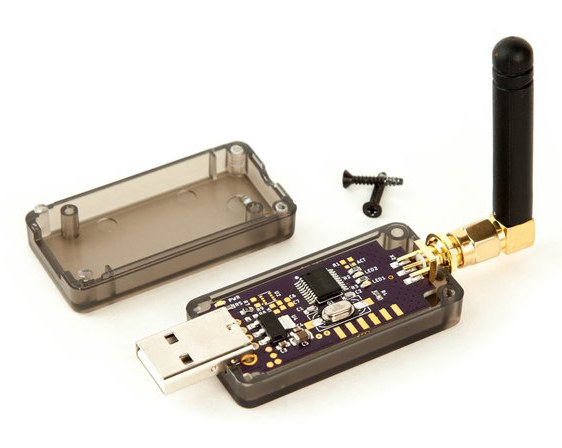

LoRa USB Stick

The board works with any PC, as well as Linux development boards such as  Raspberry Pi or BeagleBone. It’s easier to carry compared to a prototype with jumper wires, can be programmed via a simple ASCII interface, supports packet mode LoRa or LoRaWAN, and works with the Things Networks. You’ll find hardware design files (EAGLE schematics + PCB layout), as well as Python 3.x code sample on Github.

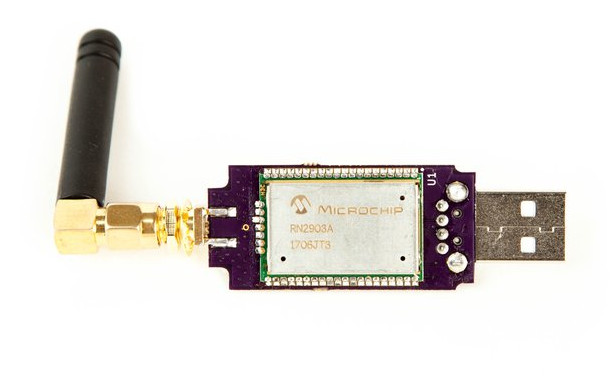

USB Stik BoardLoStik is not the first LoRa USB dongle around, so the developer compared it to GlobalSat LD-50H (NDA required), and iFrogLab LoRa USB.

LoRa USB Dongles ComparisonLoRa stik offers several advantages, and also happens to be the cheapest of the list. It’s $39 shipped to the US, but you’d need to add $10 to the rest of the world.

I could however find an even cheaper LoRa USB stick – albeit probably not as well supported – on Tindie based on Bluepill STM32 board + SX127x module and that sells for $15 + shipping with a 433/470MHz radio or $18 + shipping with a 868 MHz/915MHz radio. Beside lacking a case, and requiring a micro USB to USB cable, it may not be suitable for all projects:

RxTx/PingPong demo applications. No LoRaWAN demo project.
More firmware will be ported, however no guarantee for delivery schedule.

So at this point, if you plan to add LoRa via a USB adapter, LoStik looks like a decent option.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

4 Replies to “LoStik USB Dongle Adds LoRa Connectivity to any Computer or Linux Board (Crowdfunding)”

  1. Sir, i am from india. Just started working on lora based hobby projects.I am little confused about the LO stik.Pl.let me know if it can be used as a LoRa gateway,meaning that i simply plug this to my Laptop USB port ,thgen it starts receving data from LoRa nodes & feeds tio my system to get connected to TTN network

  2. Hello

    Can someone advise how i can read my Veolia water meter (France) with this stick. Our village has changed suppliers so that we no longer can access our data via Veolia. Best wishes
