Khadas Edge Developer Package Review – Part 1: Unboxing, Captain and Edge-IO Expansion Boards

Shenzhen Wesion recently launched an Indiegogo campaign for their Rockchip RK3399/RK3399Pro based Khadas Edge, Edge-1S and Captain boards. The Edge boards have an interesting form factor as they are both standalone boards, and system-on-modules compatible with Captain carrier board, and the smaller Edge-IO board.

While the crowdfunding campaign is on-going, the company decided to send me an early version of Khadas Edge Developer Package for evaluation. I’ll start out by checking out the content of the kit, and show how to get started with assembly, before reviewing the board with Linux at a later date.

Khadas Edge Developer Package Unboxing

I received the developer kit in a blank carton board package, but they’ll likely have a prettier package at launch like they did for heir VIM2 board. Anyway, the important part is the content.

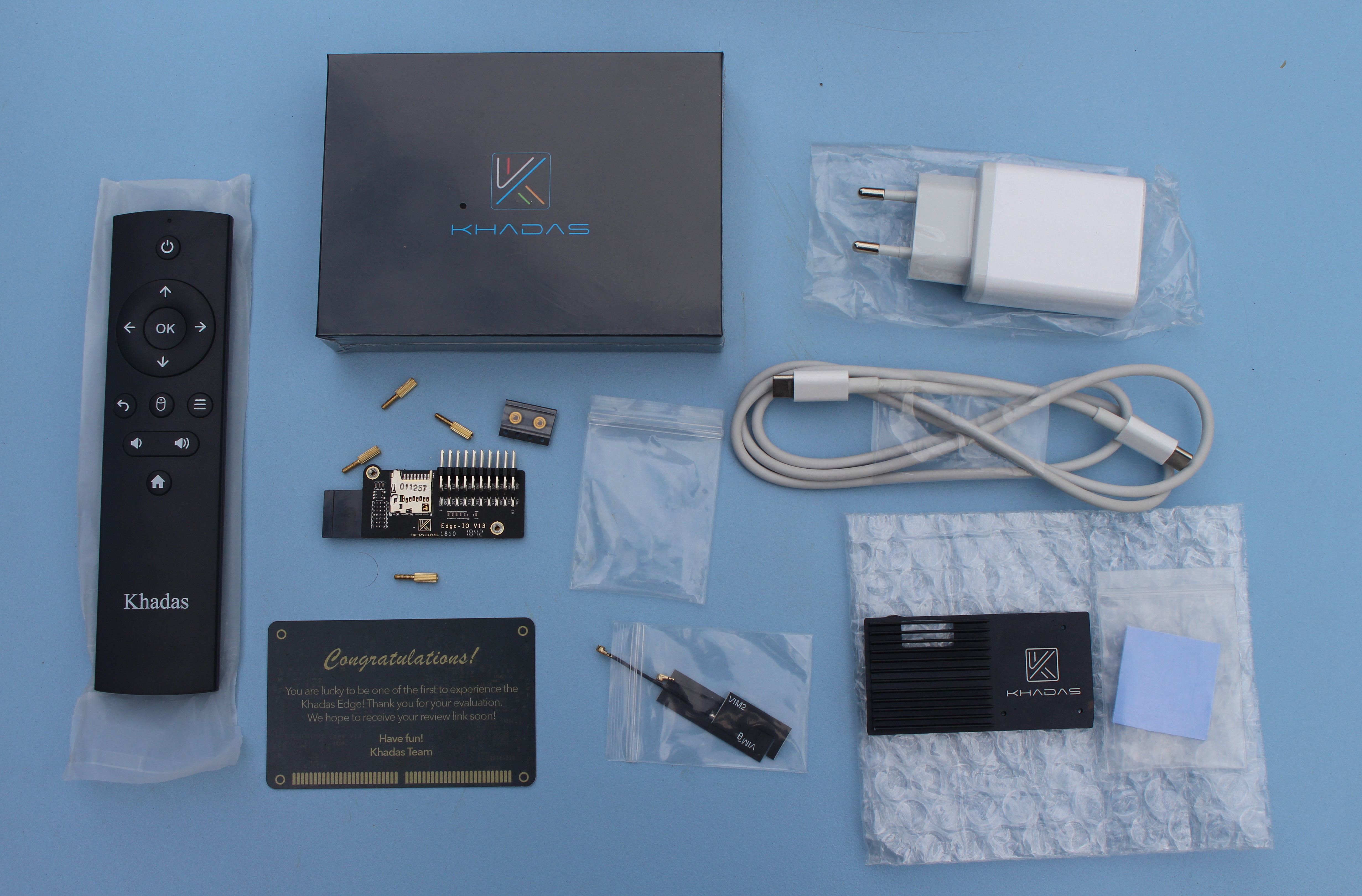

Khadas Edge Developer Kit
Click to Enlarge

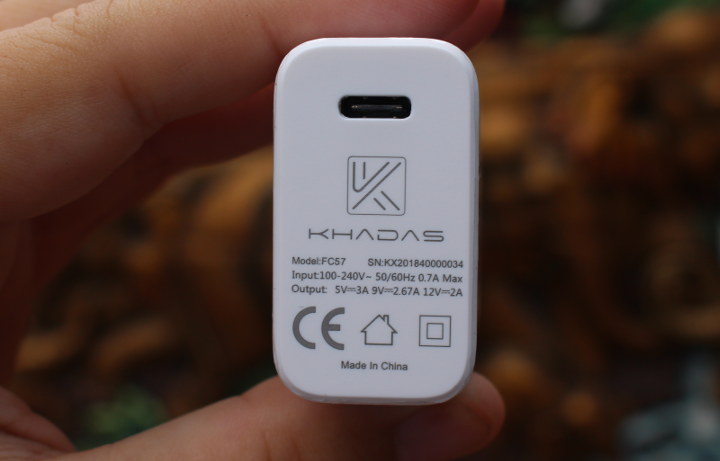

From top left to bottom right: An IR remote control, the package for the Edge board + Captain, a USB-PD power supply, Edge-IO board with spacers, a USB type-C cable, a congratulations card, antennas for 2×2 MIMO WiFI and Bluetooth, and an heatsink & thermal pad set.Khadas Fast Charging Power Supply
The power supply (FC57 model) supports 5V/3A, 9V/2.67A, and 12V/2A DC output.

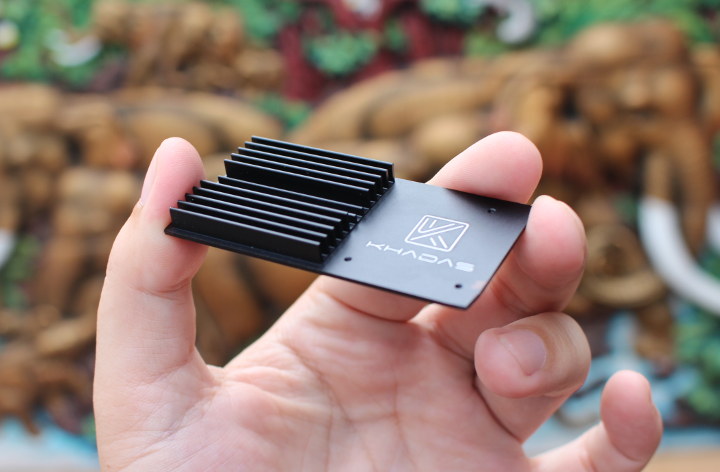

Khadas Edge Heatsink Prototype
The heatsink is split into two section one with some fins, and a flat part on the right for an optional fan. Note that this is not the final design, and the one you’d receive would have proper mounting holes.

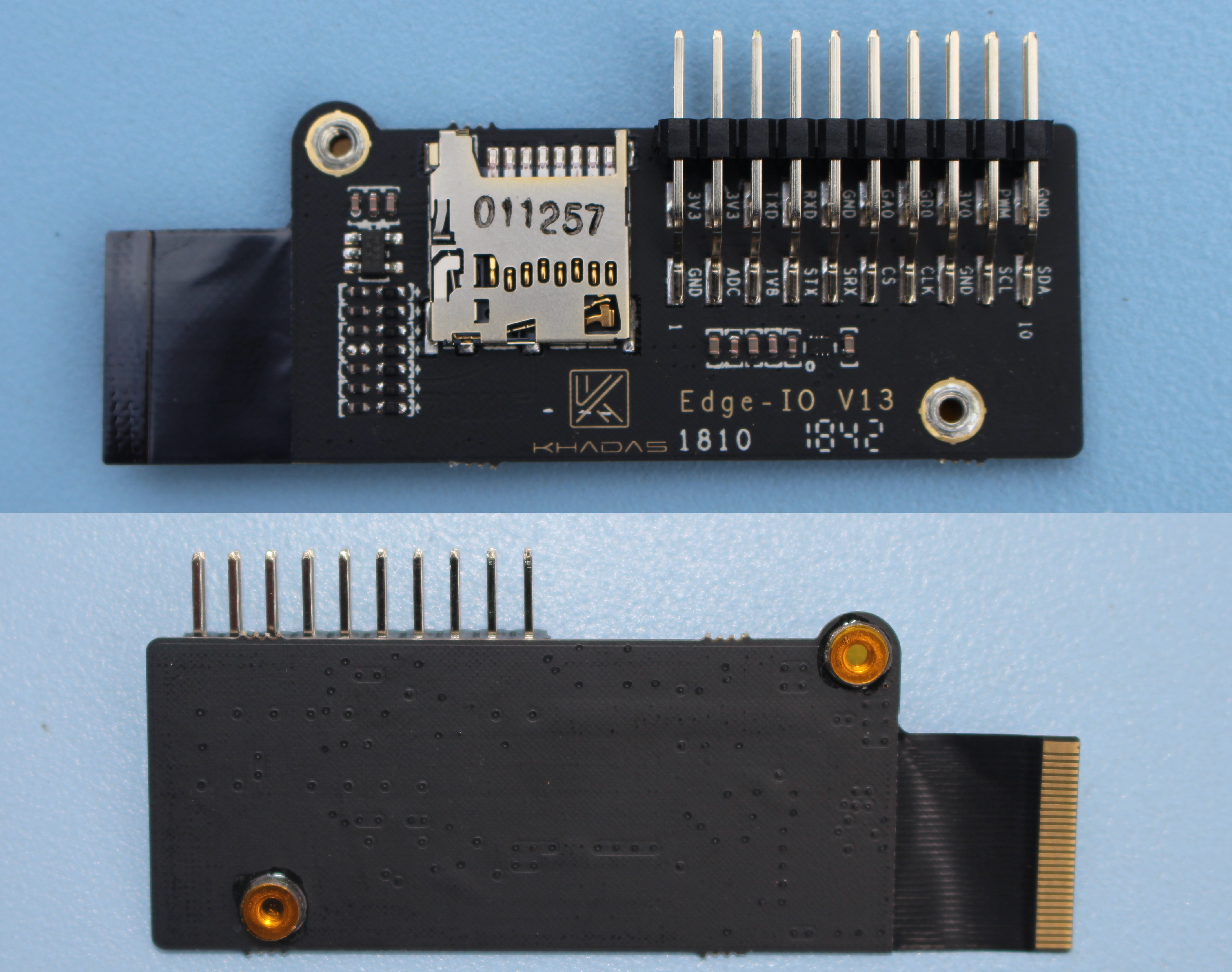

Edge-IO board
Click to Enlarge

Khadas Edge-IO board allows you to add expansion headers and a micro SD card to Khadas Edge board without having to use Captain for lower cost and/or a smaller footprint.

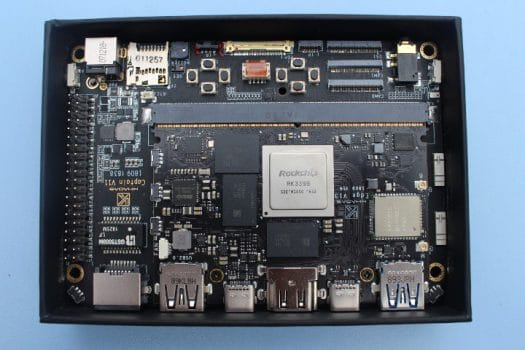

Khadas Edge Captain Board
Click to Enlarge

Open the main board package, will reveal Khadas Edge Basic board fitted into Khadas Captain carrier board which adds Gigabit Ethernet, an expansion header, some on-board antennas, a micro SD slot, game pad buttons, connectors for MIPI cameras and displays. The Edge Basic module/board comes with 2GB RAM, 16GB flash. The full specs are available here (scroll down a bit in the linked page).

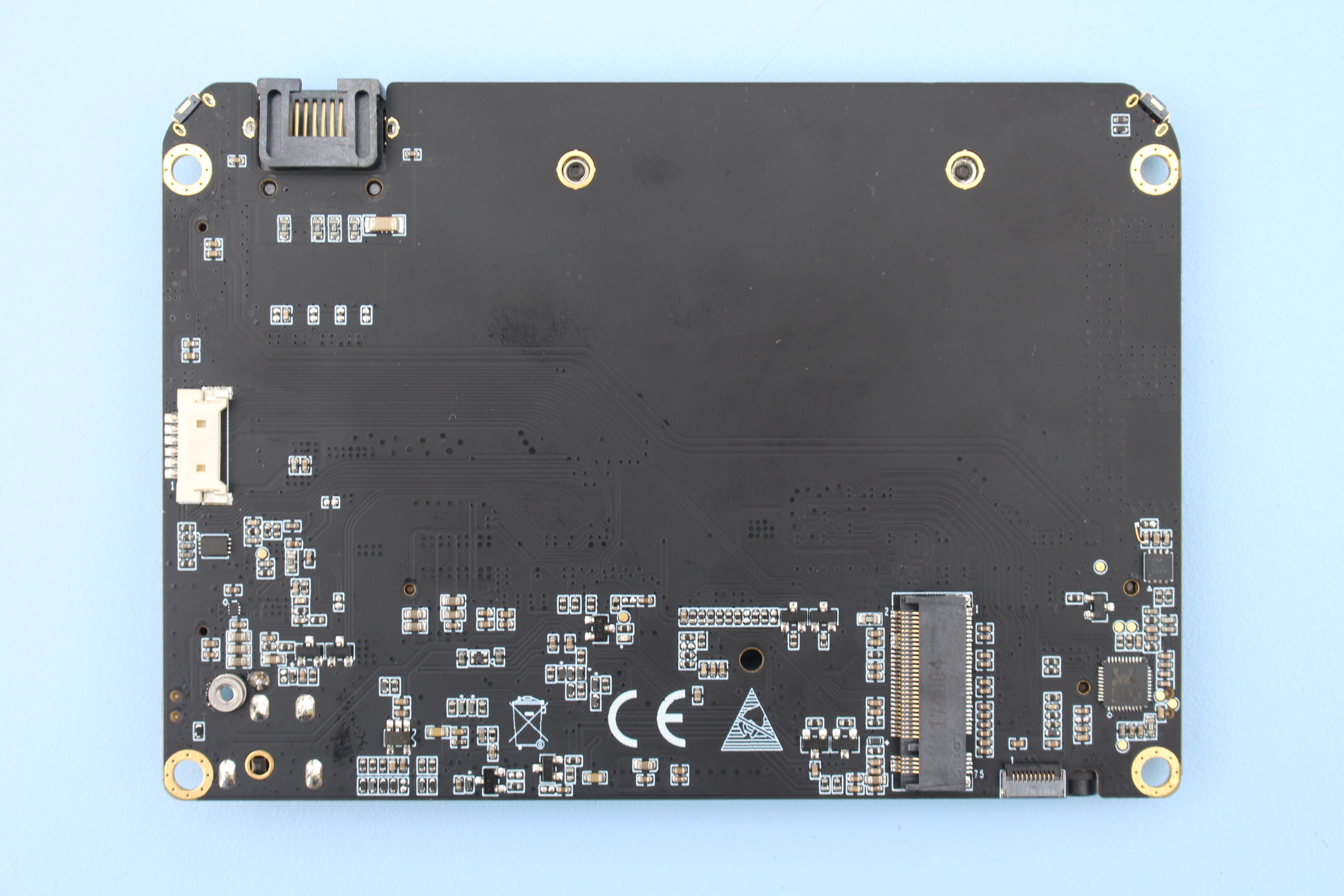

Khadas-Captain-M.2-NVME-SSD-Battery
Click to Enlarge

The bottom also exposes an M.2 socket for NVME SSD, and a battery connector.

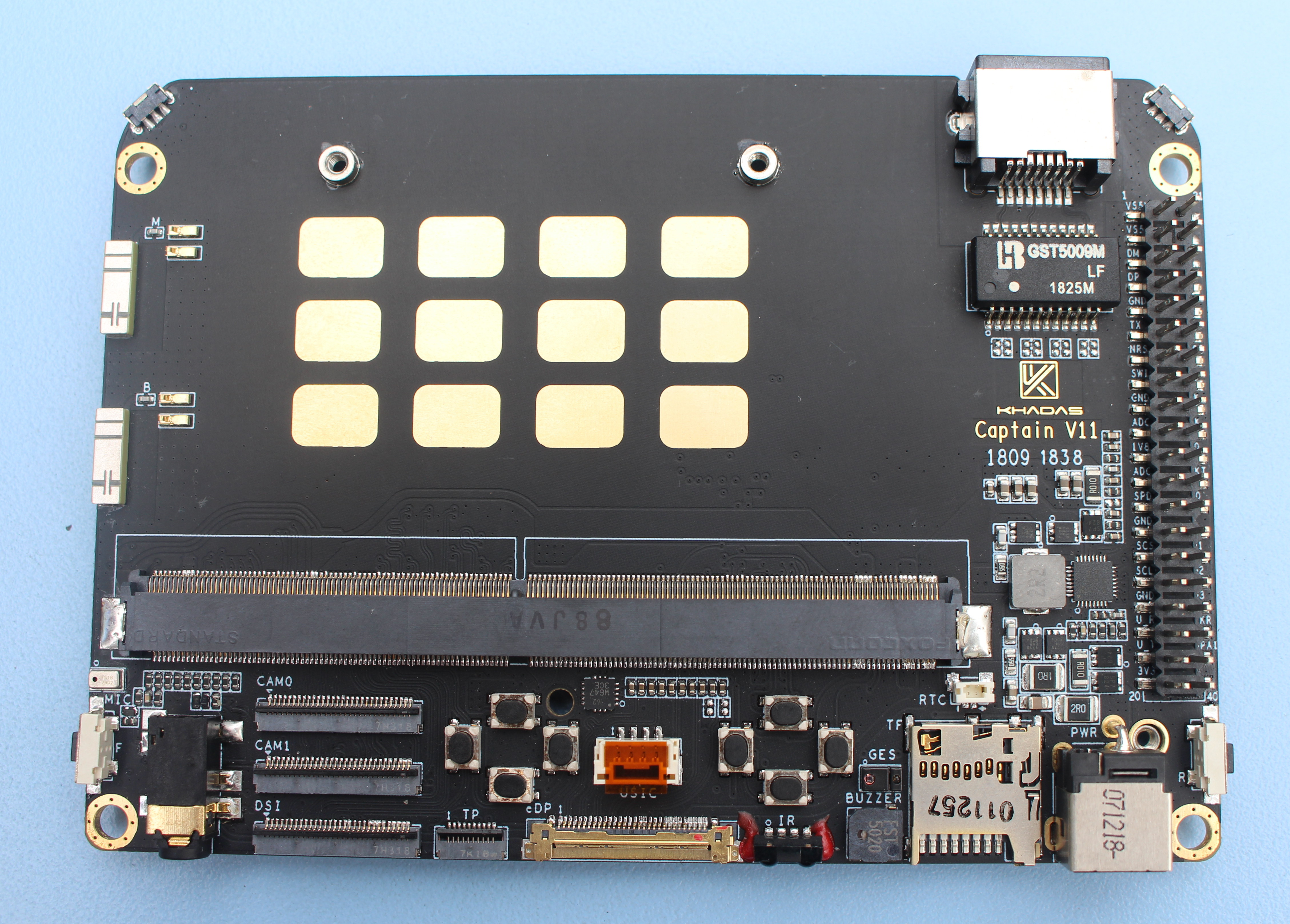

Khadas Captain Board
Click to Enlarge

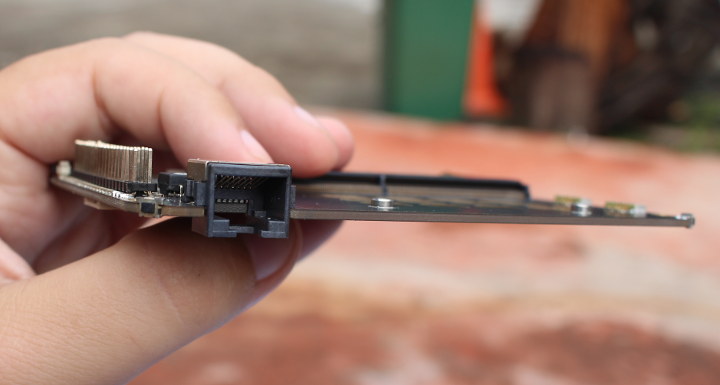

This is what the Captain board looks like without the Khadas Edge module. The 12 golden pads are used for heat spreading, i.e. helping to keep the board cool.Khadas Captain Low Profile Ethernet
They’ve designed the board to keep it as thin as possible, which could be useful for test / build farm density for example, by using a low profile Ethernet connector.
Khadas Edge Ports
Khadas Edge board is also very thin since it only includes an HDMI 2.0 port, and various USB ports with two USB 2.0/3.0 type-A ports, and two USB type-C ports.

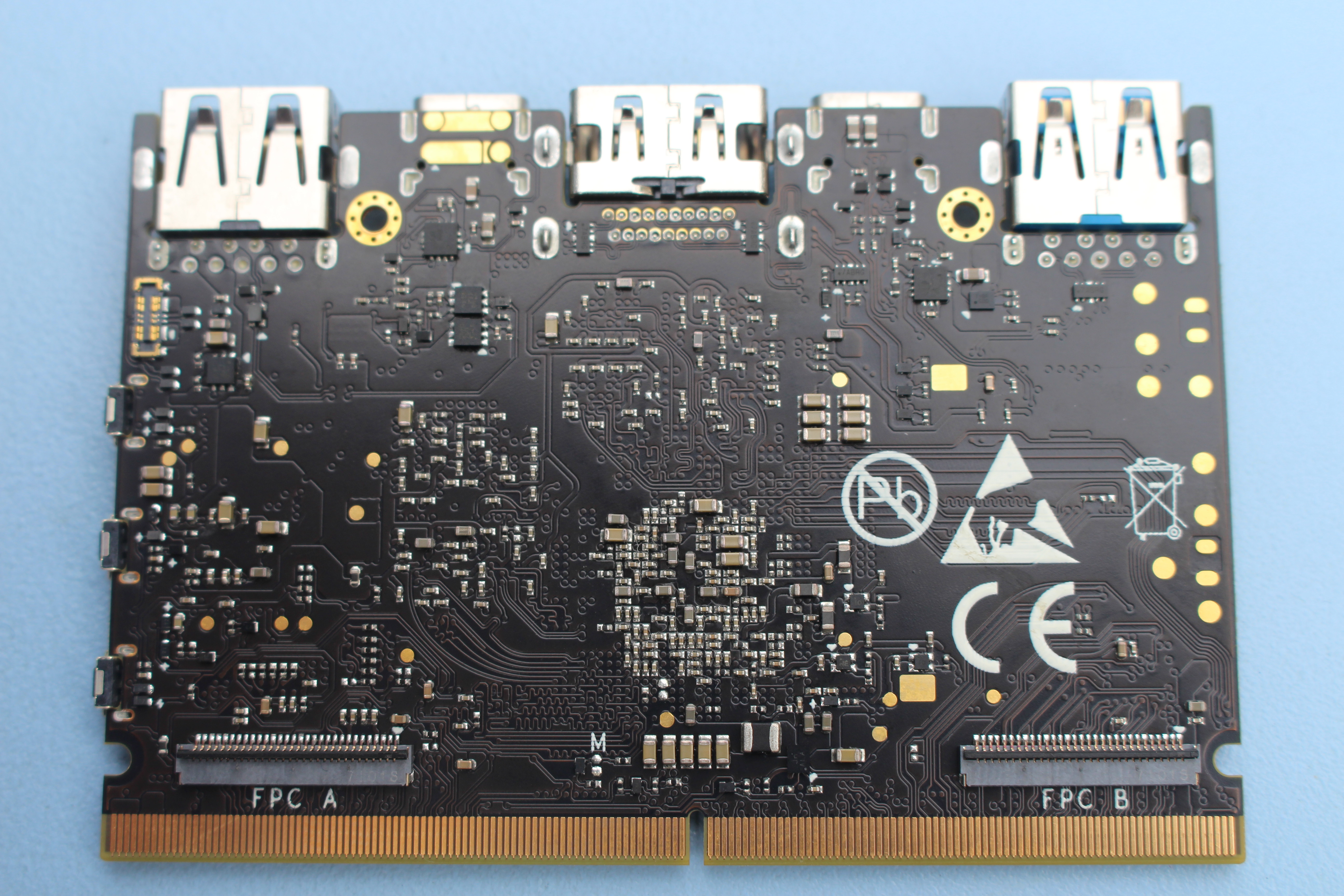

Khadas-Edge-FPC-A-FPC-B-Large
Click to Enlarge

There’s no much to see on the bottom, except for two FPC connectors, and FPC A connector is just where you’d connect the Edge-IO board as show below.

Khadas Edge with Edge-IO Board and Heatsink

Khadas-IO FPC Connector
Click to Enlarge

When the Edge-IO board is inserted into the FPC connector, you can fold it and secure is with spacers. Everything is a bit loose right now, because it’s not the final mounting solution. Indiegogo backers will have a proper solution.

Khadas Edge Edge-IO Installation
Click to Enlarge

Finally, we can add the two antennas, the thermal pad…

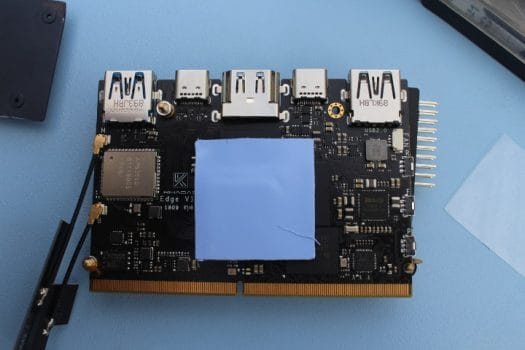

Khadas Edge Thermal Pad
Click to Enlarge

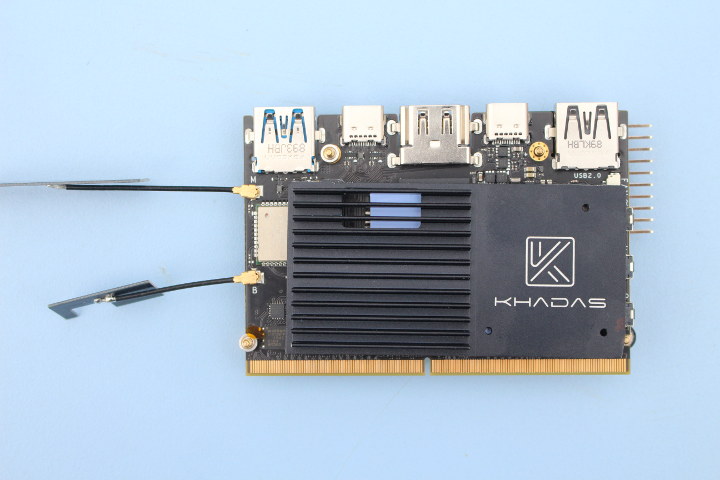

…and the heatsink. which again is just placed on the thermal pad without any screws, but backers will get a proper solution.

Khadas Edge HeatsinkThat will be all for today. I’ll test software a little later, depending on the development status, and my own schedule.

While you can pledge $149 for the Khadas Edge Pro board, Edge-IO, and the heatsink, Shenzhen Wesion added a special reward for CNX readers: Edge Pro – Developer Package for $199 with the similar kit as the one I received for this review, except you’d get Edge Pro board (4GB/32GB configuration), as well as the updated heatsink and mounting kit. Shipping adds $10, and delivery is expected for January 2019.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

8
Leave a Reply

avatar
4 Comment threads
4 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
4 Comment authors
Gouwablutkaiser Recent comment authors
  Subscribe
newest oldest most voted
Notify of
tkaiser
Guest
tkaiser

> Khadas Captain carrier board … adds … a micro USB port

Can’t find the port (most probably typo? Micro SD?). And IMO it’s a bit sad that mounting holes for 2242 and 2260 M.2 cards are missing (for M.2 cards with SATA, Ethernet oder other controllers)

blu
Guest
blu

Why is there a large opening in the radiator? /scratches head

Gouwa
Guest

Do you mean the Heatsink? Actually, it’s VIMs Heatsink with the mount part cutted off, and Edge Heatsink is available here(For some reason, the limited hand-made Edge Heatsink prepared for CNX was not delivered so go with VIMs Heatsink instead): comment image

blu
Guest
blu

Gotcha, thanks.

tkaiser
Guest
tkaiser

Now that Khadas provided a normal Ubuntu image running directly from SD card I started checking the hardware out. Some hints and tips that might help over there: https://forum.khadas.com/t/painlessly-usable-linux-distro/3124

blu
Guest
blu

Are you sure about trying to pin zram handling to the big cores? Wouldn’t that hamper tasks which were pinned to the big cores and hit zram?

[ed] Hmm, then again, if a task has already hit zram, it’d better get a response as fast as possible, i/o style. So disregard this post.

tkaiser
Guest
tkaiser

Just benchmarked Edge/Captain after adjusting device-tree for the usual slight ‘overclock’ (2.0/1.5GHz on big.LITTLE cores instead of the default 1.8/1.4GHz): https://github.com/ThomasKaiser/sbc-bench/blob/master/Results.md

(Not so) surprisingly performance identical to all other RK3399 thingies. The cpuminer scores while looking higher are as expected since this is just the result of different GCC versions used by different distros (Debian Stretch uses 6.3 und Ubuntu Bionic 7.3 — that’s responsible for a +10% better score with this one benchmark).

If Khadas guys switch to CONFIG_HZ_250 (Rockchip’s default is CONFIG_HZ_1000) then memory performance might slightly improve.
