TAIHE Gemini is a 15.6″ Full HD or 4K Portable Display (Crowdfunding)

Portable displays have been available for a while, but they used to be fairly heavy, as for example, Gechic On-Lap Monitor 2501M 15.6″ portable monitor weighted 1.3 kg with cover. However in recent times, we’ve seen several such products – LAPSCREEN and DUO Add-on Display – launched with lighter designs, and the advance as USB type-C and power delivery make those even more attractive since a single cable can be used to transfer video, and power both the display and the host device.

TAIHE Gemini is yet another option, but at 15.6″ is larger than the two aforementioned products, it is equipped with its own battery and kickstand, and comes in two variants with either 1920×1080 Full HD or 3840×2160 (4K UHD) resolution.

TAIHE Gemini 4K Portable Touchscreen Display

TAIHE Gemini FHD & UHD portable displays specifications:

  • Display
    • Gemini FHD – 15.6″ 10-point touchscreen IPS display with 1920×1080 resolution, 15ms response time, 180° kickstand
    • Gemini UHD – 15.6″ IPS display with 3840×2160 resolution, 14ms response time, 180° kickstand
  • Audio  – Dual speakers
  • Ports
    • Gemini FHD –  2x mini HDMI ports, USB type-C port, 2x micro USB ports
    • Gemini UHD – HDMI port, mini DP port, 2x USB 3.0 ports, USB type-C port
  • Battery – 5,000 mAh good for about 5 hours
  • Dimensions
    • Gemini FHD –  8 mm
    • Gemini UHD – 10 mm
  • Weight – ~900 grams

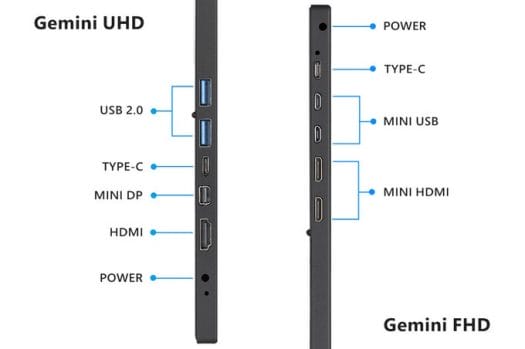

The diagram below shows the ports for both models. The USB 2.0 ports of the UHD model will be upgraded to USB 3.0 at launch since the stretch goal was met.

Gemini UHD Gemini FHDThe display is meant to be used with laptops in either landscape or portrait mode, but you can also connect your smartphone, Xbox, PS4, or Nintendo Switch to play games on a larger screen, or turn Android phone into a desktop computer. Note that only Gemini FHD comes with a touchscreen, and Gemini UHD is non-touch.

TAIHE Gemini has just launched on Kickstarter with a $10,000 funding target. But the demand for the display has been great so far, with close to $500,000 raised from around 1,700 backers at the time of writing. You can now pledge $189 to get an early bird Gemini FHD touchscreen display, and $299 for the Gemini UHD display. Adding $15 will get you a sleeve to safely store your display. Shipping adds $25 worldwide, and you should be expecting your reward(s) around May 2019.

Via Liliputing

13
Leave a Reply

avatar
2 Comment threads
11 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
6 Comment authors
jim stback2futureDiegotkaiserSander Recent comment authors
  Subscribe
newest oldest most voted
Notify of
willy
Guest
willy

Their marketing team needs to be replaced. The first photo shows a white-and-black miniature video on the display, which really isn’t an appealing way to promote an external display. And moreover they couldn’t avoid hideous glares on the screen, making one figure there’s really no way to get a pleasant experience with it. Ah and on the promotion video they managed to write “Andriod” on the logo 🙂 All of this looks a bit rushed and doesn’t make me expect a slightest bit of consideration for quality from there.

tkaiser
Guest
tkaiser

> Ah and on the promotion video they managed to write “Andriod” on the logo

Maybe not even a mistake… just the try to ensure that people who care about details are scared away immediately (similar to the way spam in our inboxes is ‘designed’ –> to ensure only really clueless people will click on the links).

Another funny detail is the constant switch between a Chromebook and a MacBook (see e.g. at 1:40 in the video) suggesting that certain gesture features like zooming in would also work when running on a MacBook with macOS.

jim st
Guest
jim st

I’ve not had a problem with my Asus with my laptop. I’m thinking about trying out one of the USB C upgraded ones, even though I’ve got an older laptop to see what happens. The current unit I’ve got works great, though mainly use it with windows and sometimes with a mac laptop.

Sander
Guest
Sander

Nice, but why not just buy the “ASUS MB169B+ 15.6″ Full HD 1920×1080 IPS USB Portable Monitor” for 189 USD at Amazon? Easier and safer (with the Asus + Amazon brand names)

tkaiser
Guest
tkaiser

The Asus MB169B is not an external HDMI/DP display but USB3 attached via DisplayLink — just use a search engine with this term to get an idea about all the stuff DisplayLink is ‘famous’ for: artifacts, delays, driver hassles and so on…

Diego
Guest
Diego

That was my question i was about to ask… Everywhere only written about a single USB cable, no further info about alternate modes etc…

tkaiser
Guest
tkaiser

> Everywhere only written about a single USB cable

With USB-C ‘single USB cable’ wouldn’t be an issue (since this is the main invention with USB-C: one cable to transport power, data and display output at the same time without additional wiring). But if ‘USB3’ is mentioned as protocol you already know that it’s not about one of the 5 defined Alternate Modes all providing flawless display output via USB-C but something proprietary.

Some more info on DisplayLink: https://www.cnx-software.com/2017/02/03/targus-universal-displaylink-docking-stations-support-up-to-six-4k-monitors-via-a-single-usb-cable/

back2future
Guest
back2future

Display has already battery support for making it a handy wireless display with AirPlay2, Google cast/Google home/Chromecast or Miracast support. For Screen Mirroring (Samsung) or Multiroom (Apple) and Microsoft Continuum streaming support (Miracast).
Usb-C is a battery charging/power backup and 2nd data transfer option for a portable display at this size.
On rural areas at developing countries Usb-C even replaces main power supply to some extent. That’s progress there for safety and cost saving, some combined with solar power.

Diego
Guest
Diego

Didn’t find USB-C in India other than as a charging port on a mobile. I know India is quickly changing, but I doubt they changed the mains from 240V to USB-C in the last 3 months…

Diego
Guest
Diego

Honestly why would you want to have a non graphics oriented connection to a pure display? Worst case mhl, if that still exists… Else DP, HDMI, USB-C w/ some alternate mode or DVI when space permits.

jim st
Guest
jim st

I don’t know that I would want an external HDMI display like this. The external ASUS and the like are just powered off the laptop (must have power to do that), and with power supply operation, there’s not limit on operating it.

I don’t do much of anything which I need a standalone powered display with need to recharge. I’m guessing there are people who do things out and about away from power, but my use case with a laptop is to be set up near power and net services, and have a portable light computer (and possibly an extra display).

my most frequent use of battery power is when I have problems in my computer pile is to just pick up the laptop and walk into where the systems are and have the system right there, but I usually go back to where I work and reconnect to power there.

jim st
Guest
jim st

I’ve not had a problem with my Asus with my laptop. I’m thinking about trying out one of the USB C upgraded ones, even though I’ve got an older laptop to see what happens. The current unit I’ve got works great, though mainly use it with windows and sometimes with a mac laptop.

tkaiser
Guest
tkaiser

> I’ve not had a problem with my Asus with my laptop.

Still the Asus unlike the above display uses DisplayLink which is something entirely different than DisplayPort (USB-C Alternate mode). The latter will always work, the former needs a driver and doesn’t deal that great with dynamic display updates at higher resolutions by design. See this comment and the two last ones: https://www.cnx-software.com/2017/02/03/targus-universal-displaylink-docking-stations-support-up-to-six-4k-monitors-via-a-single-usb-cable/#comment-538703
