$30 Arch Mix Development Board Features NXP i.MX RT1052 Crossover Processor

NXP i.MX RT Arm Cortex-M7 crossover processors are supposed to fill the gap between microcontrollers and more powerful application processors thanks to real-time capabilities, and a higher CPU frequency. We’ve already covered several i.MX RT1050 series platforms including NXP’s own evaluation board and Forlinx OK1052-C development kit comprised of a carrier board and an i.MX RT1052 system-on-module.

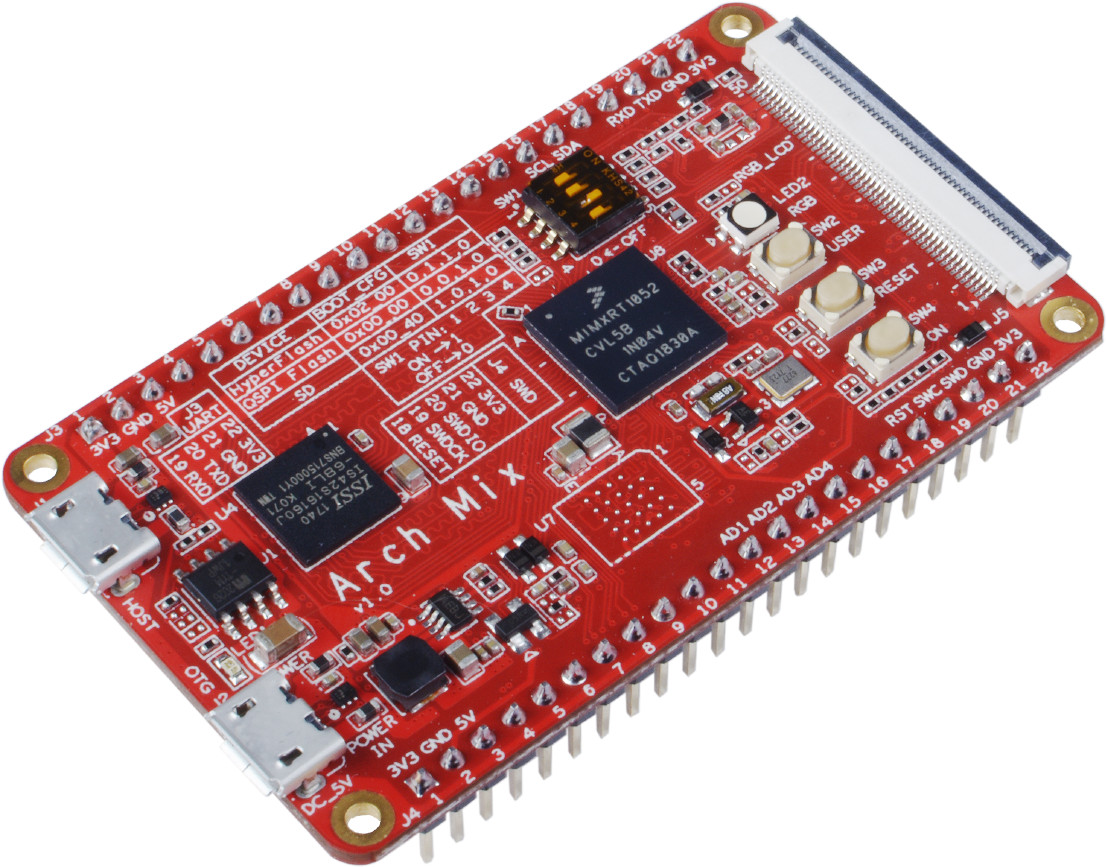

But if you’d like to experiment with NXP i.MX RT processor using a cheaper, smaller, and easier to purchase development platform, Seeed Studio has started to sell Arch Mix development board for $29.90 plus shipping.

Click to Enlarge

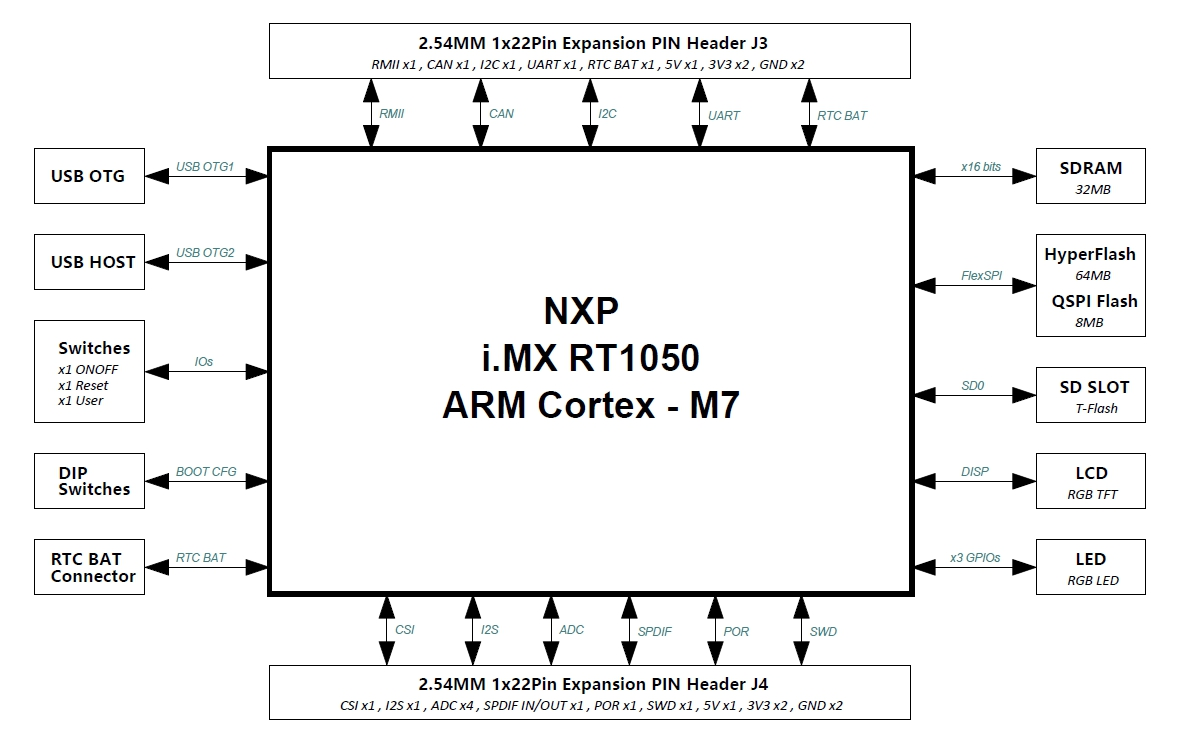

Arch Mix board specifications:

  • SoC – NXP i.MX RT1052 Arm Cortex-M7 processor @ up to 528MHz
  • System Memory – 32MB SDRAM
  • Storage – Optional 64MB Hyperflash, 8MB QSPI flash, microSD card socket
  • Display I/F – RGB LCD interface
  • USB – 1x micro USB 2.0 host port, 1x USB OTG port for data and power
  • Expansion Headers – 2x 22-pin headers (2.54mm pitch) with RMII, CAN, I2C, UART, CSI, I2S, 4x ADC, S/PDIF IN/OUT, SWD, power signals (5V, 3.3V, GND)
  • Misc – Power LED, RGB LED, boot configuration DIP switch, power, reset and user buttons, RTC battery header
  • Power Supply – 5V via micro USB port
  • Dimensions – 67mm x 39mm
Click to Enlarge

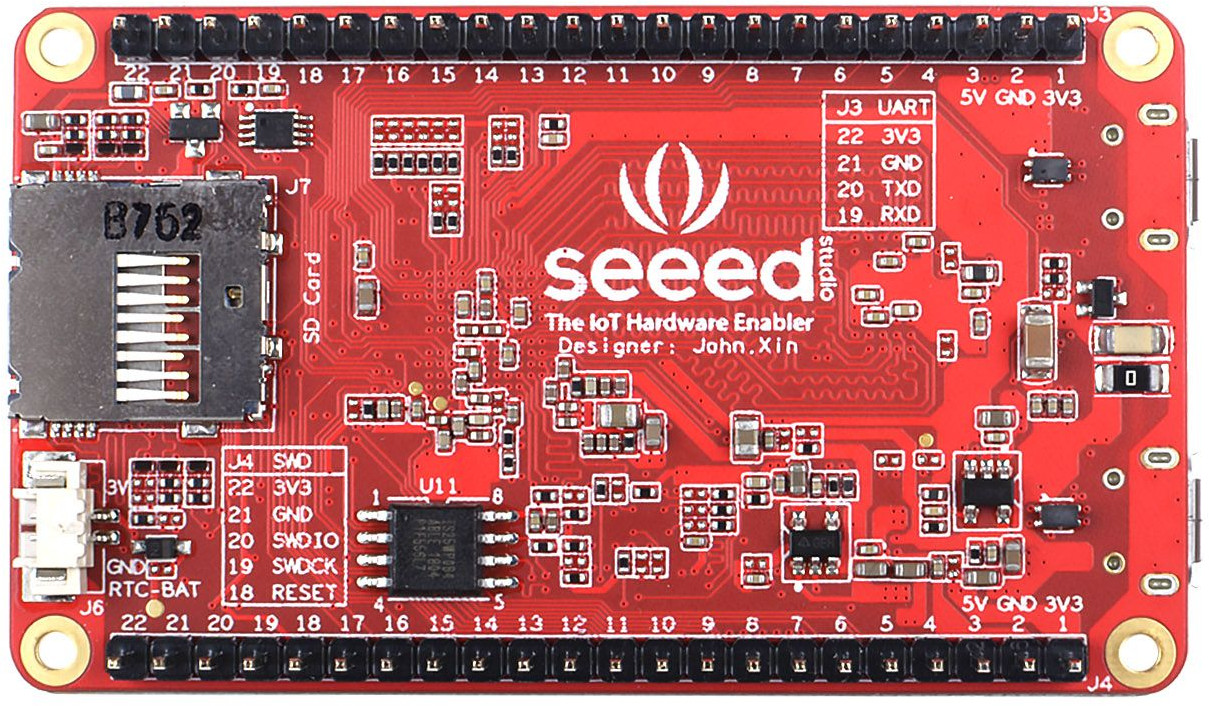

The RT1052 development board comes pre-loaded with RT-Thread real-time operating system with build-in Micropython support. I could not find much details about the software on Seeed Studio’s product page, but RT-Thread is described as “an open source IoT operating system from China” with strong scalability working on Arm Cortex-M0 platforms to MIPS32 or Arm Cortex-A9 targets. The source code and releases can be found in Github. [Update: the board’s Wiki page is now up]

The board is said to be suited for industrial control, smart building, industrial human machine interfaces (HMI), automation & process control, as well as robotics applications.

Click to Enlarge
Share this:

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

2 Replies to “$30 Arch Mix Development Board Features NXP i.MX RT1052 Crossover Processor”

  1. Looks like the hyperflash is missing ion the board in the pictures…
    According to their Wiki, it’s optional, so that might not be included in the board for $30…
