Mecool K6 Dual DVB-T2/T/C + DVB-S2 Tuner TV box is Powered by HiSilicon Hi3798M Processor

VideoStrong has launched many Amlogic based Android TV boxes with one or two digital TV tuners, often under the Mecool brand, over the years. But their latest Mecool K6 set-top box features instead an HiSilicon Hi3798M processor with GB RAM, 16GB storage, and two independent tuners supporting DVB-T2/T/C and DVB-S2 standards for respectively terrestrial & cable TV, and satellite.

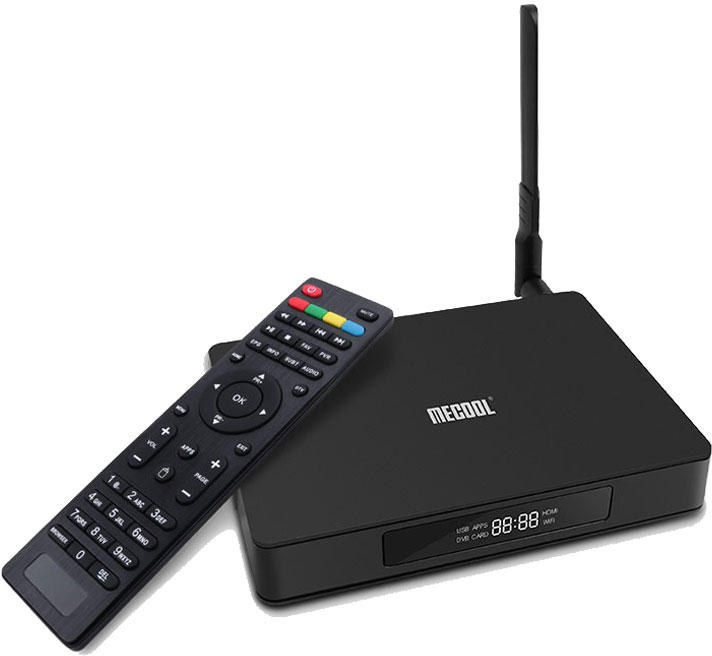

Mecool K6

Meecool K6 set-top box specifications:

  • SoC – Hisilicon Hi3798M quad-core Arm Cortex-A53 processor, Arm Mali 450MP GPU
  • System memory – 2GB DDR3
  • Storage – 16GB eMMC Flash, microSD card slot up to 32GB
  • Video Output – HDMI 2.0 up to 4K/2K with HDCP2.2, HDR; AV port (composite)
  • Video
    • Decoder
      • HiVXE 2.0 Processing Engine
      • 10-bit H.265/HEVC, H.264 AVC, 10-bit VP9 up to 4Kx2K @ 60 fps
    • Encode – H.265 up to 1080p30 or 2x 720p30 fps
    • HDR – HDR10 & HLG
  • Audio Output – HDMI digital audio, stereo audio via AV port, optical S/PDIF
  • Tuner
    • DVB-S2 (ETS 302 307) tuner
    • DVB-T2 (ETSIEN 302 755) + DVB-C (ETSI EN300 429 V1.2.1) tuner
    • Coaxial RF input, F-type RF input
    • Unicable support
  • Connectivity – 10/100M Ethernet, dual band 802.11 b/g/n/ac WiFi 5 + Bluetooth 4.1 with external antenna
  • USB – 1x USB 2.0 port, 1x USB 3.0 port
  • Misc – Power/standby LED, front panel display
  • Power Supply – 12V/1A
  • Dimensions – 16.20 x 12.10 x 2.90 cm
  • Weight – 234 grams

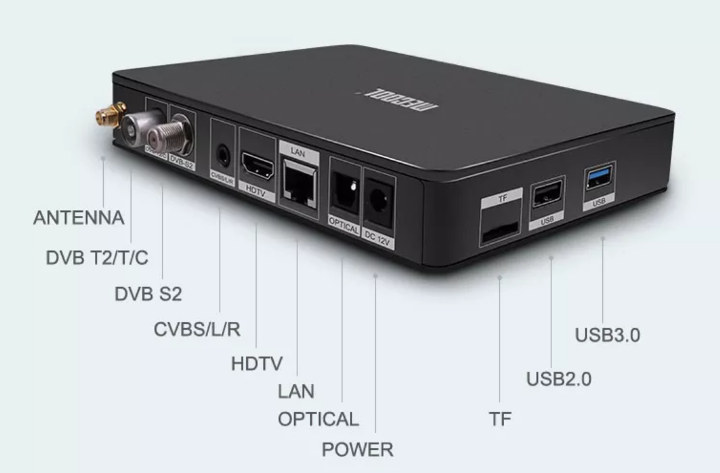

DVB-T2 DVB-S2 Hisilicon Hi3798M

The box runs Android 7.0 operating system (not the Android TV version), and ships with an HDMI cable, an IR remote control, a power adapter, and a user manual. It looks like the DTV app for the tuners and found in Amlogic boxes have been ported to HiSilicon too. If that’s indeed the same app, you can check out our previous posts and videos about the DTV setup part as well as watching live channels, accessing EPG, etc.. from satellite dish or terrestrial antenna. StbEmu app for compatibility with Stalker MAG25x IPTV middleware is also includes.

Mecool K6 can be purchased on Banggood ($76.99), as well as GearBest which currently runs a promotion for $69.99 for the next four days.


Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

Radxa ROCK 5C (Lite) SBC with Rockchip RK3588 / RK3582 SoC
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 years ago

No DVB-CI support means it’s useless in most countries outside very limited unencrypted content. Massive oversight in the hardware specs.

Ygor Almeida
5 years ago

HiSillicon means no ELEC ports, what about kodi on this android box… How does it run? No turners in kodi i guess. Why do they drop 1gbit lan connection… Blaahhhhh

5 years ago

I think that it works with openatv. alot of hisilicon device add oe-alliance like U5Pvr. But old hardwer.
k6 anroid 7+ enigma2 (mecool dont support your box. no try to add openatv project)
but sheap than other hi3798 based dvb receiver
k1 pro
openelec+coreelec+ vitmod (neutrino+openpli)+ android 7 +vitmod atv and ubuntu
