MORPHEUS Claims to be an Unhackable RISC-V Processor Architecture

Code gets continuously written and updated for new features, optimizations and so on. Those extra lines of code sometimes come at a cost: a security bug gets inadvertently introduced into the code base. The bug eventually gets discovered, a report is filled, and a software fix is committed to solve the issue, before the new software or firmware to push to the end user. This cycle repeats ever and ever, and this means virtually no software or device can be considered totally secure.

The University of Michigan has developed a new processor architecture called MORPHEUS, and that blocks potential attacks by encrypting and randomly reshuffling key bits of its own code and data several times per second through a “Churn Unit”.

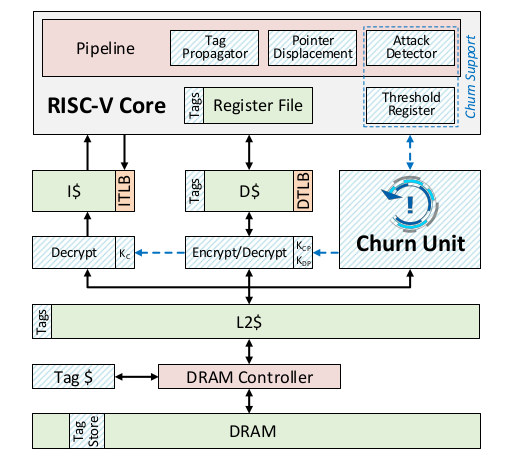

MORPHEUS Unhackable RISC-V ProcessorThe new RISC-V based processor architecture does not aim to solve all security issues, but focuses specifically on control-flow attacks made possible for example by buffer overflows:

Attacks often succeed by abusing the gap between program and machine-level semantics– for example, by locating a sensitive pointer, exploiting a bug to overwrite this sensitive data, and hijacking the victim program’s execution. In this work, we take secure system design on the offensive by continuously obfuscating information that attackers need but normal programs do not use, such as representation of code and pointers or the exact location of code and data. Our secure hardware architecture, Morpheus, combines two powerful protections: ensembles of moving target defenses and churn. Ensembles of moving target defenses randomize key program values (e.g., relocating pointers and encrypting code and pointers) which forces attackers to extensively probe the system prior to an attack. To ensure attack probes fail, the architecture incorporates churn to transparently re-randomize program values underneath the running system. With frequent churn, systems quickly become impractically difficult to penetrate.

EMTD + Churn
EMTDs (Ensembles of moving target defenses) + Churn against no protection or EMTD protection only

The chip’s churn rate is set to 50ms by default since it only slows performance by about 1% and is said to be several thousand times faster than the fastest electronic hacking techniques. But it can adjusted, and the processor does increase the churn rate is a suspected attack is detected by the built-in attack detector.

MORPHEUS architecture was successfully tested  using real-world control-flow attacks including stack overflow, heap overflow, and return-oriented programming (ROP) attacks, as all of the attack classes were stopped in a simulated Morpheus architecture

You can find more details in the paper entitled “Morpheus: A Vulnerability-Tolerant Secure Architecture Based on Ensembles of Moving Target Defenses with Churn“.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

Radxa ROCK 5C (Lite) SBC with Rockchip RK3588 / RK3582 SoC
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
willy
willy
5 years ago

The limit to such mechanisms is the time it takes to debug your code. In 1996 I did something along that vein with a friend. We wanted to protect one of our programs against reverse engineering and we used two interleaved state machines for this, each using the other one’s outputs to make progress, one providing function pointers and the other one their arguments. Their sequence was pseudo-random and allowed the program to make forward progress. Among the target functions and args were kill() and SIGTRAP, which were used as one of the state machine’s clock (the other one being… Read more »

theguyuk
theguyuk
5 years ago

There use to be programs that ran while zipped or compressed. Write the program, debug the program, then try running it with encrypted compression.
Let the hackers chew on that.

Other method, tokenize your code, just as Sinclair tokenized Sinclair basic, so storage took less space. His basic was compiled at run time.

Occam
Occam
5 years ago

Tokenization is just simple substitution encryption. Easy to attack.

dgp
dgp
5 years ago

>There use to be programs that ran while zipped or compressed.
>Write the program, debug the program, then try running it with encrypted compression.

Unless your machine somehow runs encrypted byte code it has to extract that code before actually running it.
Which means A: your plaintext code will be in memory at some point, B: you have to have plaintext code for the decompressor in memory somewhere. Personally I would just attack the decompressor.

Roger Melly
Roger Melly
5 years ago

White Star Line claimed that the Titanic was “practically unsinkable”. The University of Michigan News preposterous headline “Unhackable: New chip stops attacks before they start” should be taken with even less credibility. Disasters (not those of poor planning or the failure to maintain integrity types) almost always arise from weaknesses that were either not anticipated or considered too improbable. What happens if the crackers are somehow able to gain access not to the program assets or data but to the randomizing process its-self and cause corruption of the encryption process so that the “program assets” are corrupted and cannot be… Read more »

theguyuk
theguyuk
5 years ago

Some entertaining thoughts there 🙂

I am reminded of the MCU running on Amlogic, Raspberry tart and others, that controls boot, CPU clock reported and more. How has hacking of them progressed?

dgp
dgp
5 years ago

I hear what you’re saying and I suspect if this ever did go mainstream we would see researchers eventually find situations where part of the churn state was leaked and the whole thing was made useless. On the other hand considering how useless people are at using even basic protections that have been available for decades in their software having efforts move right into the chip seems like a good idea to me.
