AAEON Launches BOXER-8150AI Compact Embedded Box PC Features 8 USB 3.0 Ports

The new compact embedded solutions’ addition to the BOXER-8100AI family is specially designed for artificial intelligence (AI) support. According to its makers, AAEON, it has a configuration of eight USB 3.0 ports made available through four USB controllers chips. This makes it perfect for a wide range of computer vision applications, some of which are visual inspection, quality control, and facial recognition.

Now, each USB chip controls a pair of USB 3.0 ports. By dedicating one chip to one pair of ports, each chip handles less data traffic overall.

BOXER-8150AI
This also improves bandwidth from connected devices and allows the BOXER-8150AI to maximize speeds and framerates of AI image processing.

The product is currently in stock and available for purchase on AAEON online store for $1,142.00.

Key Features of BOXER-8150AI

  • Nvidia TX2 Module
  • HMP Dual Denver 2 + Quad ARM A57
  • 8GB LPDDR4
  • 32GB eMMC 5.1
  • HDMI 2.0
  • 8x USB 3.0
  • 1x GbE LAN
  • 1x COM
  • Compact Size chassis

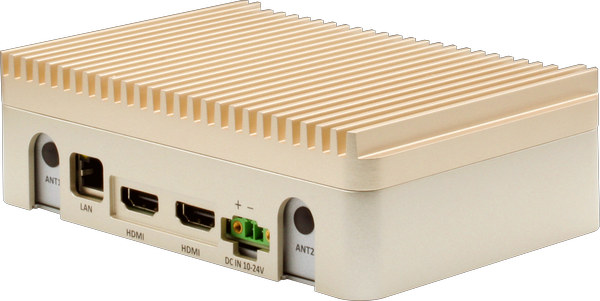

AAEON BOXER-8150AI

The Embedded Box PC ships with a wall-mount bracket and a power connector, and supports Linux distributions such as AAEON ACLinux 4.4, or Ubuntu 16.04.

Detailed Specifications of BOXER-8150AI

SYSTEM
CPU HMP Dual Denver 2 + Quad ARM A57
Chipset N/A
System memory 8GB LPDDR4
Display interface 2x HDMI 2.0
Storage device 32GB eMMC 5.1
MicroSD
Ethernet 1x 10/100/1000 Base-TX
I/O 8x USB 3.0 Type-A port, 1x micro USB OTG
1x DB-9 for RS-232
2x HDMI 2.0
Power Switch
2-pin 10~24V DC-in Connector
1x RJ-45 for GbE LAN Ethernet
2x Antenna Holes
1x MicroSD
Expansion SATA x1 (option)
DB-9 RS-232 x1 (option)
2 channel CANBUS x1 (option)
Indicator Power LED
OS support Linux (AAEON ACLinux 4.4, Compliance with Ubuntu 16.04)
POWER SUPPLY
Power requirement 10~24V with 2-pin terminal block
MECHANICAL
Mounting Wall mount
Dimensions (W X H X D) 153mm(W) x 45mm(H) x 101mm(D)
Gross weight 4.40 lb (2 Kg)
Net weight 2.2 lb (1 Kg)
ENVIRONMENTAL
Operating temperature Operating Temperature -4°F ~122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow; with Industrial Device)
Storage temperature -13°F ~176 °F (-25°C ~ 80°C)
Storage humidity 95% @ 40°C, non-condensing
Anti-vibration Random, 3 Grms, 5~500Hz
