GIGABYTE GA-PICO3350 Apollo Lake Pico-ITX Board Comes with SO-DIMM RAM Slot, SATA and mSATA Storage

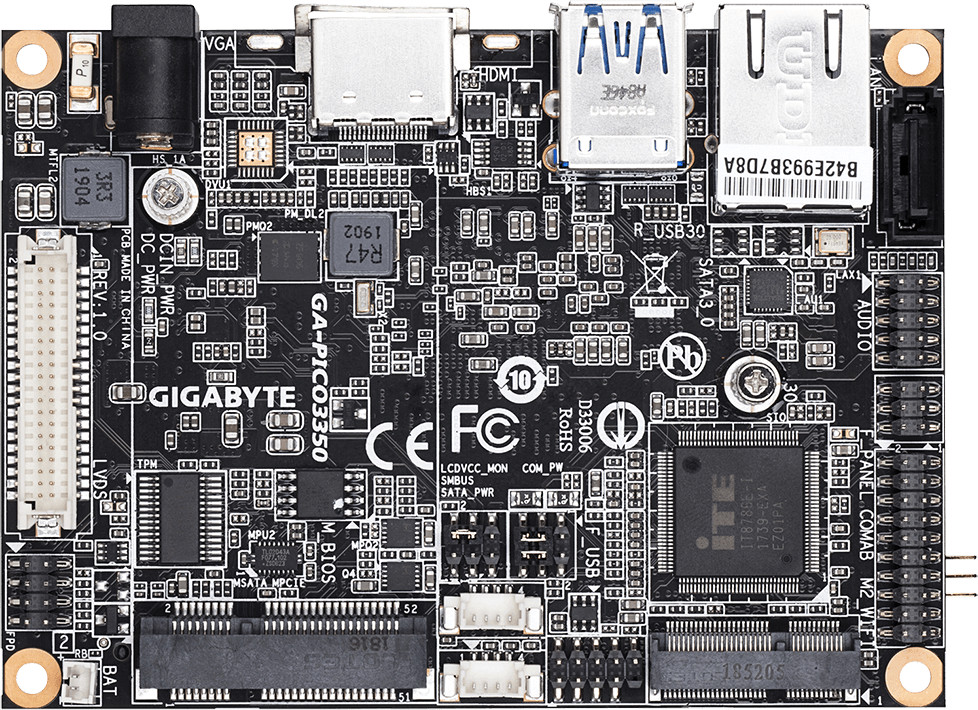

GIGABYTE Pico-ITX Motherboard
Click to Enlarge

GIGABYTE GA-PICO3350 may be the smallest motherboard from the company so far. The Pico-ITX board comes with an Intel Celeron N3350 dual-core Apollo Lake processor with a SO-DIMM slot, SATA port, and mSATA socket that give you more options will selecting RAM and storage.

GA-PICO3350 specifications:

  • SoC – Intel Celeron N3350 dual-core Apollo Lake processor @ up to 2.4 GHz with 2 MB cache, Intel HD graphics; 6W TDP
  • System Memory –  1 x DDR3L SO-DIMM socket supporting up to 8 GB DDR3L 1866/1600 MHz
  • Storage- 1x SATA 6Gb/s connector,  1x mSATA connector (multiplexed with mPCIe), 128 Mbit flash for BIOS/UEFI
  • Video Output
    • HDMI 1.4 up to 3840×2160 @ 30 Hz
    • 1x LVDS header
    • 1x flat panel display header
  • Audio – Realtek ALC887 codec, 1x front panel audio header
  • Connectivity – Gigabit Ethernet port via Realtek PHY
  • USB – 2x USB 3.0/2.0 ports on the back panel, 2x USB 2.0/1.1 ports available through the internal USB headers
  • Expansion
    • 1x M.2 Socket  connector for the wireless communication module (M2_WIFI)
    • 1x full-size Mini PCIe slot (MSATA_MPCIE)
    • 1x GPIO header
    • 1x SMBUS
    • 1x serial port header
  • Misc – Front panel header,  serial port power select jumper (COM_PW), LCDVCC/MON header (LCDVCC_MON),  battery cable header, iTE I/O controller chip, HW/monitor with voltage & temperature detection
  • Power Supply -12V DC
  • Dimensions – 10 x 7.2 cm (Pico-ITX form factor)

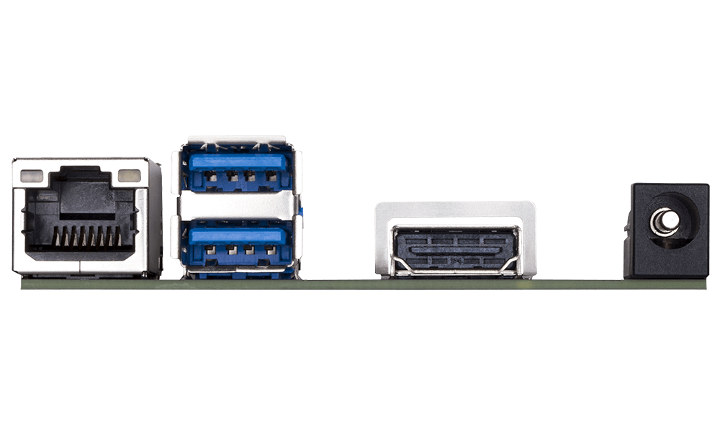

GA-PICO3350 Ethernet,HDMI & USBThe board officially support Windows 10 64-bit, but Linux distributions should be supported although if you decided to install a Linux operating system don’t expect support from GIGABYTE:

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.

The board ships with the driver disc, a user’s manual, one COMA/B port cable
one audio cable, two SATA cables, one SATA power cable, one USB cable, and one heatsink.

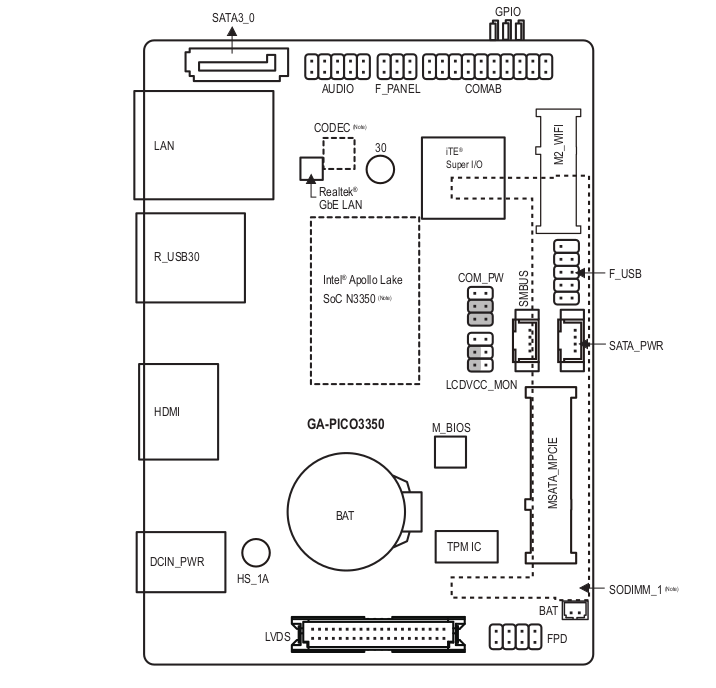

ga-pico3350 componentsI could not find pricing anywhere at this stage, although it’s listed on a German reseller but without price info. The board targets the industry and the embedded space, so it won’t be as cheap as a consumer board.

More details, including the user’s manual, BIOS and Windows drivers, can be found on the product page.

Via FanlessTech

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
Cyk
Cyk
2 years ago

Such boards typically cost about $200-300.
For a price indication, got to mouser.com, and search for N3350.

So far the cheapest board in that size/speed range is the Odroid H2 (J4105 2.5GHz). Most bang for the buck.

Robert
Robert
2 years ago

The larger brother is listed in Germany for 149€: https://geizhals.de/gigabyte-ga-sbcap3350-a1702866.html?show_description=1
But there is only one shop!

tkaiser
tkaiser
2 years ago

> But there is only one shop!

The GA-SBCAP3350 is from 2017 and at this shop there’s just one single remaining unit available…

TLS
TLS
2 years ago

Gigabyte’s embedded division makes a lot of things like this, just not available to the general public.
They also have a wide range of various ARM based boards, again, not available to the general public.
