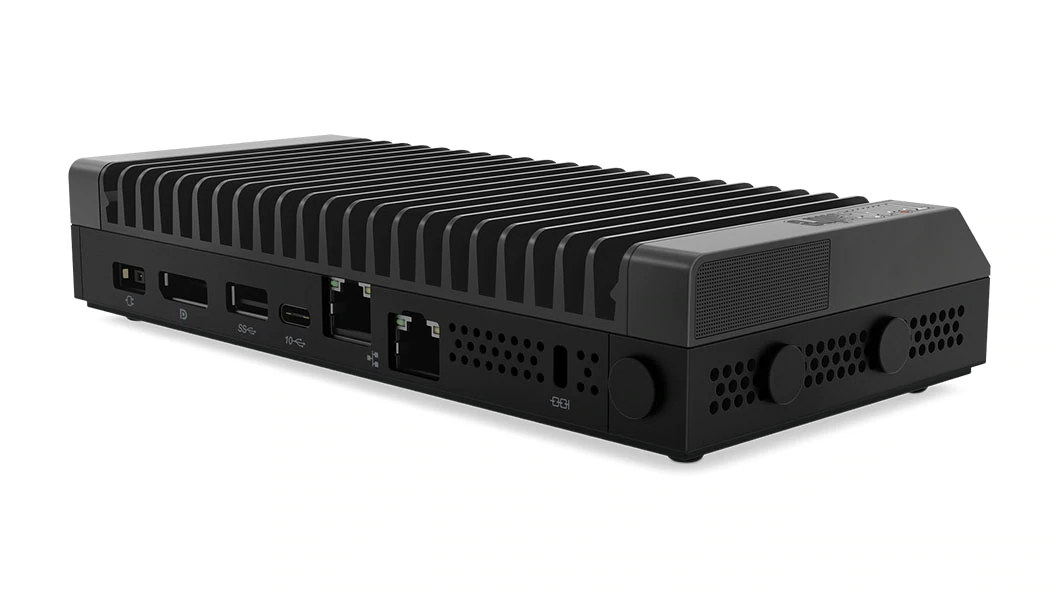

Lenovo ThinkCentre M90n Nano IoT Fanless Mini PC is Powered by an Intel Whiskey Lake Processor

We’ve been covering mini PCs for several years, but I’ve just noticed we never wrote about Lenovo mini PCs probably as they were no that small, and higher price points. But today, I’ve come across Lenovo ThinkCentre M90n Nano IoT, a fanless mini PC powered by a dual-core Intel Celeron 4205U or Core i3-8145U Whiskey Lake processor.

The mini PC also comes with 4GB DDR4, a 256GB SSD, DisplayPort video output, Gigabit Ethernet, several USB ports, two COM ports, and more.

Lenovo ThinkCentre M90n Nano IoTLenovo ThinkCentre M90n Nano IoT specifications:

  • SoC (one or the other)
    • Intel Celeron 4205U dual-core Whiskey Lake processor @ 1.80 GHz with Intel UHD Graphics 610; 15W TDP
    • Intel Core i3-8145U dual-core / four-thread Whiskey Lake processor @ 2.10 GHz (base) /  3.90 GHz (turbo) with Intel UHD Graphics 620; 15W TDP
  • Memory – Up to 4GB DDR4 (on-board)
  • Storage – 256GB or 512GB M.2 SSD
  • Video Output – DisplayPort
  • Audio – Headphone / mic combo jack
  • Connectivity – Up to 2x Gigabit Ethernet ports, optional 802.11ac 2 x 2 WiFi 5 & Bluetooth 4.0
  • USB – 2x USB 3.1 port, 2x USB-C 3.1 Gen 2 ports, 1x USB 2.0 port
  • Serial – 2x DB9 serial ports
  • Expansion – M.2 socket for WiFi
  • Security – TPM 2.0,  Kensington lock slot
  • Misc – Supports USB-C docking
  • Power Supply – 65W adapter
  • Dimensions – 179 x 88 x 22mm
  • Weight – 720g

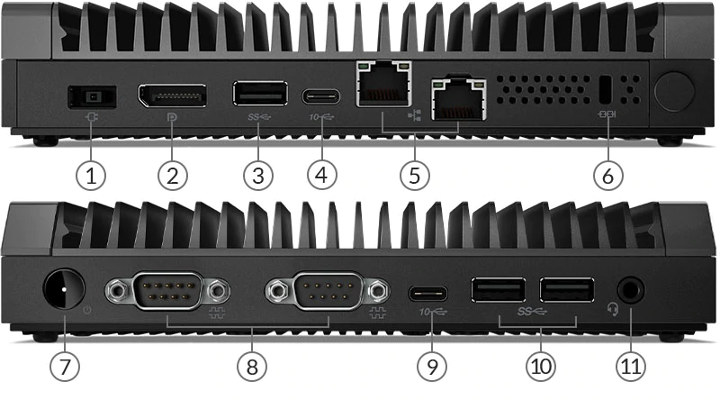

ThinkCentre M90n Nano IoT PortsThe company supports Windows 10 Home,  Windows 10 Pro, and Windows 10 IoT for the mini PC, which also has certification for Microsoft Azure IoT Edge. The Celeron model comes with a single Gigabit Ethernet port, against dual Gigabit Ethernet for the Core i3 variant.

ThinkCentre M90n Nano IoT appears to be available now for $355 and up depending on options. Alternatively, there’s also the more powerful ThinkCentre M90n Nano without cooling fins nor serial port, that sells with Core i3 to i7 Whiskey Lake processors up to 16GB RAM for $439 and up.

M90n Nano IoT vs M90n Nano

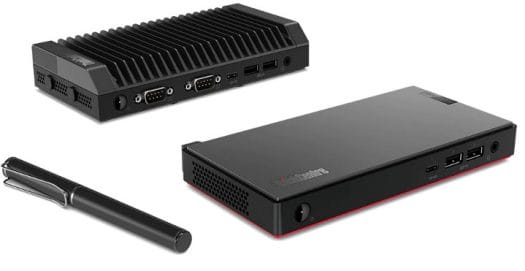

M90n Nano IoT (left) and M90n-Nano (right) – Pen shown for scale
Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

5 Replies to “Lenovo ThinkCentre M90n Nano IoT Fanless Mini PC is Powered by an Intel Whiskey Lake Processor”

  1. It could be good for POS as it has featureful connectivity (that’s likely why they’ve put true RS232 by the way). It could possibly also make a reasonable office machine for low use.

    1. What advantage does a “proper” serial port still have nowadays? The times of direct access to port numbers are long over, isn’t it? We are in the meantime preferring USB serial converters due to their better isolation of the ground and chassis.

      1. When you have to connect a ticket printing machine or a credit card reader for a point of sale, you’d rather limit the number of cables and adapters to the strict minimum. Connect your DB9 cable, screw it and it will last 30 years if needed. Do the same with a USB-to-DB9 adapter and it gets disconnected every 2 weeks on average, requiring a reload of the application since the port changed name when replugging it while the application is still bound to the port, not to mention the risk of short-term failure due to the low quality of the components employed in the vast majority of these $2 cables (and the fact that anything more expensive is just the same since it’s what the market looks for).

        1. Ok valid point! Safely locking USB connectors and by extension also HDMI has never been a concern to the developers. We fought with those and RJ45 plugs in aircrafts not only due to vibration.

          Nowadays we are only using serial for maintenance.

          What i can’t understand is why windows is doing this renumbering game, it’s outright stupid.

          1. It’s not only windows, linux as well. And you don’t have a real choice, the existing device cannot be release while it’s still in use by the application. This is typically the case when you have a ticket printer. It would be better solved by the application if it would only open the device while printing and the close it afterwards, but the reality is that it would not completely solve it since chances of unplugging are higher during operation anyway (moving parts = vibrations = moving cables).
