MikroTik wAP LoRa8/LoRa9 LoRa Gateway Kits Launched for $169

Last year, MikroTik announced they had worked on several LoRa products including R11e-LoRa8EU mini PCIe LoRaWAN Gateway/concentrator card, wAP LoRa8 kit (LoRa & WiFi gateway) with the mini PCIe card, as well as a 6.5 dBi Omni antenna kit to extend the range provided by the 2 dBi internal antenna.

All three products are now available with R11e-LoRa8EU mini PCIe selling for $89, wAP LoRa8 kit going for $169, and the optional antenna kit adding $49. The company also introduced wAP LoRa9 kit with R11e-LoRa9 mini PCIe card geared towards markets (like the USA) using the 902-928 MHz frequency band and selling for the same price.

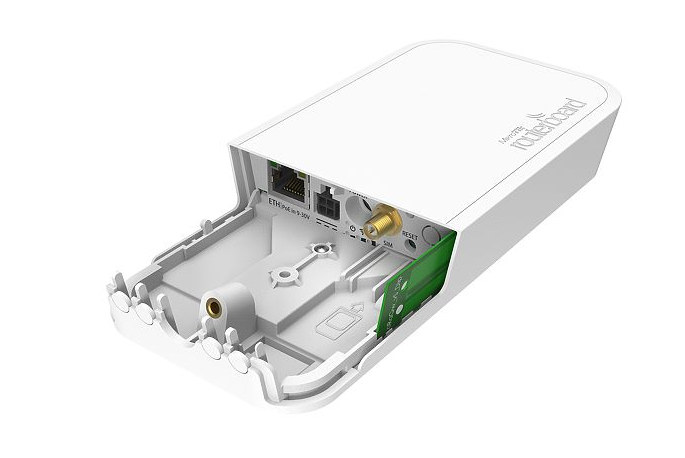

MikroTik wAP LoRa8 KitMikroTik wAP LoRa8 kit (RBwAPR-2nD&R11e-LoRa8) specifications:

  • SoC – Qualcomm Atheros QCA9531 MIPSBE (Big Endian) processor @ 650 MHz
  • System Memory – 64 MB RAN
  • Storage – 16 MB flash
  • Connectivity
    • Wired – 10/100M Fast Ethernet
    • WLAN – 2.4 GHz 802.11b/g/n WiFi 4 @ up to 300 Mbps
    • LPWAN
      • R11e-LoRa8 LoRa MiniPCIe card working in 863-870 MHz frequency band for Europe, Russia, India, etc…
      • LoRa TX Power – Up to 20dBm
      • Lora Sensitivity – -137dB @ SF12
      • Supported LoRa devices – Class A and C
      • LoRa Antenna – 2dBi internal PCB antenna plus optional MikroTik LoRa Antenna kit for extra range/coverage.
    • Cellular – SIM card slot (no other documentation available at this stage)
  • Misc – PCB temperature monitor, Voltage Monitor
  • Power Supply – 9-30V DC via DC jack, 4-pin automotive connector, or passive PoE input
  • Max power consumption – 7 Watts
  • Dimensions – 185 x 85 x 30 mm
  • Temperature Range – -40°C to 60°C
  • Certifications – CE/RED, FCC, IC, EAC, ROHS
  • IP protection – IP54
MicroTik wAP LoRa8 Kit Board
Source: Tinkerman

The device runs MikroTik RouterOS, License level 4 meaning it supports up to 200 hotspot clients among other features. The gateway ships with a getting started manual, a PoE injector, a 24V/800mA switching power supply, a desk stand, an outdoor bracket, screws, a hose clamp with a wall template, a 4-wire cable for the automotive connector.

I found out about the product launch as the company organized a workshop at The Things Conference 2020, and gave away samples to attendees. One of those attendees was Tinkerman (Xose Pérez) and he wrote a long post about his experience with the hardware and software including RouterOS interface, integration with TTN, and MikroTik Android app.

Xose mentions the kit costs 200 Euros, so I suppose that includes VAT and maybe other taxes or shipping fees, as the suggested price for the router is $169 on the LoRa products page. If you check the individual pages, you’ll also find documentation and RouterOS download link.
