ESP32 JTAG Debugging can be done through a MicroSD Card Socket

Found in most microcontrollers and processors, JTAG is an industry standard for verifying designs and testing printed circuit boards after manufacture, and that is also often used for low-level debugging or reverse-engineering.

Espressif ESP32 also has a JTAG interface, but interestingly it’s shared with the SD card interface, and in ESP32 LyRaT audio development board where both MicroSD card slot and JTAG header are present selection is made by jumpers.

ESP32 shared SD card & JTAG signals

The extract from ESP32 LyRaT schematics above shows IO’s 12, 13, 14 and 15 can present on the SD card and 4-pin JTAG header. Some boards may not come with a JTAG header but may feature a MicroSD card slot, but you don’t have to solder wires to the board to access JTAG, and instead, you could simply use a custom MicroSD card adapter to insert into the MicroSD card socket of the board and access JTAG as explained by cibomahto on Twitter.

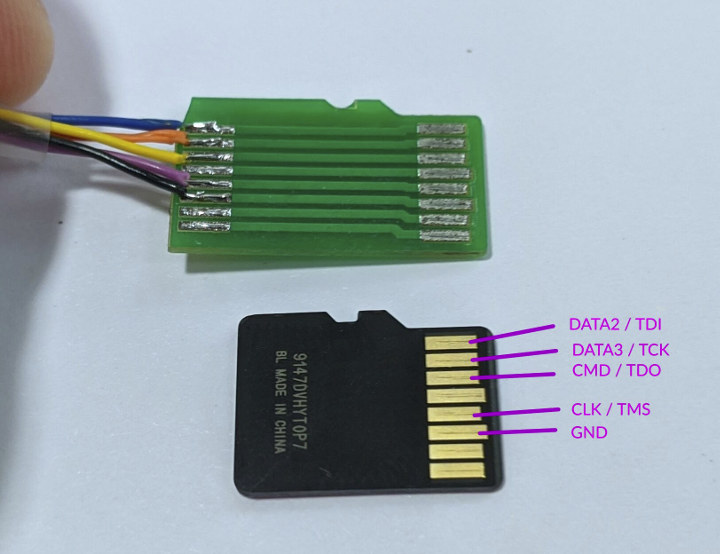

ESP32 JTAG MicroSD Card Adapter

Nice little hardware trick! The photo below shows what it looks like when an ESP32 board is connected to a “JTAG debugger” (actually ESP32-Ethernet-Kit development board with FTDI chip). If your board comes with a full-sized SD card socket using a standard MicroSD to SD adapter should work too.

ESP32 JTAG via Micro SD Card
Click to Enlarge

Reading comments on Twitter also informs use ESP32 is not the first platform with this trick, as (some?) Allwinner processors also route JTAG signals via the SD card interface.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
15 Comments
oldest
newest
dimtass
dimtass
4 years ago

I think that this step doesn’t really matter anymore since (as the author of the original post said) ESP32 is pwn forever.

https://limitedresults.com/2019/11/pwn-the-esp32-forever-flash-encryption-and-sec-boot-keys-extraction/

Lembitu Ling
4 years ago

Actually EspressIF patched the vulnerability in ESP32-D0WD-V3 chips and the related ESP32-WROVER-E module. But yes, all older chips are pwned. So the “forever” part is subjective 🙂

dimtass
dimtass
4 years ago

As you’ve written, this stands for the new chips only. Therefore, the authors claim is not wrong and it means that the affected chips cannot be fixed, so they’ll have this issue permanently.

That doesn’t include other HW and it’s great that it got fixed and it was pity for the damages that the company had because of the previous affected versions.

guest
guest
4 years ago

You can get these on AliExpress for $5. Has JTAG and serial console breakouts. Look for ‘uSD breakout board’.
Serrial console works for AllWinner (RX/TX = D3/CLK) and Amlogic (RX/TX = D2/D3), too. Dunno about JTAG.
This is what these breakout boards look like: https://linux-sunxi.org/MicroSD_Breakout

Peter
Peter
4 years ago

Amlogic also have official SDIO debug board which uses some secret sauce 🙂

comment image

Philipp Blum
4 years ago

Thanks. This is really interesting. I got some Allwinner Boards.

roel
roel
4 years ago

Where can you find such a custom MicroSD card adapter?

zoobab
4 years ago

“as (some?) Allwinner processors also route JTAG signals via the SD card interface.”

Remember the Allwinner A10 JTAG SD card breakout:

https://fr.aliexpress.com/item/527673076.html

Philipp Blum
4 years ago

Yeahh… “Sorry, this item is no longer available!”
Too many people bought it ^^ 😀

David Willmore
David Willmore
4 years ago

Don’t a bunch of allwinner tablets route the debugging UART to the micro-SD slot?

willy
willy
4 years ago

Another solution might consist in using HardKernel/FriendlyElec’s eMMC to uSD adapters and to either solder directly on the adapter or use a cable.

Ricky
4 years ago

the JTAG for microsd you can change the GB expansion example micro sd from 128gb and it changes to 512gb you can Sorry I’m new to these technologies but I’m curious to find out.

Khadas VIM4 SBC
