NVIDIA Jetson Nano Powered Edge AI System Supports one PoE Camera, Operates in -30 to +60°C Temperature Range

Axiomtek AIE100-903-FL is a fanless edge AI System powered by NVIDIA Jetson Nano system-on-module and designed to connect a single 15W PoE camera for AI computing, edge computing, smart retail, smart city, and more.

The solution can operate in a wide range of temperatures from -30°C to +60°C and comes with an optional IP42-rated waterproof cover kit that makes it suitable for use in moist places and “semi-outdoor environments”  including freezers and under eaves (edges of the roof which overhang the face of a wall) and other outdoor locations with some protection against rain.

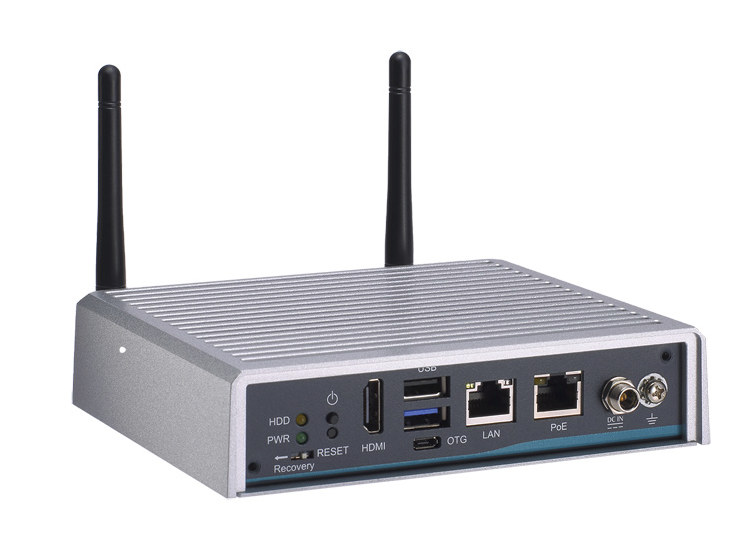

NVIDIA Jetson Nano PoE Camera edge AI systemAxiomtek AIE100-903-FL specifications:

  • SoM – NVIDIA Jetson Nano with quad-core Arm Cortex-A57 processors, 128 CUDA core NVIDIA Maxwell GPU, 4GB 64-bit LPDDR4 and 16GB eMMC flash
  • Storage – 1x M.2 Key M 2280 with PCIe x4 NVMe SSD slot, 1x Micro SD slot
  • Video Output – 1x HDMI 2.0 up to 4K2K @ 60 Hz
  • Connectivity
    • 1x Gigabit Ethernet port, 1x Gigabit Ethernet with 15W PoE via Intel i210-IT chip
    • Optional WiFi and Bluetooth connectivity via mPCIe card
    • Optional 4G LTE cellular connectivity via mPCIe card + on-board SIM slot
    • 2x SMA-type antenna connectors
  • USB – 1x USB 3.0, 1x USB 2.0, 1x Micro USB to flash firmware
  • Expansion – 1x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • Misc – Recovery switch, reset button, power button, watchdog timer
  • Power Supply – 12 VDC power input connector (screw type)
  • Dimensions – 147.4 x 129.8 x 34.6 mm  (Aluminum extrusion and heavy-duty steel, IP42)
  • Weight – 1 kg
  • Temperature Range – 30°C to +60°C
  • Relative Humidity – 10% – 95%, non-condensing
  • Vibration – 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
  • Certifications – CE, FCC Class A

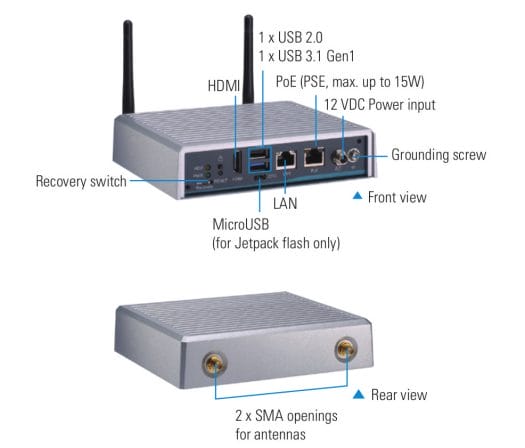

Axiomtek AIE100-903-FL edge AI system
Click to Enlarge

The Jetson Nano powered edge AI system supports various mounting methods with a wall mount kit, a DIN-rail kit, and a VESA mount kit. It ships with Ubuntu 18.04 “embedded OS”, and supports NVIDIA JetPack 4.3.1 SDK for the development for AI computing and deep learning applications such as people counting, behavior analysis, and facial recognition.

Axiomtek AIE100-903-FL edge AI system is “coming soon” at an undisclosed price. Further information may be found on the product page.
