TTGO T-Lite W5500 ESP32 WiFi & Bluetooth Board Comes with OLED Display, Optional Ethernet Add-on Board

TTGO T-Lite W5500 ESP32 Ethernet Board
Click to Enlarge

If you like tiny boards with Ethernet,  TTGO T-Lite W5500 development board may be an interesting option,  as the ESP32 board comes with a built-in OLED, and female headers to connect an Ethernet add-on board called W5500 Gateway Module.

LilyGO TTGO T-Lite W5500 specifications:

  • SoC – Espressif System ESP32 dual-core WiFi and Bluetooth SoC with 520KB SRAM
  • Storage – 4MB flash
  • Display – 0.96-inch OLED display (SSD1306 driver)
  • Connectivity
    • 802.11 b/g/n WiFi 4 up to 150 Mbps, and Bluetooth 5.x BR/LE via ESP32 SoC, on-board ceramic antenna or external antenna (selectable with a resistor?)
    • Optional Ethernet via SPI Ethernet board based on Wiznet W5500
  • USB – 1x USB Type-C port for power and programming via CP2104 USB to TTL chip
  • I/Os
    • 8+6 through holes with GPIOs, SPI, ADC, Touch, 5V, 3.3V, GND
    • Operating voltage – 2.7V-3.6V
  • Misc – Boot & Reset button, 40MHz crystal oscillator
  • Power Supply – 5V/1A via USB-C port
  • Temperature range – -40°C ~ +85°C
  • Dimensions – 29.5×23.8 mm
  • Weight – 4.5grams
  • Certifications – FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC for ESP32 chip, but maybe not for the board

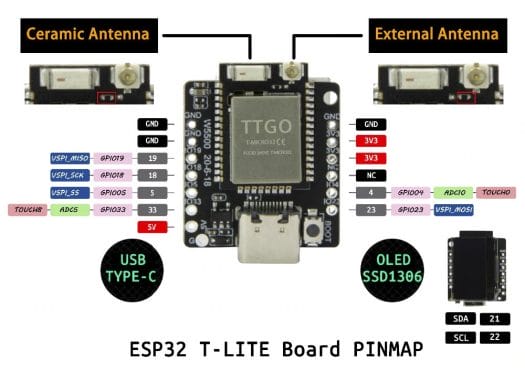

TTGO T-Lite W5500 Pinout Diagram
Click to Enlarge

You’ll find PDF schematics and Arduino client/server samples on Github. Note they had to modify the Ethernet library for Arduino for the Web server sample, so you’d have to copy libdeps directory from Github into the libraries directory of your Arduino IDE installation.

ESP32 T-Lite board is sold for $9.43 on Aliexpress with unsoldered female headers, and you’d need to add an extra $4.93 to get the Ethernet expansion board.

TTGO T-Lite W5500 ESP32 OLED Board
