TTGO T-Lite W5500 ESP32 WiFi & Bluetooth Board Comes with OLED Display, Optional Ethernet Add-on Board

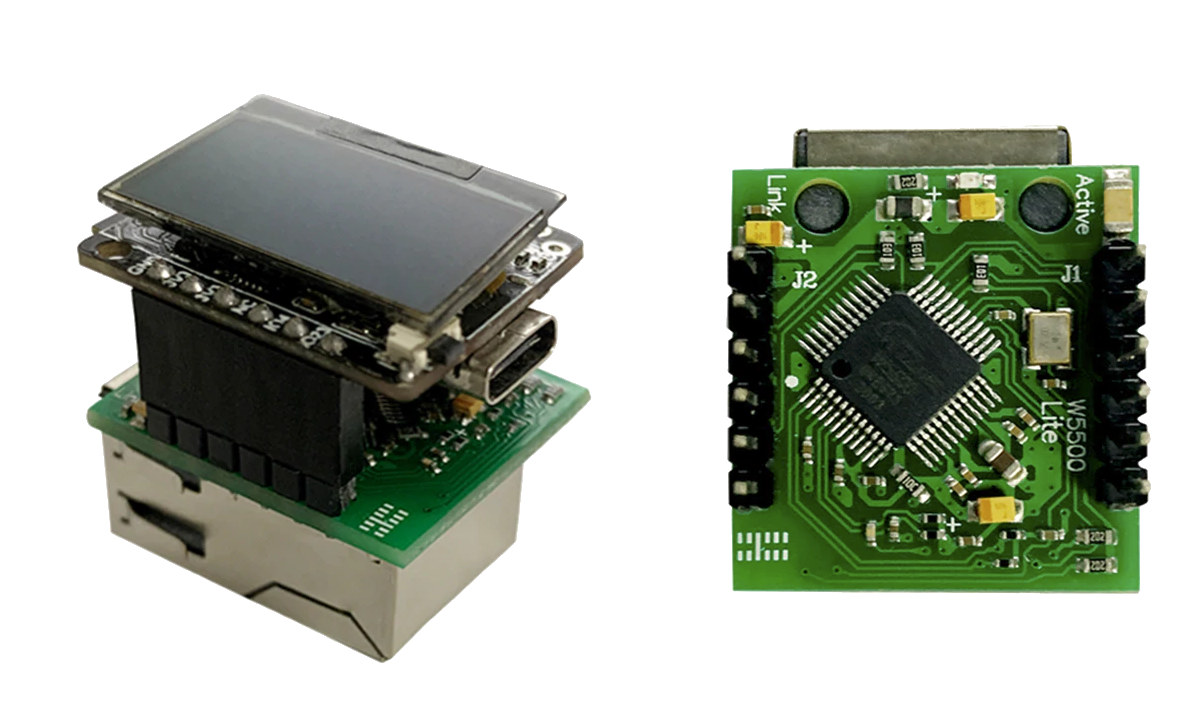

TTGO T-Lite W5500 ESP32 Ethernet Board
Click to Enlarge

If you like tiny boards with Ethernet,  TTGO T-Lite W5500 development board may be an interesting option,  as the ESP32 board comes with a built-in OLED, and female headers to connect an Ethernet add-on board called W5500 Gateway Module.

LilyGO TTGO T-Lite W5500 specifications:

  • SoC – Espressif System ESP32 dual-core WiFi and Bluetooth SoC with 520KB SRAM
  • Storage – 4MB flash
  • Display – 0.96-inch OLED display (SSD1306 driver)
  • Connectivity
    • 802.11 b/g/n WiFi 4 up to 150 Mbps, and Bluetooth 5.x BR/LE via ESP32 SoC, on-board ceramic antenna or external antenna (selectable with a resistor?)
    • Optional Ethernet via SPI Ethernet board based on Wiznet W5500
  • USB – 1x USB Type-C port for power and programming via CP2104 USB to TTL chip
  • I/Os
    • 8+6 through holes with GPIOs, SPI, ADC, Touch, 5V, 3.3V, GND
    • Operating voltage – 2.7V-3.6V
  • Misc – Boot & Reset button, 40MHz crystal oscillator
  • Power Supply – 5V/1A via USB-C port
  • Temperature range – -40°C ~ +85°C
  • Dimensions – 29.5×23.8 mm
  • Weight – 4.5grams
  • Certifications – FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC for ESP32 chip, but maybe not for the board
TTGO T-Lite W5500 Pinout Diagram
Click to Enlarge

You’ll find PDF schematics and Arduino client/server samples on Github. Note they had to modify the Ethernet library for Arduino for the Web server sample, so you’d have to copy libdeps directory from Github into the libraries directory of your Arduino IDE installation.

ESP32 T-Lite board is sold for $9.43 on Aliexpress with unsoldered female headers, and you’d need to add an extra $4.93 to get the Ethernet expansion board.

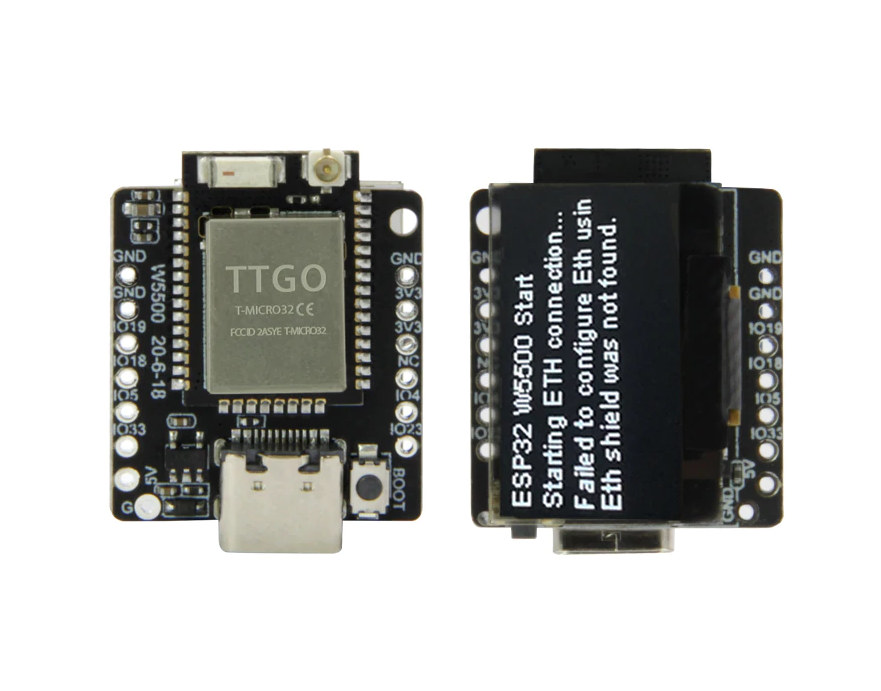

TTGO T-Lite W5500 ESP32 OLED Board

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

12 Replies to “TTGO T-Lite W5500 ESP32 WiFi & Bluetooth Board Comes with OLED Display, Optional Ethernet Add-on Board”

  1. @ CNX do not know if it is my browser but the recent comments seems stuck on tim and itchy Pi 4 posts?

    1. It’s not your browser, it happens to me quite often as well, so I don’t look at them anymore. Also post validation is sometimes very slow (10 seconds or more), there are definitely a few technical issues, but that’s off-topic for this post.

    2. Thanks for letting me know.I changed the cache plugin on Sunday, but I’m not sure if it’s related since it was not updated for me either and as an admin I don’t get served cached pages. Any it should be working now.

  2. So, they took a chip with an ethernet interface, didn’t use it, and added on an SPI connected one? For reasons?

    1. I suspect they did it to leave it as an option on GPIOs that can otherwise be repurposed for anything else. Actually they might have added the ethernet after the esp32 module was designed.
