Fanless Linux embedded system makes a compact IoT gateway

ICP Germany has recently introduced the MiTAC ME1-8MD series family of compact, fanless Linux embedded systems powered by NXP i.MX 8M processor and designed to be used as IoT gateways, data acquisition and processing systems, and mini servers.

Three models have been launched with a choice of dual or quad-core processors, up to 4GB LPDDR4 RAM, and 32GB eMMC flash storage. The embedded computers also come with up to two Ethernet ports, support up to two displays, and include an internal Raspberry Pi compatible 40 pin GPIO header.

Mitac ME1-108T Linux imx8mm embedded systemMiTAC ME1-8MD specifications and key features:

  • SoC – NXP i.MX 8M Dual or Quad with two or four Cortex-A53 @ 1.3GHz, Cortex-M4 MCU, Vivante GC7000 Lite GPU, and 4K video processing unit
  • System Memory – 1 to 4GB LPDDR4 800 Mhz RAM
  • Storage – 8, 16, or 32GB eMMC flash, 1x MicroSD card slot up to 256GB
  • Video Output
    • HDMI 2.0
    • Optional DisplayPort 1.2
  • Audio – Realtek ALC5660 audio codec, but no audio ports are visible on the device.
  • Connectivity
    • Up to two Gigabit Ethernet via Realtek RTL8111H and/or Realtek RTL8211FD
    • Optional WiFi/Bluetooth via mini PCIe socket
    • Optiona 4G LTE via mini PCie socket and SIM card slot (multiplexed with MicroSD slot)
    • 2x SMA antennas (optional for WiFi / LTE function)
  • USB – 2x USB 3.0 port, 1x USB 2.0
  • Serial – Optional 1x RS232/422/485 DB-9 port
  • Expansion
    • Mini PCIe full/half-size socket with PCIe and USB signals
    • 10-pin GPIO terminal block with 4x DI, 4x DO, 5V, and GND signals
  • Misc – Power Button, Power LED
  • Power Supply – 12V/3A via 3-pin terminal block
  • Dimensions – 140 x 100 x 38.75mm (Sheet metal enclosure)
  • Temperature Range – Operating: 0 ~ 55°C; storage: -20 ~ 70°C
  • Humidity – Operating: 10% ~ 90% R/H (Non-condensing); storage: 10% ~ 95% @ 85°C non-condensing
  • Certifications – CE / FCC Class B

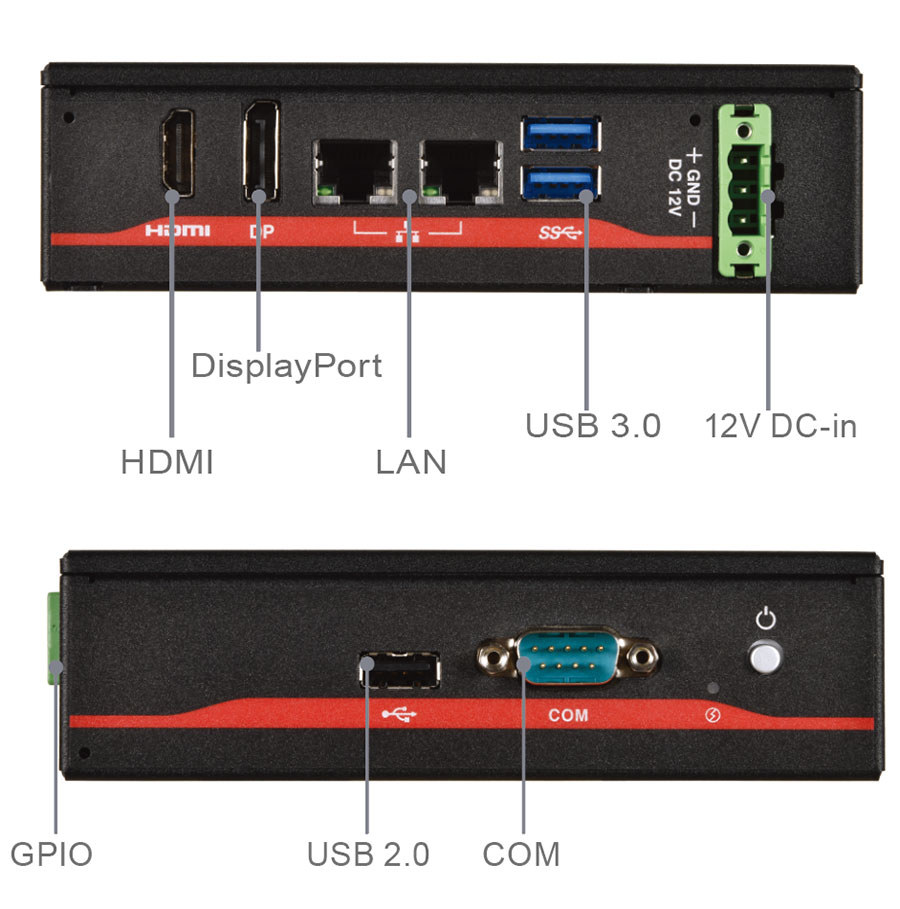

Fanless industrial embedded systemBy default, the mini PC ships with wall mount brackets, a 10-pin terminal block male plug, and a quick installation guide. Three standard models are available as listed in the table below, where we can see only ME1-8MQ-4G32G model comes with i.MX 8M Quad processor, DisplayPort output, two Gigabit Ethernet ports, and the COM port.

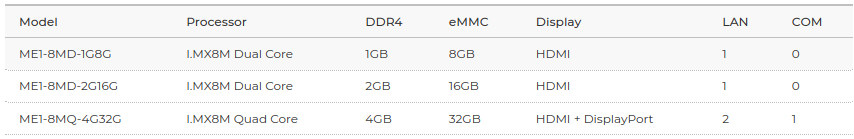

Mitac-ME1-108T product matrix

MiTAC provides Yocto Sumo and Android 9 Pie BSP’s both based on Linux 4.14.98. While there’s a Raspberry Pi header on the single board computers inside the device, it’s unclear how customers can make use of it with this system.

MiTAC ME1-108T fanless embedded system is available on ICP Germany, but you’d have to register and login to request pricing. Additional information may be found on the product page.

Via LinuxGizmos

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

2 Replies to “Fanless Linux embedded system makes a compact IoT gateway”

    1. I’ve finally removed industrial from the text, as this may be confusing.
      AFAICS, there are multiple use of the word “industrial”:

      1. Here, I used industrial as opposed to “consumer”.
      2. Industrial may also refers to the temperature range (-40 to 85C)
      3. Some industrial systems require higher or variable power input (but not all)
      4. Some others may need higher voltage DI or DO
